CHASSIS AND SEAT Star, Sprint and Sprint E/S (4912721272001A)

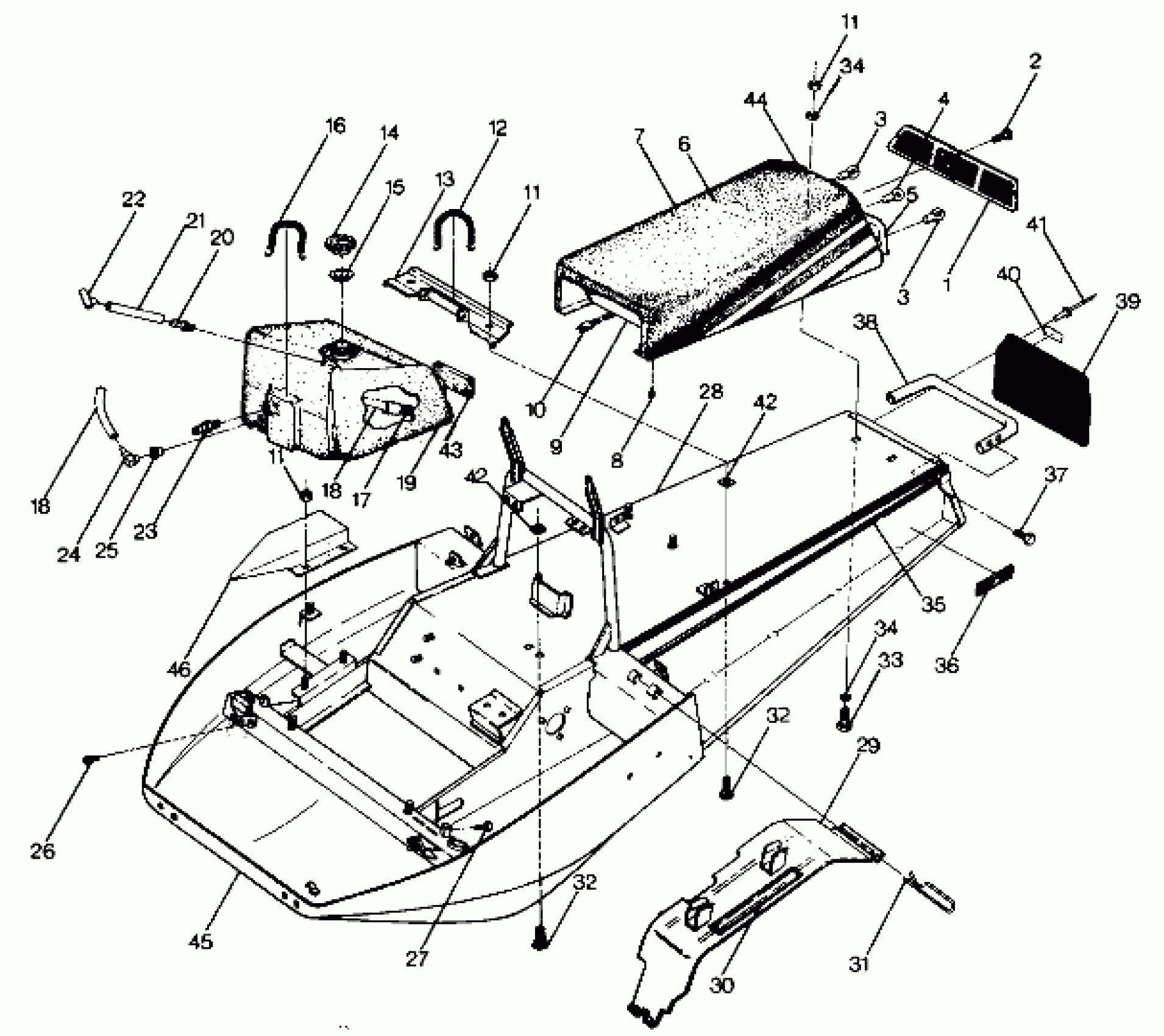

Polaris NOR SPRINT - N870933 CHASSIS AND SEAT Star, Sprint and Sprint E/S (4912721272001A) Diagram
#
1
LENS,TAILLIGHT
5430423
Unavailable
2
SCREW(10)
7511840
Unavailable
3
BULB TAILLIGHT(10)
4030015
$4.03
3
BULB TAILLIGHT(10)
4030015
$4.03
4
BULB, BRAKELIGHT
4030019
Unavailable
5
HOUSING,TAILLIGHT
5430425
Unavailable
6
SEAT ASM,(STAR&EXPLORER) [No Longer Available] (Incl. 1-5, 7-10) (Star)
2681268
Unavailable
6
SEAT ASM,(SPRINT) [No Longer Available] 37
2681270
Unavailable
7
COVER,SEAT,(STAR&EXPLORER) [No Longer Available] (Star)
2681269
Unavailable
7
COVER,SEAT,(SPRINT) [No Longer Available] (Sprint, Sprint ES)
2681271
Unavailable
8
SCREW(10) [No Longer Available]
7522008
Unavailable
9
INSERT-SEAT [No Longer Available]
5430618
Unavailable
10
HARNESS-TAILLIGHT Substituted by 2460399
2460226
Unavailable
11
NUT-LOCK(10) (STAR)
7542122
$1.49
11
NUT-LOCK(10) (STAR)
7542122
$1.49
11
NUT-LOCK(10) (STAR)
7542122
$1.49
12
SPRING,TANK,(10)
7042020
$13.75
13
STRAP-GAS TANK [No Longer Available]
5220271
Unavailable
14
CAP, GAS, (BLACK)
5430725
$24.27
15
GASKET-GAS CAP
5810144
$5.59
16
SPRING-TANK [No Longer Available]
7042021
Unavailable
17
FUELPICKUP,W/STRAINER
7052037
$12.94
18
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
18
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
19
TANK-GAS W.GAUGE [No Longer Available] (Incl. 17, 18, 20-25)
2511145
Unavailable
20
VENT FITTING,TANK Substituted by 5430579
5430669
Unavailable
21
KIT-TANK VENT Substituted by 2200190
5420153
Unavailable
22
TEE-FUEL
7052035
Unavailable
23
FITTING - OUTLET(10)
7052023
$24.99
24
FITTING-TANK (Incl. 25)
7052036
Unavailable
25
GROMMET-TANK FITTING(10)
7052028
$6.39
26
FITTING-LUBE.(10) Substituted by 7080561
7080220
$4.76
27
SCREW(10)
7512497
Unavailable
28
BODY WELD Substituted by 1011668 (Incl. 45) (STAR)
1011506
Unavailable
28
CHASSIS Substituted by 1011670 31
1011507
Unavailable
29
GUARD-CLUTCH (Sprint, Sprint ES)
1011442
Unavailable
29
GUARD, CLUTCH [No Longer Available] (STAR)
1011491
Unavailable
30
DECAL, WARNING [No Longer Available]
7072086
Unavailable
31
PIN,RETAINING,(10)
7080216
$9.70
32
BOLT(10)
7512193
$2.39
32
BOLT(10)
7512193
$2.39
33
BOLT(10)
7512103
$3.19
34
WASHER,WROUGHT(10)
7558302
$1.59
34
WASHER,WROUGHT(10)
7558302
$1.59
35
DECAL(47.5'')TUNNEL Substituted by 7072078
7071998
Unavailable
36
REFLECTOR RED
2670070
$9.91
37
SCREW(10)
7512252
Unavailable
38
BUMPER-REAR [No Longer Available]
5224228
Unavailable
39
FLAP, SNOW,SILVER Substituted by 5410394-1106
5410394
$121.02
40
DECAL, TRACK [No Longer Available] (STAR)
7072090
Unavailable
40
DECAL-TRACK WARNING [No Longer Available] (Sprint, Sprint ES)
7071859
Unavailable
41
RIVET(50)
7621457
$1.49
42
SPEED NUT(10)
7670021
$6.99
42
SPEED NUT(10)
7670021
$6.99
43
PAD, GAS TANK [No Longer Available]
5810271
Unavailable
44
BUCKLE&STRAP
2681292
Unavailable
45
NOSEPAN [No Longer Available]
1011484
Unavailable
46
SHIELD (Sprint, Sprint ES)
5220401
Unavailable
