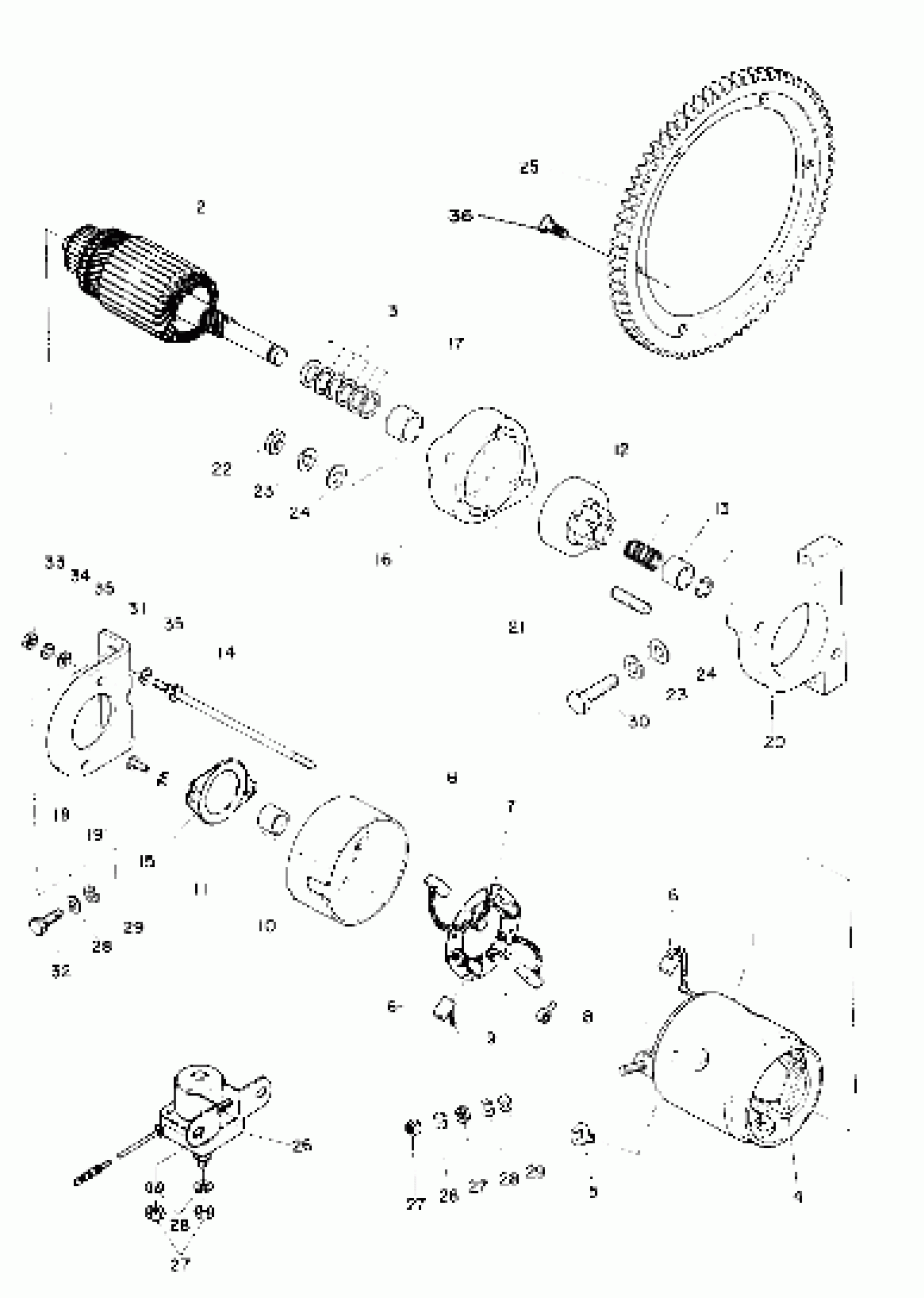

Polaris NOR SPRINT - N860933 Starter (Sprint ES) (4910961096023A) Diagram
#
1
MOTOR-STARTER (Incl. 2-19, 27-29)
3083189
Unavailable
2
ARMATURE ASM Substituted by 3084115
3083190
Unavailable
3
KIT-WASHER
3083191
Unavailable
4
COIL-FIELD (Incl. 5, 6)
3083192
Unavailable
5
SCREW-POLE CORE SET
3083193
Unavailable
6
BRUSH, (+) (+)
3083194
Unavailable
6
BRUSH, (+) (+)
3083194
Unavailable
7
HOLDER ASM,BRUSH (Incl. 8, 9)
3083195
Unavailable
8
BRUSH, (-) (-)
3083196
Unavailable
8
BRUSH, (-) (-)
3083196
Unavailable
9
SPRING-BRUSH
3083197
Unavailable
10
COVER ASM-REAR (Incl. 11)
3083198
Unavailable
11
COVER-REAR METAL
3083199
Unavailable
12
PINION ASM
3083201
Unavailable
13
SET-PINION STOPPER Substituted by 3084116
3083202
Unavailable
14
BOLT-THROUGH
3083203
Unavailable
15
COVER-DUST
3083204
Unavailable
16
COVER ASM-FRONT. (Incl. 17)
3083205
Unavailable
17
BUSHING,METAL,FRONT
3083206
Unavailable
18
SCREW
3083207
Unavailable
19
WASHER-SPRING(10)
3083208
Unavailable
20
BRACKET
3083535
Unavailable
21
STUD
3083210
Unavailable
22
NUT Substituted by 3081086
3080048
Unavailable
23
WASHER LOCK ,(10)
3080530
$3.19
23
WASHER LOCK ,(10)
3080530
$3.19
24
WASHER(10)
3080142
$3.99
24
WASHER(10)
3080142
$3.99
25
GEAR, RING
3083075
Unavailable
26
SWITCH-MAGNETIC Substituted by 3085521 (Incl. 27, 28)
3083211
Unavailable
27
NUT(10)
3082939
Unavailable
27
NUT(10)
3082939
Unavailable
27
NUT(10)
3082939
Unavailable
28
WASHER SPRING(10)
3080077
$2.39
28
WASHER SPRING(10)
3080077
$2.39
28
WASHER SPRING(10)
3080077
$2.39
28
WASHER SPRING(10)
3080077
$2.39
29
WASHER(10)
3080078
Unavailable
29
WASHER(10)
3080078
Unavailable
30
BOLT
3083229
Unavailable
31
BRACKET #1
3083213
$22.23
32
BOLT(10) [No Longer Available]
3083214
Unavailable
33
NUT(10)
3083042
Unavailable
34
WASHER SPRING(10)
3083133
Unavailable
35
WASHER Substituted by 3083774
3083134
Unavailable
35
WASHER Substituted by 3083774
3083134
Unavailable
36
SCREW(10)
7515314
Unavailable
