Description

Price

-

RECOIL STARTER (Incl. 1-10

3083588

Unavailable

1

CASE, STARTER

3083589

$148.79

2

Spring, Spiral

3083376

$179.11

3

REEL, REWIND

3083377

$56.65

4

Ratchet

3083378

$20.22

5

Spring, Return

3083463

$4.03

6

Spring, Friction

3083379

$24.27

7

Plate, Friction

3083464

$28.32

8

NUT, FLANGE ,(10)

3083381

$2.99

9

GUIDE-ROPE

3083107

Unavailable

10

ROPE,100 FT,NYL.STARTER (Bulk - Cut to Fit)

2870621

$34.99

11

PULLEY-STARTING

3083108

$29.52

12

BOLT&WASHER Substituted by 3083729

3083217

Unavailable

13

BOLT,(10)

3081665

$3.19

14

Clamp

3083590

$3.99

15

HOUSING, BLOWER#2

3083591

$17.43

16

BOLT & WASHER

3081663

$1.49

17

BAFFLE, CYL.#1

3083592

Unavailable

18

BAFFLE, CYL.#2

3083593

$36.31

19

BAFFLE, CYL.#3

3083594

Unavailable

20

GASKET, INTAKE Substituted by 3085846

3083595

Unavailable

21

BOLT & WASHER(10)

3083041

Unavailable

21

BOLT & WASHER(10)

3083041

Unavailable

21

BOLT & WASHER(10)

3083041

Unavailable

21

BOLT & WASHER(10)

3083041

Unavailable

21

BOLT & WASHER(10)

3083041

Unavailable

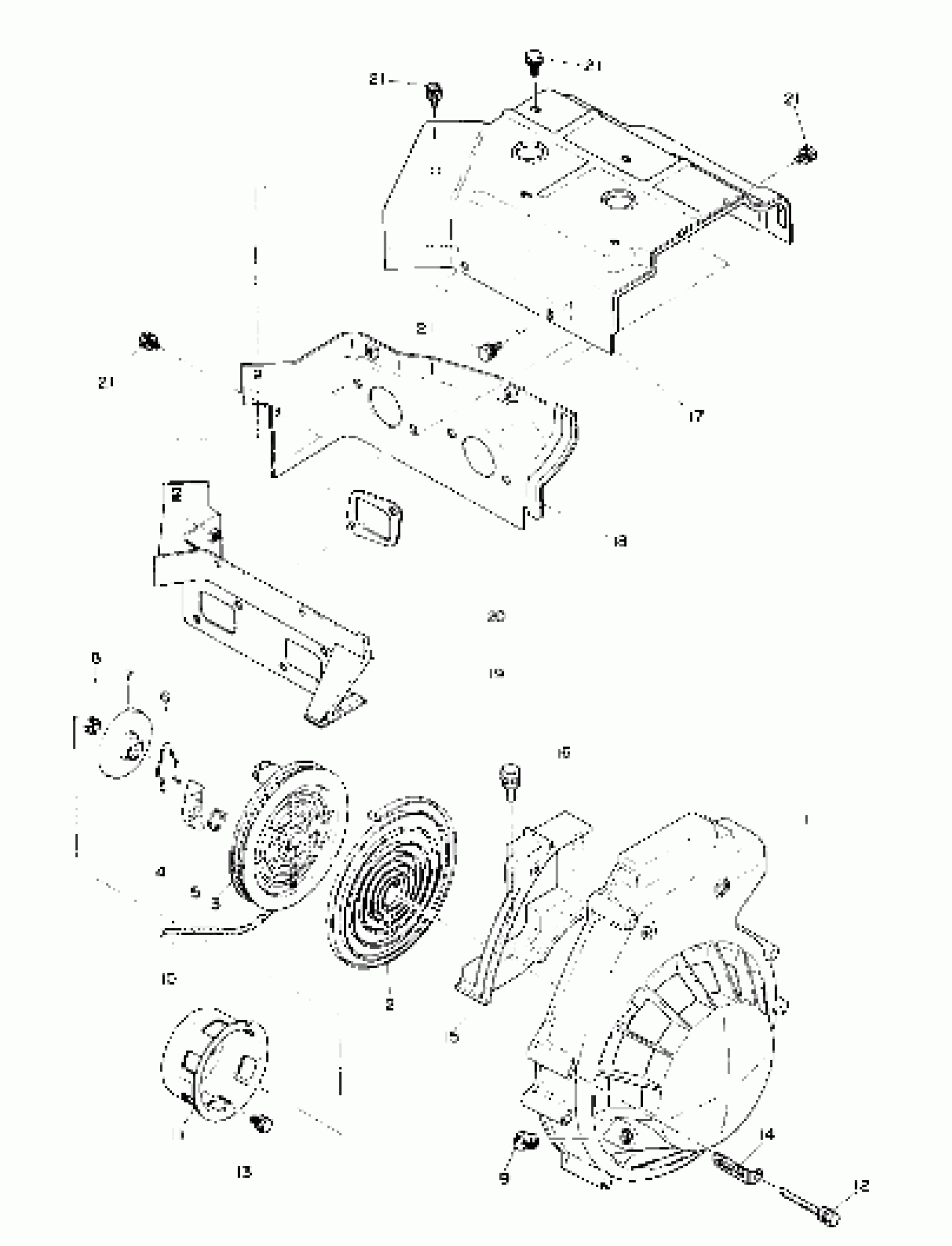

Polaris NOR SPRINT - N860933 Recoil Starter and Blower Housing (4910961096019A) Diagram

RECOIL STARTER (Incl. 1-10

CASE, STARTER

Spring, Spiral

REEL, REWIND

Ratchet

Spring, Return

Spring, Friction

Plate, Friction

NUT, FLANGE ,(10)

GUIDE-ROPE

ROPE,100 FT,NYL.STARTER (Bulk - Cut to Fit)

PULLEY-STARTING

BOLT&WASHER Substituted by 3083729

BOLT,(10)

Clamp

HOUSING, BLOWER#2

BOLT & WASHER

BAFFLE, CYL.#1

BAFFLE, CYL.#2

BAFFLE, CYL.#3

GASKET, INTAKE Substituted by 3085846

BOLT & WASHER(10)

BOLT & WASHER(10)

BOLT & WASHER(10)

BOLT & WASHER(10)

BOLT & WASHER(10)
