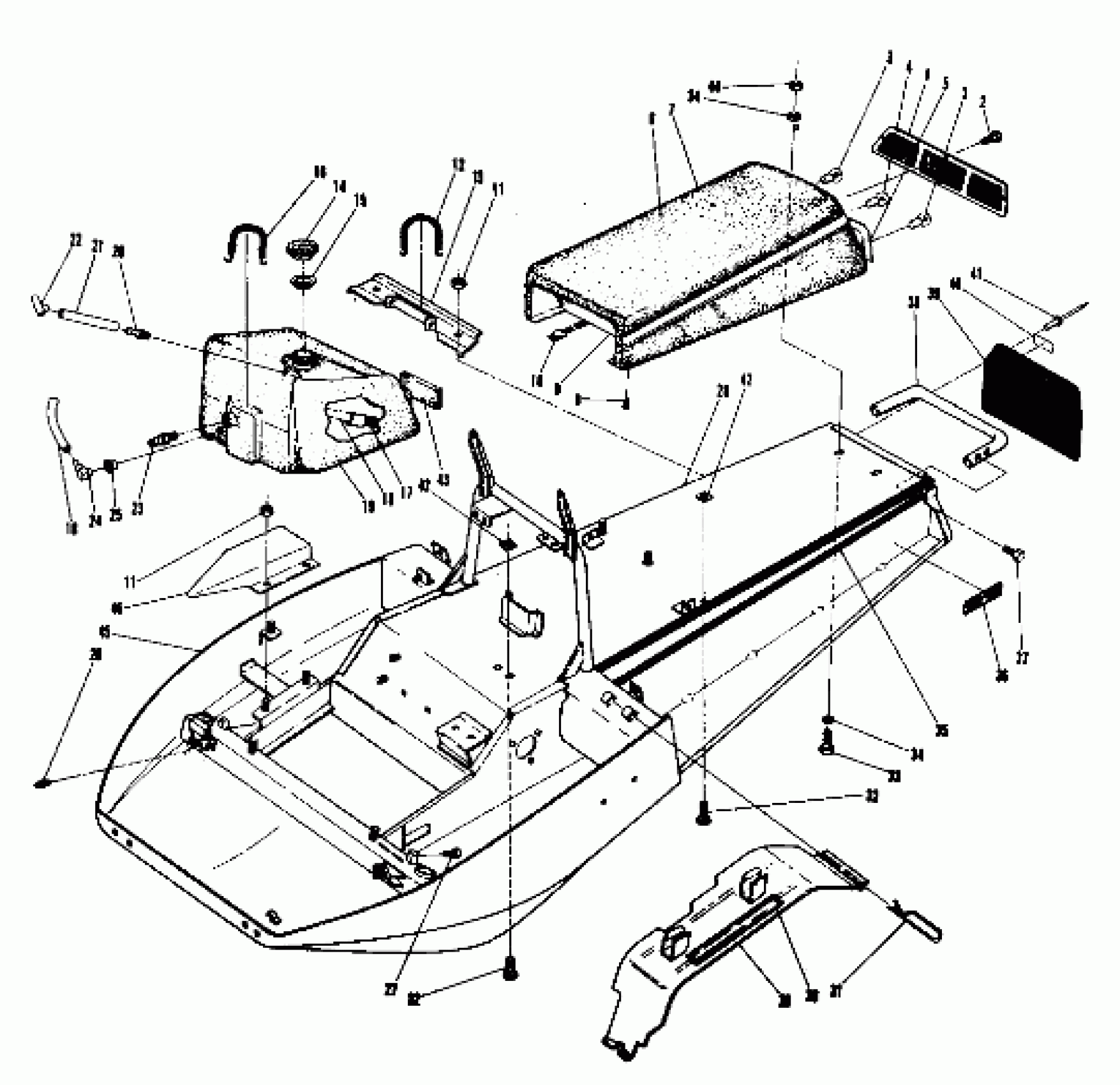

Polaris NOR SPRINT - N860933 Chassis and Seat (4910961096001A) Diagram
#
1
LENS,TAILLIGHT
5430423
Unavailable
2
SCREW(10)
7511840
Unavailable
3
BULB TAILLIGHT(10)
4030015
$4.03
3
BULB TAILLIGHT(10)
4030015
$4.03
4
BULB, BRAKELIGHT
4030019
Unavailable
5
HOUSING,TAILLIGHT
5430425
Unavailable
6
SEAT ASM, STARTWIN [No Longer Available] (Incl. 1-5, 7-10)
2681244
Unavailable
7
COVER, SEAT,STARTWIN [No Longer Available]
2681245
Unavailable
8
SCREW(10) [No Longer Available]
7522008
Unavailable
9
INSERT-SEAT [No Longer Available]
5430618
Unavailable
10
HARNESS-TAILLIGHT Substituted by 2460399
2460226
Unavailable
11
NUT-LOCK(10)
7542122
$1.49
11
NUT-LOCK(10)
7542122
$1.49
12
SPRING,TANK,(10)
7042020
$13.75
13
STRAP-GAS TANK [No Longer Available]
5220271
Unavailable
14
CAP-GAS (GOLD) Substituted by 5430725
5430672
$24.27
15
GASKET-GAS CAP
5810144
$5.59
16
SPRING-TANK [No Longer Available]
7042021
Unavailable
17
FUELPICKUP,W/STRAINER
7052037
$12.94
18
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
18
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
19
TANK-GAS W.GAUGE [No Longer Available] (Incl. 17, 18, 20-25)
2511145
Unavailable
20
VENT FITTING,TANK Substituted by 5430579
5430669
Unavailable
20
VENT FITTING,TANK Substituted by 5430579
5430669
Unavailable
21
KIT-TANK VENT Substituted by 2200190
5420153
Unavailable
22
TEE-FUEL
7052035
Unavailable
23
FITTING - OUTLET(10)
7052023
$24.99
24
FITTING-TANK (Incl. 25)
7052036
Unavailable
25
GROMMET-TANK FITTING(10)
7052028
$6.39
26
FITTING-LUBE.(10) Substituted by 7080561
7080220
$4.76
27
SCREW(10)
7512497
Unavailable
29
GUARD, CLUTCH [No Longer Available]
1011491
Unavailable
30
Desc not available [No Longer Available]
7071854
Unavailable
31
PIN,RETAINING,(10)
7080216
$9.70
32
BOLT(10)
7512193
$2.39
32
BOLT(10)
7512193
$2.39
33
BOLT(10)
7512103
$3.19
34
WASHER,WROUGHT(10)
7558302
$1.59
34
WASHER,WROUGHT(10)
7558302
$1.59
35
DECAL(47.5'')TUNNEL Substituted by 7072078
7071998
Unavailable
35
DECAL STRIPE,BRONZE&BLK.
8330061
Unavailable
36
REFLECTOR RED
2670070
$9.91
37
SCREW(10)
7512252
Unavailable
38
BUMPER-REAR [No Longer Available]
5224228
Unavailable
39
FLAP, SNOW, GOLD Substituted by 5410394
5410392
$121.02
40
DECAL-TRACK WARNING [No Longer Available]
7071859
Unavailable
41
RIVET(50)
7621457
$1.49
42
SPEED NUT(10)
7670021
$6.99
42
SPEED NUT(10)
7670021
$6.99
43
PAD, GAS TANK [No Longer Available]
5810271
Unavailable
45
NOSEPAN [No Longer Available]
1011484
Unavailable
46
SHIELD
5220401
Unavailable
