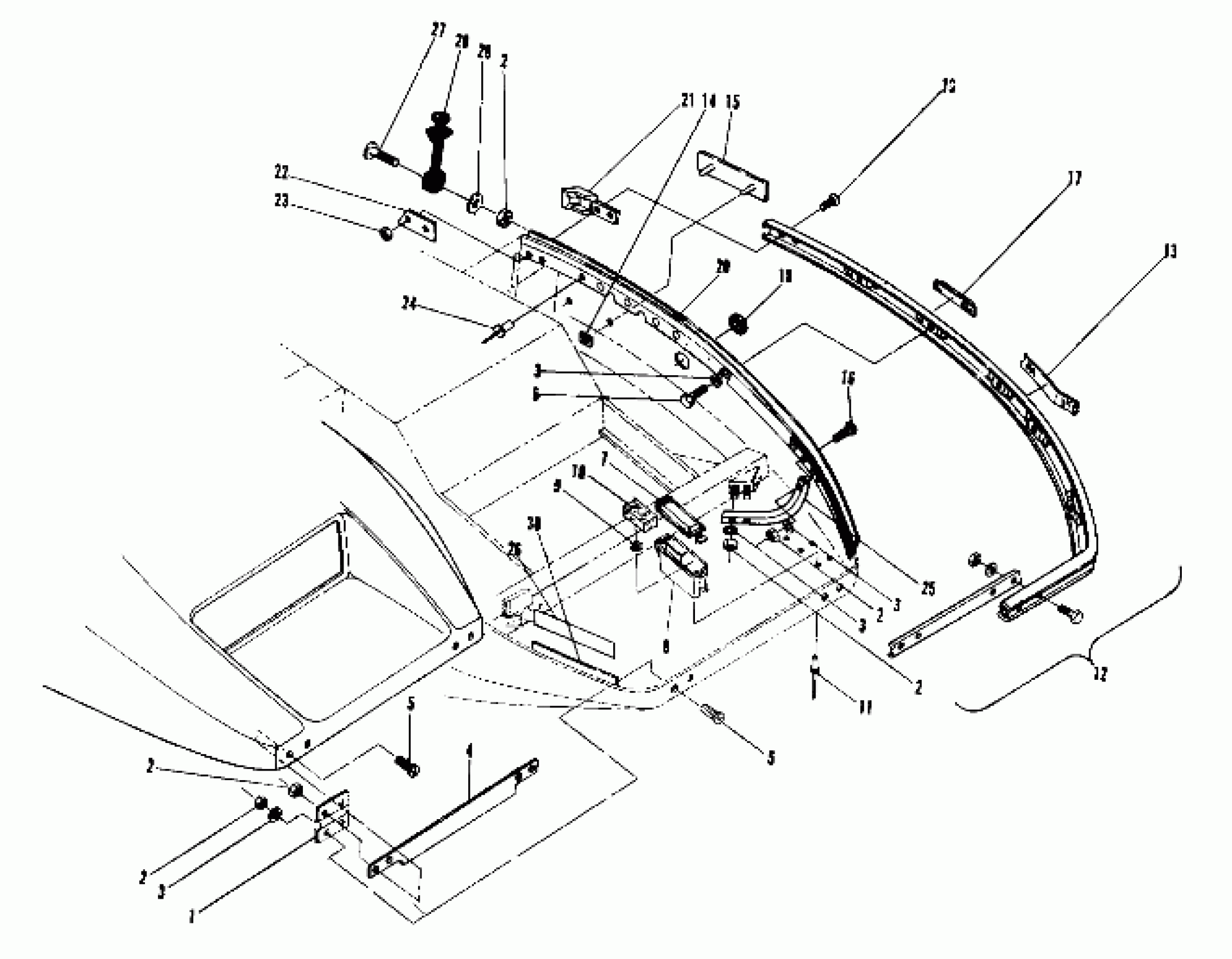

Polaris NOR SPRINT - N860933 Bumper and Hinge (4910961096003A) Diagram
#
Description
Price
1
HINGE,HOOD,BLK. Substituted by 5210925-067
5210925
Unavailable
2
NUT-LOCK(10)
7542122
$1.49
2
NUT-LOCK(10)
7542122
$1.49
2
NUT-LOCK(10)
7542122
$1.49
2
NUT-LOCK(10)
7542122
$1.49
2
NUT-LOCK(10)
7542122
$1.49
3
WASHER,WROUGHT(10)
7558302
$1.59
3
WASHER,WROUGHT(10)
7558302
$1.59
3
WASHER,WROUGHT(10)
7558302
$1.59
3
WASHER,WROUGHT(10)
7558302
$1.59
4
REINF-HD.HINGE [No Longer Available]
5220307
Unavailable
5
BOLT(10)
7512261
$4.99
5
BOLT(10)
7512261
$4.99
6
BOLT(10)
7512232
$1.49
7
COVER,TOOL BOX
5430719
$28.32
8
BOX-TOOL
5430716
$11.99
9
RIVET BURR(50)
7555727
$1.49
10
FOAM - TOOL BOX
5810266
Unavailable
11
RIVET, POP(50)
7621322
$0.56
12
BUMPER, FRONT (3PC)
2670082
Unavailable
13
DECAL STRIPE,BRONZE&BLK.
8330061
Unavailable
14
PALNUT(10)
7670009
$2.39
15
EMBLEM HOOD [No Longer Available]
5430685
Unavailable
16
BOLT-CARRIAGE(10)
7512275
$3.99
17
REFLECTOR AMBER
2670071
Unavailable
18
PLUG-CLUTCH HOLE [No Longer Available]
5430620
Unavailable
19
SCREW(10)
7511987
Unavailable
20
CRADLE, HOOD, LH [No Longer Available] (Shown)
5521136
Unavailable
20
CRADLE, HOOD RH (Not Shown)
5521137
Unavailable
21
END CAP-BUMPER(BLACK)
5430650
Unavailable
22
REINF-FOOT REST
5210929
Unavailable
23
NUT(10)
7541925
$1.49
24
RIVET(50)
7621431
$1.49
25
TUBING-PAN SUPPORT [No Longer Available]
5224225
Unavailable
26
FOIL TAPE [No Longer Available]
5810164
Unavailable
27
SCREW(10)
7512279
$1.49
28
STRAP, HOOD LATCH
5410370
$24.27
29
WASHER(10)
7558221
$2.39
30
SHIELD, HEAT, LH [No Longer Available] (Not Shown)
5223995
Unavailable
30
SHIELD, HEAT, RH (Shown)
5223994
Unavailable
