Fuel Tank(ZX900-B1)

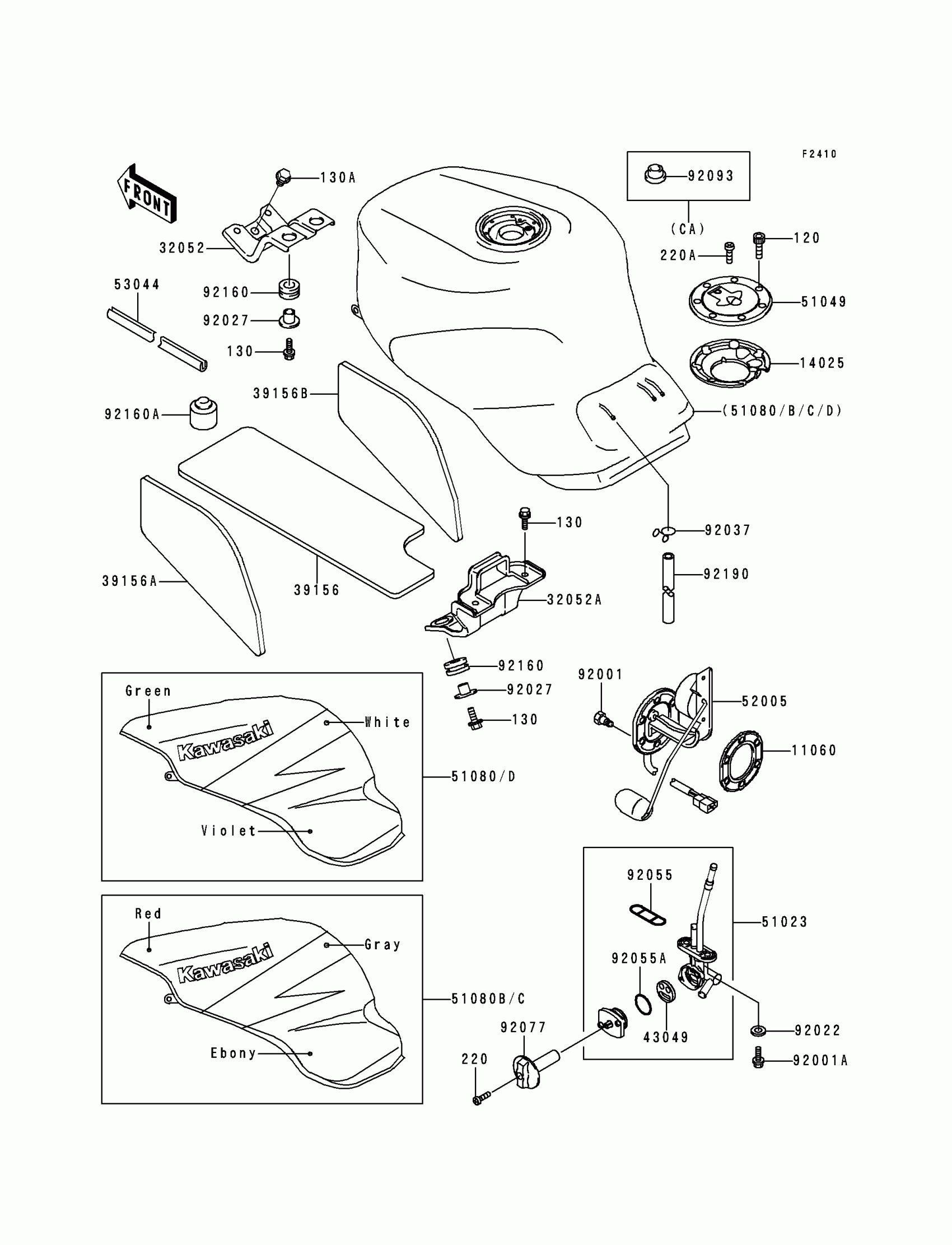

Kawasaki Ninja® ZX™-9R Fuel Tank(ZX900-B1) Diagram
#
11060
GASKET,FUEL GAUGE
11060-1337
$13.31
14025
COVER,TANK CAP
14025-1913
$21.55
32052
BRACKET-TANK,FR
32052-1386
Unavailable
32052A
BRACKET-TANK,RR
32052-1387
Unavailable
39156
PAD,FUEL TANK,FR
39156-1392
Unavailable
39156A
PAD,FUEL TANK,LH
39156-1394
Unavailable
39156B
PAD,FUEL TANK,RH
39156-1395
Unavailable
43049
PACKING,TAP VALVE
43049-1066
$7.26
51023
TAP-ASSY,FUEL
51023-1213
Unavailable
51049
CAP-TANK,FUEL
51049-1091
$115.45
52005
GAUGE,FUEL
52005-1108
Unavailable
53044
TRIM,WINDSHIELD
53044-1120
Unavailable
92001
BOLT,FUEL GAUGE
92001-1069
$7.24
92001A
BOLT,6X20
92001-1091
$3.92
92022
WASHER-PLAIN
92022-183
$3.92
92027
COLLAR,L=14.1
92027-1920
$6.57
120
BOLT-SOCKET,5X12
120S0512
$1.71
130
BOLT-FLANGED
130J0620
$0.43
130A
BOLT-FLANGED,8X12
130J0812
$0.67
220
SCREW-PAN-CROS,4X25,BLACK
220C0425
$2.00
220A
SCREW-PAN-CROSS
220C0508
$0.55
92037
CLAMP,TUBE
92037-147
$7.34
92055
RING-O,FUEL TAP PACKING
92055-1112
$5.00
92055A
RING-O,TAP LEVER
92055-1419
$5.00
92077
KNOB,FUEL TAP
92077-1115
$20.99
92160
DAMPER
92160-1162
$5.00
92160A
DAMPER
92160-1513
$7.40
92190
TUBE,5X10X720
92190-1552
$14.26
51080
TANK-COMP-FUEL,GREEN/WHITE/VIO
51080-5081-89
$1,158.68
51080B
TANK-COMP-FUEL,EBONY/GRAY/RED
51080-5083-91
$1,223.90
51080C
TANK-COMP-FUEL,EBONY/GRAY/RED
51080-5084-91
Unavailable
51080D
TANK-COMP-FUEL,GREEN/WHITE/VIO
51080-5087-89
$1,158.68
92093
SEAL,FUEL TANK CAP
92093-1030
$7.77
