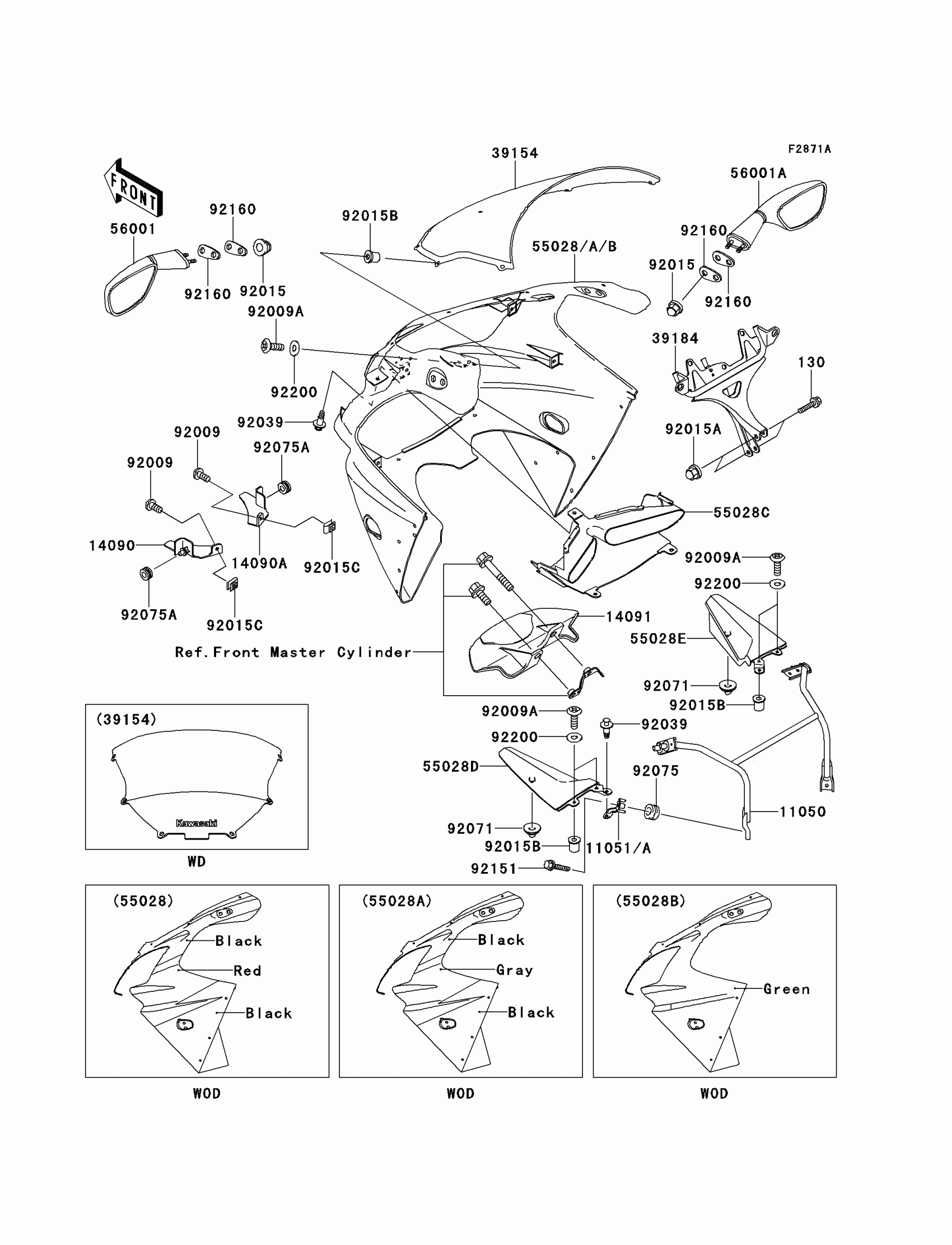

Kawasaki Ninja® ZX™-9R Cowling(ZX900-E2) Diagram

#

Description
Price

130

BOLT-FLANGED,8X30

130J0830

$4.15

11050

BRACKET,MIRROR

11050-1439

$163.99

11051

BRACKET,INNER COWLING

11051-1818

Unavailable

11051A

BRACKET,INNER COWLING

11051-1820

Unavailable

14090

COVER,RADIATOR,LH

14090-1950

$24.32

14090A

COVER,RADIATOR,RH

14090-1951

$24.32

14091

COVER,UNDER BRACKET

14091-1271

$27.84

39154

WINDSHIELD

39154-5012

Unavailable

39184

BRACKET-ASSY,MAIN

39184-1085

$317.33

55028B

COWLING,UPP,C.L.GREEN

55028-1386-8N

Unavailable

55028C

COWLING,DUCT,M.F.C.GRAY

55028-1387-3L

$98.53

55028D

COWLING,INNER,LH

55028-1388

$67.06

55028E

COWLING,INNER,RH

55028-1389

$54.00

56001

MIRROR-ASSY,LH

56001-1483

$117.69

56001A

MIRROR-ASSY,RH

56001-1484

$117.69

92009

SCREW,TAPPING,6X16

92009-1436

$3.16

92009A

SCREW,5X16

92009-1909

$2.03

92015

NUT,CAP,6MM,BLACK

92015-1170

$0.64

92015A

NUT,CAP,8MM,BLACK

92015-1174

$5.00

92015B

NUT,WELL,5MM

92015-1757

$7.29

92015C

NUT,6MM

92015-1758

$6.88

92039

RIVET

92039-1227

$1.81

92071

GROMMET

92071-1222

$6.55

92075

DAMPER,RUBBER

92075-1123

$5.00

92075A

DAMPER

92075-1912

$5.77

92151

BOLT,SOCKET,6X25

92151-1611

$2.34

92160

DAMPER,MIRROR

92160-1089

$7.29

92200

WASHER,NYLON,5.3X11.5X0.5

92200-1480

$1.59

55028

COWLING,UPP,RED/BLACK

55028-1386-QU

Unavailable

55028A

COWLING,UPP,GRAY/BLACK

55028-1386-6I

Unavailable
