Cowling(ZX900-E1)

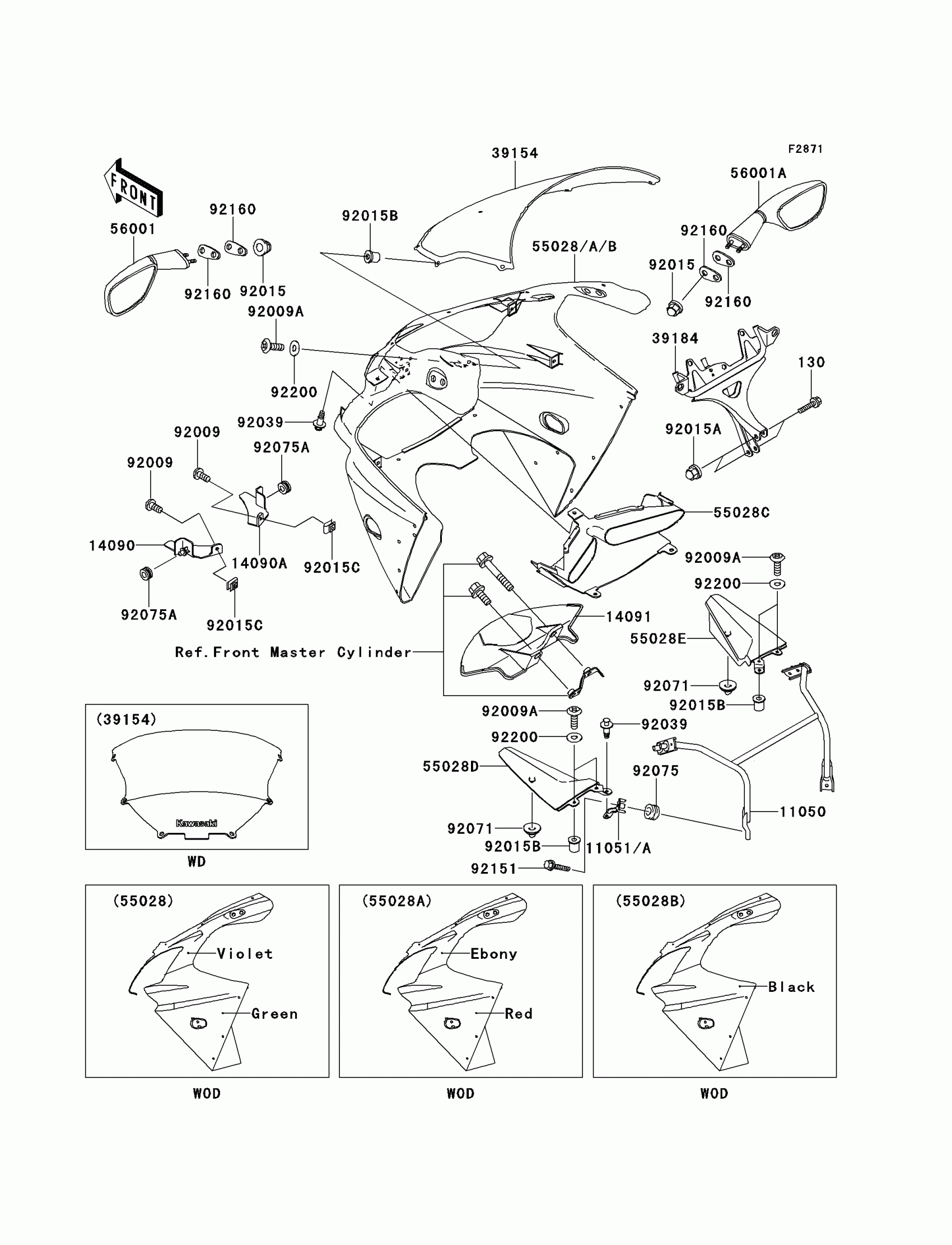

Kawasaki Ninja® ZX™-9R Cowling(ZX900-E1) Diagram
#
Description
Price
130
BOLT-FLANGED,8X30
130J0830
$4.15
11050
BRACKET,MIRROR
11050-1439
$163.99
11051
BRACKET,INNER COWLING
11051-1818
Unavailable
11051A
BRACKET,INNER COWLING
11051-1820
Unavailable
14090
COVER,RADIATOR,LH
14090-1950
$24.32
14090A
COVER,RADIATOR,RH
14090-1951
$24.32
14091
COVER,UNDER BRACKET
14091-1172
$27.84
39154
WINDSHIELD
39154-5012
Unavailable
39184
BRACKET-ASSY,MAIN
39184-1085
$317.33
55028
COWLING,UPP,GREEN/VIOLET
55028-1386-G9
$837.39
55028B
COWLING,UPP,P.P.BLACK MICA
55028-1386-20
$837.39
55028C
COWLING,DUCT,M.F.C.GRAY
55028-1387-3L
$98.53
55028D
COWLING,INNER,LH
55028-1388
$67.06
55028E
COWLING,INNER,RH
55028-1389
$54.00
56001
MIRROR-ASSY,LH
56001-1483
$117.69
56001A
MIRROR-ASSY,RH
56001-1484
$117.69
92009
SCREW,TAPPING,6X16
92009-1436
$3.16
92009A
SCREW,5X16
92009-1909
$2.03
92015
NUT,CAP,6MM,BLACK
92015-1170
$0.64
92015A
NUT,CAP,8MM,BLACK
92015-1174
$5.00
92015B
NUT,WELL,5MM
92015-1757
$7.29
92015C
NUT,6MM
92015-1758
$6.88
92039
RIVET
92039-1227
$1.81
92071
GROMMET
92071-1222
$6.55
92075
DAMPER,RUBBER
92075-1123
$5.00
92075A
DAMPER
92075-1912
$5.77
92151
BOLT,SOCKET,6X25
92151-1611
$2.34
92160
DAMPER,MIRROR
92160-1089
$7.29
92200
WASHER,NYLON,5.3X11.5X0.5
92200-1480
$1.59
55028A
COWLING,UPP,EBONY/RED
55028-1386-J3
Unavailable
