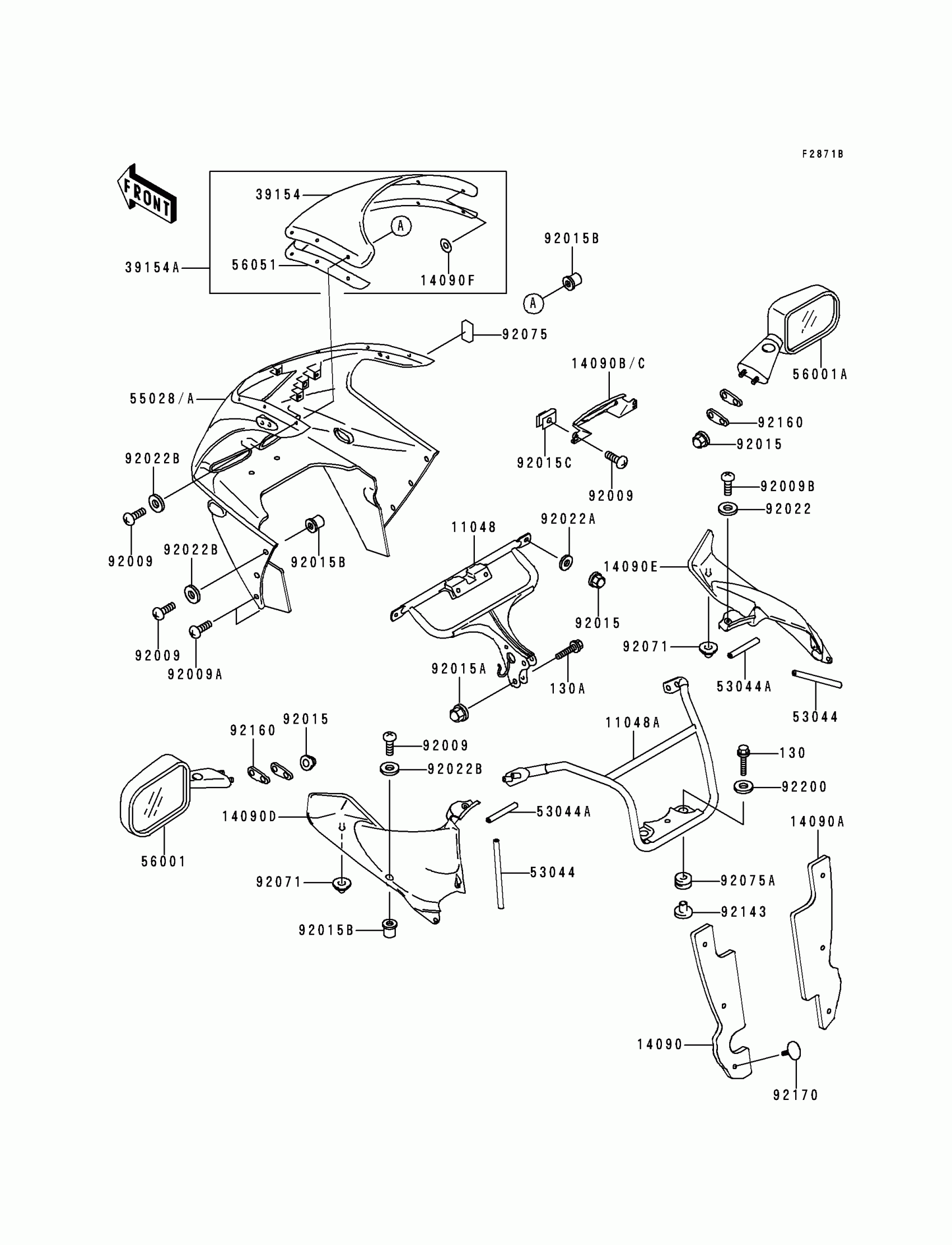

Kawasaki Ninja® ZX™-9R Cowling(ZX900-B3) Diagram

#

Description
Price

11048

BRACKET,UPP COWLING

11048-1847

Unavailable

11048A

BRACKET,MIRROR

11048-1961

$165.35

14090

COVER,HEAT GUARD,LH

14090-1385

Unavailable

14090A

COVER,HEAT GUARD,RH

14090-1386

Unavailable

14090B

COVER,POSITION LAMP,BLACK MICA

14090-1404-20

Unavailable

14090C

COVER,POSITION LAMP,L.GREEN

14090-1404-7F

$41.85

14090D

COVER,INNER COWLING,LH,GRAY

14090-1499-11

$208.37

14090E

COVER,INNER COWLING,RH,GRAY

14090-1500-11

Unavailable

14090F

COVER

14090-1505

Unavailable

39154

WINDSHIELD

39154-1124

$388.10

39154A

WINDSHIELD

39154-5005

$388.10

53044

TRIM

53044-1137

$10.65

53044A

TRIM,L=75

53044-1279

$9.50

55028

COWLING,UPP,BLACK MICA

55028-1314-20

Unavailable

55028A

COWLING,UPP,L.GREEN

55028-1314-7F

$921.96

56001

MIRROR-ASSY,LH,BLACK

56001-1441-10

$163.99

56001A

MIRROR-ASSY,RH,BLACK

56001-1442-10

$163.99

56051

MARK,WINDSHIELD

56051-1115

Unavailable

92009

SCREW,5X16,BLACK

92009-1654

$3.13

92009A

SCREW,5X20,BLACK

92009-1656

$3.96

92009B

SCREW,6X14

92009-1662

$3.92

92015

NUT,CAP,6MM,BLACK

92015-1170

$0.64

92015A

NUT,CAP,8MM,BLACK

92015-1174

$5.00

92015B

NUT,WELL,5MM

92015-1757

$7.29

92015C

NUT,5MM

92015-1798

$6.57

92022

WASHER,6.5X16X1

92022-1143

$3.92

92022A

WASHER,7X16X1.2

92022-1344

$3.92

92022B

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$3.92

92071

GROMMET

92071-1222

$6.55

92075

DAMPER

92075-1902

$5.23

92075A

DAMPER RUBBER,RR FENR

92075-209

$4.69

92143

COLLAR

92143-1515

$20.04

92160

DAMPER,MIRROR

92160-1089

$7.29

130

BOLT-FLANGED,6X30,BLACK

130J0630

$4.04

130A

BOLT-FLANGED,8X30

130J0830

$4.15

92170

CLAMP

92170-1442

$4.20

92200

WASHER,6.5X22X1.6

92200-1087

$3.94
