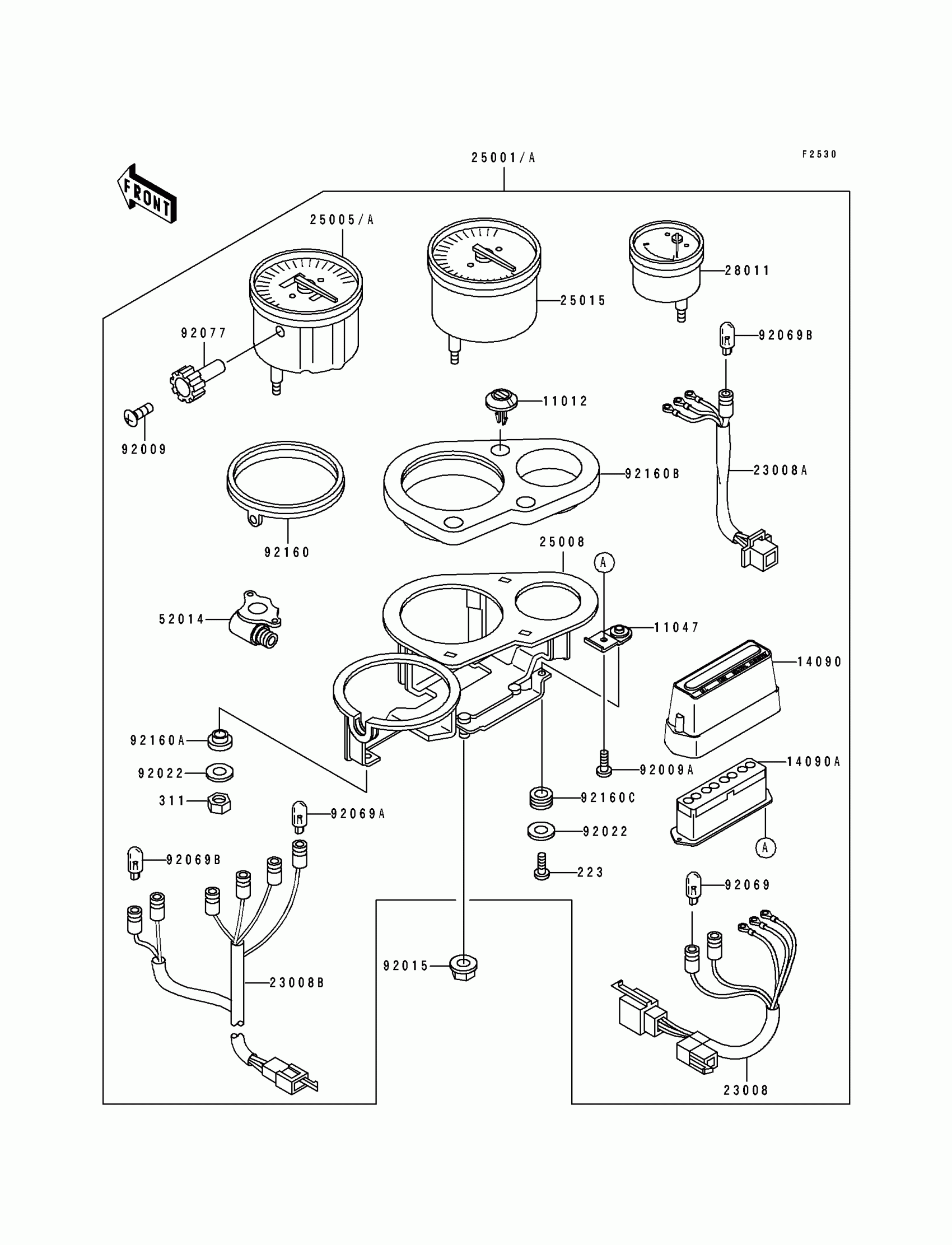

Kawasaki Ninja® ZX™-7R Meter Diagram
#
Description
Price
11012
CAP
11012-1779
Unavailable
11047
BRACKET,PILOT BOX
11047-1557
Unavailable
14090
COVER,PILOT BOX,UPP
14090-1072
Unavailable
14090A
COVER,PILOT BOX,LWR
14090-1073
Unavailable
23008
SOCKET-ASSY,TACHOMETER
23008-1386
Unavailable
23008A
SOCKET-ASSY,TEMP METER
23008-1388
Unavailable
23008B
SOCKET-ASSY,SPEEDOMETER
23008-1465
Unavailable
25001
METER-ASSY,MPH
25001-1835
$1,252.89
25001A
METER-ASSY,KPH
25001-1837
Unavailable
25005
SPEEDOMETER,MPH
25005-1471
$344.33
25005A
SPEEDOMETER,KPH
25005-1473
Unavailable
25008
BRACKET-METER
25008-1175
Unavailable
25015
TACHOMETER,X1000R/MIN
25015-1300
$416.75
28011
METER,TEMP
28011-1120
Unavailable
52014
ELBOW,SPEEDOMETER GEAR
52014-1006
Unavailable
92009
SCREW,2X6,BLACK
92009-1172
$2.61
92009A
SCREW,TAPPING,3X16
92009-1391
$3.65
92015
NUT,FLANGED,6MM,BLACK
92015-1233
$5.52
92022
WASHER,4.3X12.5X1
92022-1949
$3.60
92069
BULB,12V 3W,T7
92069-1020
$6.52
92069A
BULB,14V 3W,T6.5
92069-1068
$5.00
92069B
BULB,12V 1.7W,T6.5
92069-1070
$6.52
92077
KNOB,METER
92077-1073
$18.32
92160
DAMPER,SPEEDOMETER
92160-1064
$26.90
92160A
DAMPER
92160-1068
$7.55
92160B
DAMPER,TACHO&TEMP METER
92160-1274
Unavailable
92160C
DAMPER,PILOT BOX
92160-1320
Unavailable
223
SCREW-PAN-WS-CROS,4X6
223C0406
$3.85
311
NUT-HEX
311C0400
$0.62
