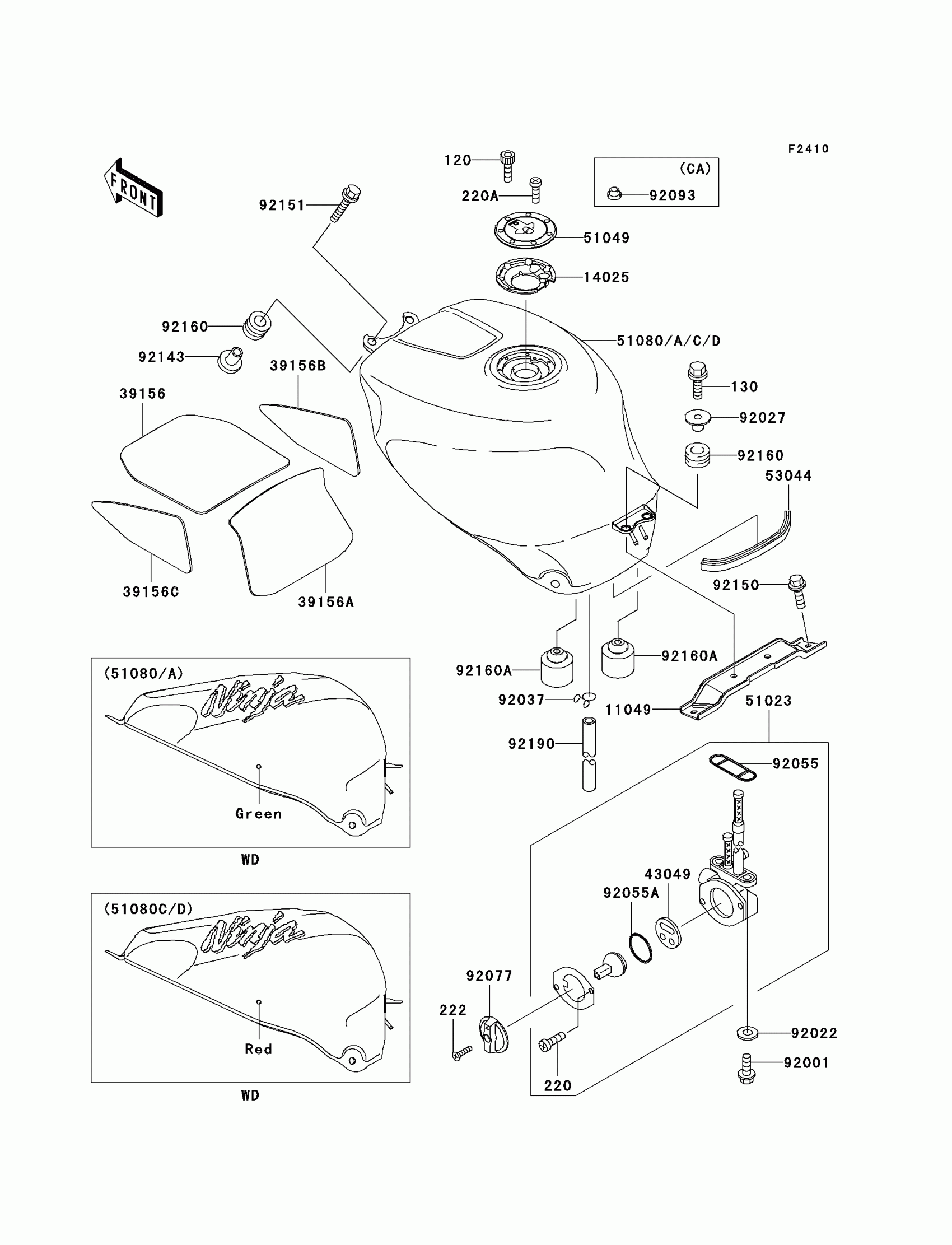

Kawasaki Ninja® ZX™-7R Fuel Tank(ZX750-P1) Diagram

#

Description
Price

11049

BRACKET,FUEL TANK,RR

11049-1338

Unavailable

14025

COVER,TANK CAP

14025-1913

$21.55

39156

PAD,FUEL TANK,FR

39156-1312

$22.59

39156A

PAD,FUEL TANK,RR

39156-1313

$17.85

39156B

PAD,FUEL TANK,SIDE,RH

39156-1314

$15.31

39156C

PAD,FUEL TANK,SIDE,LH

39156-1315

$13.96

43049

PACKING,TAP VALVE

43049-1066

$7.26

51023

TAP-ASSY,FUEL

51023-1221

$98.60

51049

CAP-TANK,FUEL

51049-1091

$115.45

120

BOLT-SOCKET,5X12

120S0512

$1.71

130

BOLT-FLANGED,6X25

130J0625

$2.62

220

SCREW-PAN-CROS,3X8

220B0308

$0.59

220A

SCREW-PAN-CROSS

220C0508

$0.55

222

SCREW-CSK-RD-CROS

222C0412

$2.48

53044

TRIM

53044-1296

$11.99

92001

BOLT,6X20

92001-1091

$3.92

92022

WASHER-PLAIN

92022-183

$3.92

92027

COLLAR,L=14.1

92027-1920

$6.57

92037

CLAMP,TUBE

92037-147

$7.34

92055

RING-O,FUEL TAP PACKING

92055-1112

$5.00

92055A

RING-O,TAP LEVER

92055-1419

$5.00

92077

KNOB,FUEL TAP

92077-1120

$14.22

92143

COLLAR

92143-1515

$20.04

92150

BOLT,FLANGED,6X20

92150-1633

$3.92

92151

BOLT,FLANGED,6X30

92151-1105

$4.39

92160

DAMPER

92160-1162

$5.00

92160A

DAMPER

92160-1513

$7.40

92190

TUBE,DRAIN

92190-1418

$22.59

51080

TANK-COMP-FUEL,L.GREEN

51080-5263-7F

Unavailable

51080A

TANK-COMP-FUEL,L.GREEN

51080-5264-7F

Unavailable

51080C

TANK-COMP-FUEL,C.P.RED

51080-5266-A5

Unavailable

51080D

TANK-COMP-FUEL,C.P.RED

51080-5267-A5

Unavailable

92093

SEAL,FUEL TANK CAP

92093-1030

$7.77
