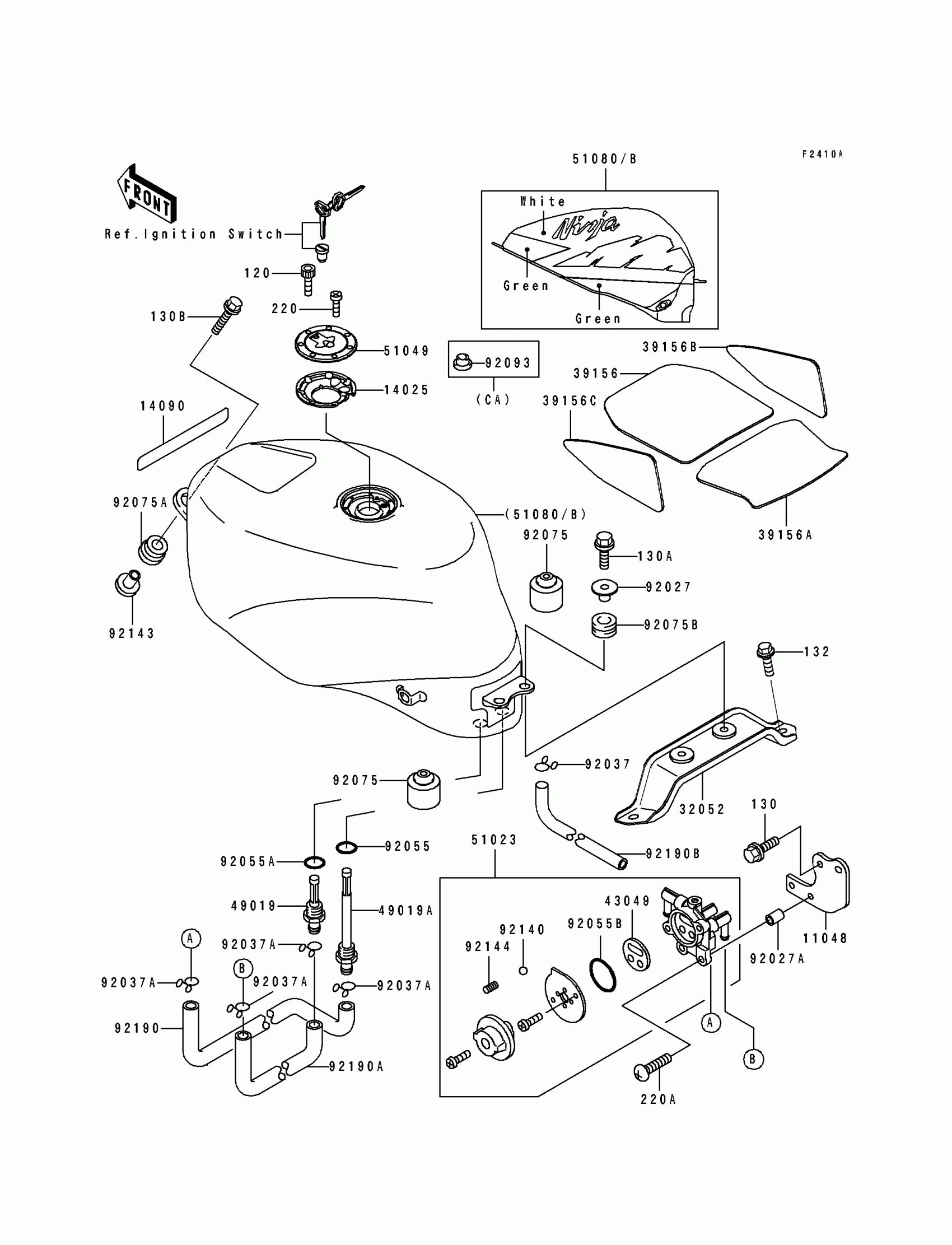

Kawasaki Ninja® ZX™-7R Fuel Tank(ZX750-M2) Diagram

#

Description
Price

11048

BRACKET,FUEL TAP

11048-1150

Unavailable

14025

COVER,TANK CAP

14025-1913

$21.55

14090

COVER,FUEL TANK

14090-1338

$5.90

32052

BRACKET-TANK,RR

32052-1367

Unavailable

39156

PAD,FUEL TANK,FR

39156-1312

$22.59

39156A

PAD,FUEL TANK,RR

39156-1313

$17.85

39156B

PAD,FUEL TANK,SIDE,RH

39156-1314

$15.31

39156C

PAD,FUEL TANK,SIDE,LH

39156-1315

$13.96

43049

PACKING,TAP VALVE

43049-1066

$7.26

49019

FILTER-FUEL

49019-1070

$18.46

49019A

FILTER-FUEL,"ON"

49019-1074

Unavailable

51023

TAP-ASSY,FUEL

51023-1203

Unavailable

51049

CAP-TANK,FUEL

51049-1091

$115.45

51080

TANK-COMP-FUEL,GREEN/WHITE

51080-5056-CK

$2,896.56

51080B

TANK-COMP-FUEL,GREEN/WHITE

51080-5066-CK

$2,762.56

92027

COLLAR,L=13.1,BLACK

92027-1450

$6.22

92027A

COLLAR,6.8X10X14

92027-1966

$5.00

92037

CLAMP,TUBE

92037-147

$7.34

92037A

CLAMP,TUBE

92037-1972

$4.31

92055

RING-O,ID=9.5

92055-1386

$3.92

92055A

RING-O,11.5X1.5

92055-1387

$3.92

92055B

RING-O,TAP LEVER

92055-1419

$5.00

92075

DAMPER

92075-1002

$6.22

92075A

DAMPER RUBBER

92075-112

$4.31

92075B

DAMPER RUBBER,RR FENR

92075-209

$4.69

92093

SEAL,FUEL TANK CAP

92093-1030

$7.77

92140

BALL,STAINLESS,5/32"

92140-1051

$4.74

92143

COLLAR

92143-1515

$20.04

92144

SPRING,FUEL TAP KNOB

92144-1212

$4.35

92190

TUBE,FUEL,"ON"

92190-1349

Unavailable

92190A

TUBE,FUEL,"RES"

92190-1350

Unavailable

92190B

TUBE,DRAIN

92190-1453

$21.33

120

BOLT-SOCKET,5X12

120S0512

$1.71

130

BOLT-FLANGED

130J0610

$2.33

130A

BOLT-FLANGED,6X30,BLACK

130J0630

$4.04

130B

BOLT-FLANGED,6X45,BLACK

130J0645

$4.35

132

BOLT-FLANGED-SMALL,8X20

132J0820

$3.84

220

SCREW-PAN-CROSS

220C0508

$0.55

220A

SCREW-PAN-CROS,6X25,B

220C0625

$3.41
