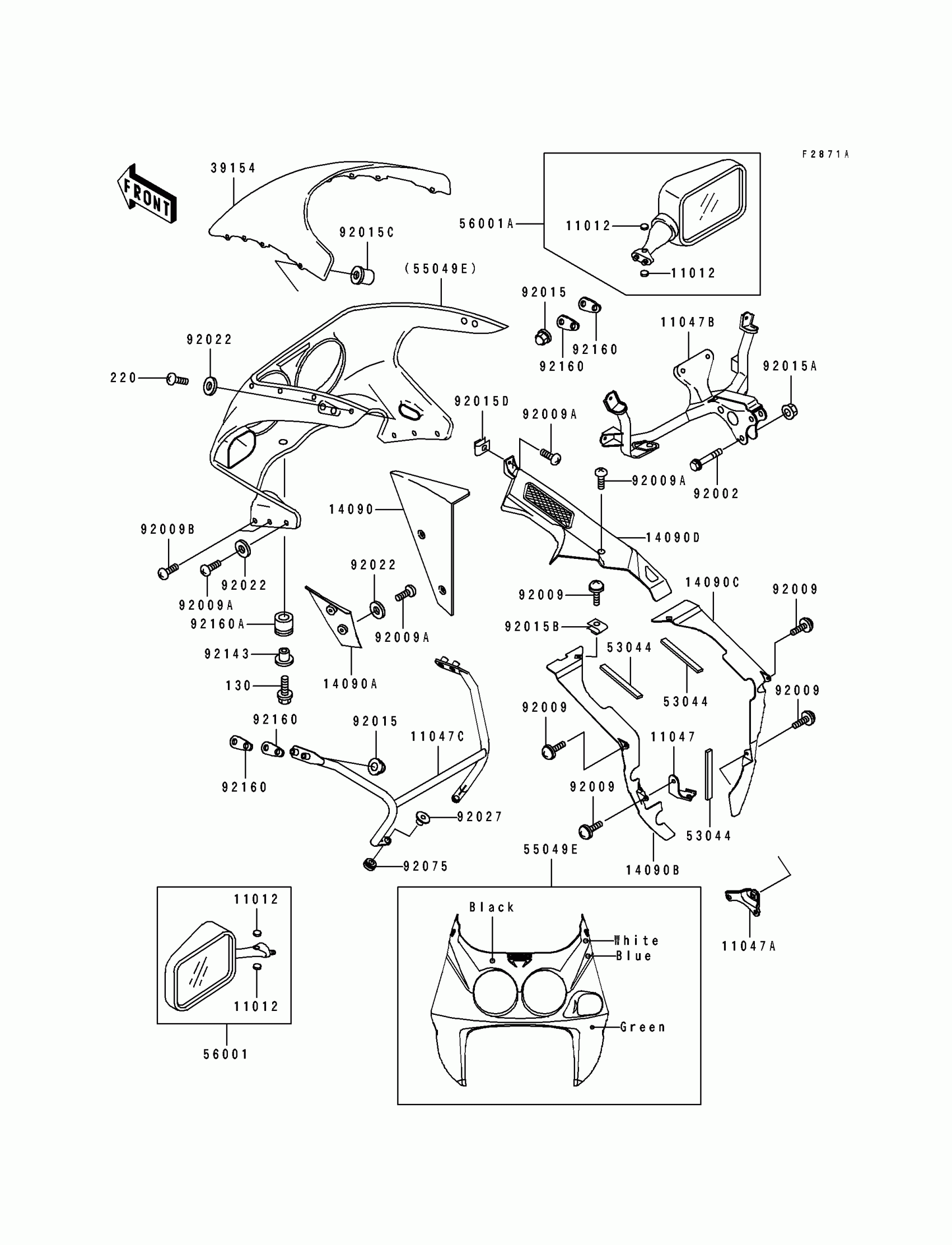

Kawasaki Ninja® ZX™-7R Cowling(ZX750-M2) Diagram

#

Description
Price

11012

CAP,MIRROR

11012-1818

$3.43

11047

BRACKET,INNER COWLING,LH

11047-1856

Unavailable

11047A

BRACKET,INNER COWLING,RH

11047-1857

Unavailable

11047B

BRACKET,UPP COWLING

11047-1860

Unavailable

11047C

BRACKET,MIRROR

11047-1861

$139.89

14090

COVER,RADIATOR,RH

14090-1236

Unavailable

14090A

COVER,RADIATOR,LH

14090-1237

Unavailable

14090B

COVER,INNER COWLING,LH

14090-1265

Unavailable

14090C

COVER,INNER COWLING,RH

14090-1266

Unavailable

14090D

COVER,INNER COWLING,FR,UPP

14090-1267

Unavailable

39154

WINDSHIELD

39154-1120

$219.51

53044

TRIM,L=150

53044-1248

Unavailable

55049E

COWLING.,UPP,GREEN/WHITE

55049-5285-CK

Unavailable

56001

MIRROR-ASSY,LH,P.WHITE

56001-1376-6F

$94.15

56001A

MIRROR-ASSY,RH,P.WHITE

56001-1377-6F

$94.15

92002

BOLT,8X35

92002-1198

$5.23

92009

SCREW,6X14

92009-1555

$3.52

92009A

SCREW,5X16,BLACK

92009-1654

$3.13

92009B

SCREW,5X20,BLACK

92009-1656

$3.96

92015

NUT,CAP,6MM,BLACK

92015-1170

$0.64

92015A

NUT,CAP,8MM,BLACK

92015-1174

$5.00

92015B

NUT,6MM

92015-1602

$7.34

92015C

NUT,WELL,5MM

92015-1757

$7.29

92015D

NUT,5MM

92015-1798

$6.57

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$3.92

92027

COLLAR

92027-1767

$5.52

92075

DAMPER

92075-277

$2.84

92143

COLLAR

92143-1026

$6.52

92160

DAMPER,MIRROR

92160-1089

$7.29

92160A

DAMPER

92160-1141

$4.69

130

BOLT-FLANGED,6X16,BLACK

130J0616

$1.92

220

SCREW-PAN-CROS,5X16,BLACK

220C0516

$1.71
