Cowling(ZX750-M1)

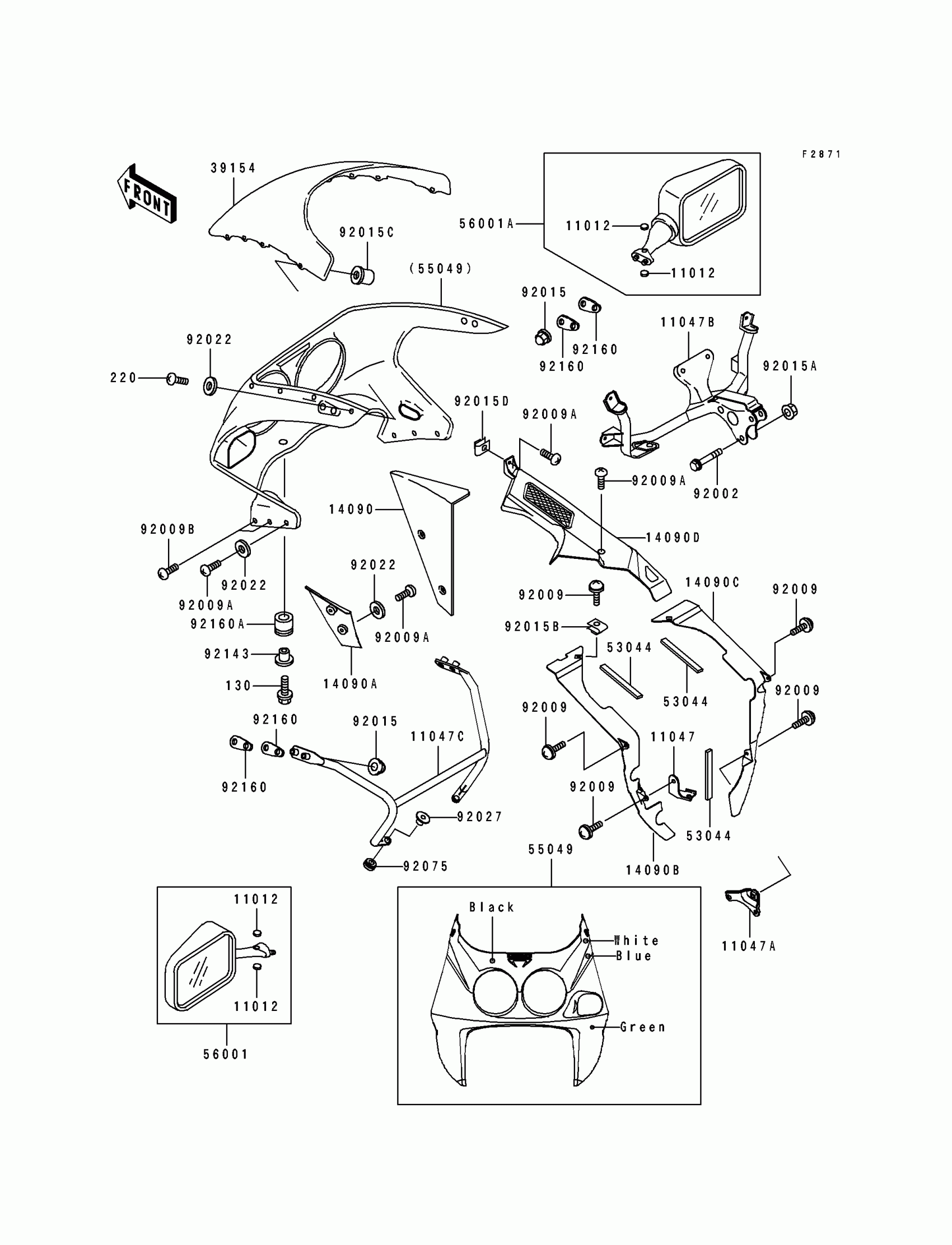

Kawasaki Ninja® ZX™-7R Cowling(ZX750-M1) Diagram
#
Description
Price
11012
CAP,MIRROR
11012-1818
$3.43
11047
BRACKET,INNER COWLING,LH
11047-1856
Unavailable
11047A
BRACKET,INNER COWLING,RH
11047-1857
Unavailable
11047B
BRACKET,UPP COWLING
11047-1860
Unavailable
11047C
BRACKET,MIRROR
11047-1861
$139.89
14090
COVER,RADIATOR,RH
14090-1236
Unavailable
14090A
COVER,RADIATOR,LH
14090-1237
Unavailable
14090B
COVER,INNER COWLING,LH
14090-1265
Unavailable
14090C
COVER,INNER COWLING,RH
14090-1266
Unavailable
14090D
COVER,INNER COWLING,FR,UPP
14090-1267
Unavailable
39154
WINDSHIELD
39154-1120
$219.51
53044
TRIM,L=150
53044-1248
Unavailable
55049
COWLING.,UPP,GREEN/WHITE
55049-5144-CK
$1,069.03
56001
MIRROR-ASSY,LH,P.WHITE
56001-1376-6F
$94.15
56001A
MIRROR-ASSY,RH,P.WHITE
56001-1377-6F
$94.15
92002
BOLT,8X35
92002-1198
$5.23
92009
SCREW,6X14
92009-1555
$3.52
92009A
SCREW,5X16,BLACK
92009-1654
$3.13
92009B
SCREW,5X20,BLACK
92009-1656
$3.96
92015
NUT,CAP,6MM,BLACK
92015-1170
$0.64
92015A
NUT,CAP,8MM,BLACK
92015-1174
$5.00
92015B
NUT,6MM
92015-1602
$7.34
92015C
NUT,WELL,5MM
92015-1757
$7.29
92015D
NUT,5MM
92015-1798
$6.57
92022
WASHER,NYLON,5.3X11.5X1.5
92022-1521
$3.92
92027
COLLAR
92027-1767
$5.52
92075
DAMPER
92075-277
$2.84
92143
COLLAR
92143-1026
$6.52
92160
DAMPER,MIRROR
92160-1089
$7.29
92160A
DAMPER
92160-1141
$4.69
130
BOLT-FLANGED,6X16,BLACK
130J0616
$1.92
220
SCREW-PAN-CROS,5X16,BLACK
220C0516
$1.71
