Description

Price

14069

BREATHER

14069-1051

$10.19

16164

CANISTER

16164-1064

$145.44

16165

SEPARATOR

16165-1001

$90.01

49116

VALVE-ASSY

49116-1099

$173.95

92005

FITTING,T-TYPE

92005-1119

$24.61

92037

CLAMP-HOSE

92037-1104

$1.45

92037A

CLAMP,TUBE

92037-1461

$3.88

92037B

CLAMP,TUBE

92037-147

$7.34

92037C

CLAMP,SPEED,L=80.5

92037-1903

$7.84

92066

PLUG,DRAIN

92066-1211

$8.51

92072

BAND,L=142.1

92072-006

$12.76

92072A

BAND,L=50

92072-066

$16.08

92072B

BAND,L=202

92072-1195

$1.56

92190

TUBE,7X12X45

92190-1200

$12.96

92190A

TUBE,5X10X513,BLUE

92190-1204

$14.79

92190B

TUBE,5X10X558,RED

92190-1215

Unavailable

92190C

TUBE,5X10X438,WHITE

92190-1216

$18.05

92190D

TUBE,5X10X668,BLUE

92190-1228

$18.66

92190E

TUBE,7X12X230,YELLOW

92190-1240

$12.96

92190F

TUBE,7X12X800,YELLOW

92190-1241

$21.50

92190G

TUBE,7X12X110

92190-1242

$12.96

92190H

TUBE,7X12X1130,GREEN

92190-1251

$41.13

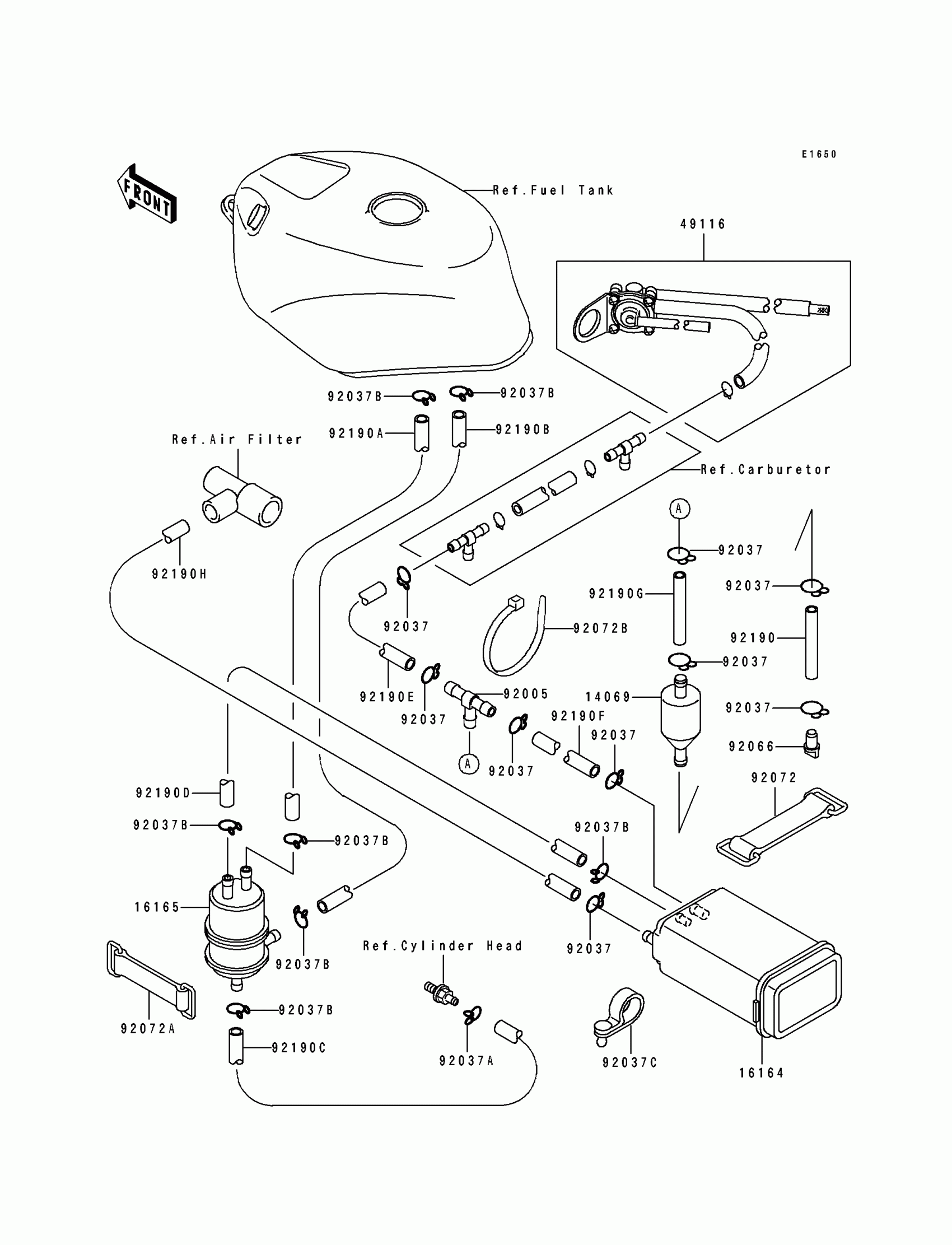

Kawasaki Ninja® ZX™-7R Canister Diagram

BREATHER

CANISTER

SEPARATOR

VALVE-ASSY

FITTING,T-TYPE

CLAMP-HOSE

CLAMP,TUBE

CLAMP,TUBE

CLAMP,SPEED,L=80.5

PLUG,DRAIN

BAND,L=142.1

BAND,L=50

BAND,L=202

TUBE,7X12X45

TUBE,5X10X513,BLUE

TUBE,5X10X558,RED

TUBE,5X10X438,WHITE

TUBE,5X10X668,BLUE

TUBE,7X12X230,YELLOW

TUBE,7X12X800,YELLOW

TUBE,7X12X110

TUBE,7X12X1130,GREEN
