Description

Price

13168

LEVER,SWITCH

13168-1455

Unavailable

13168A

LEVER,STARTER

13168-1487

Unavailable

13168B

LEVER,ACCELERATOR LINK

13168-1489

Unavailable

13183

PLATE,THROTTLE CABLE

13183-1743

Unavailable

13183A

PLATE,CRUISE CANSEL SWITCH

13183-1745

Unavailable

16021

SCREW-THROTTLE STOP

16021-1148

Unavailable

16041

SHAFT-CARBURETOR

16041-1064

$445.67

16170

LINK-ASSY,ACCELERATOR

16170-1052

$202.03

16184

CHAMBER-ASSY-FLOAT,LH,OUTSIDE

16184-1064

$272.68

16184A

CHAMBER-ASSY-FLOAT,LH,INSIDE

16184-1065

$222.45

16184B

CHAMBER-ASSY-FLOAT,RH,INSIDE

16184-1066

Unavailable

16184C

CHAMBER-ASSY-FLOAT,RH,OUTSIDE

16184-1067

$222.45

27010

SWITCH,CRUISE CANSEL

27010-1290

Unavailable

46102

ROD,ACCELERATOR PUMP

46102-1296

Unavailable

92009

SCREW

92009-1262

$6.61

92009A

SCREW,DRAIN,M6X0.75

92009-1551

$9.91

92009B

SCREW

92009-1631

$8.12

92022

WASHER,6.1X11X0.8,POLYACETAL

92022-1199

$4.60

92055

RING-O,FLOAT CHAMBER

92055-1483

$28.97

92144

SPRING,STARTER LEVER

92144-1547

Unavailable

92150

BOLT

92150-1429

Unavailable

92150A

BOLT,SOCKET,4X8

92150-1440

Unavailable

92200

WASHER

92200-1068

Unavailable

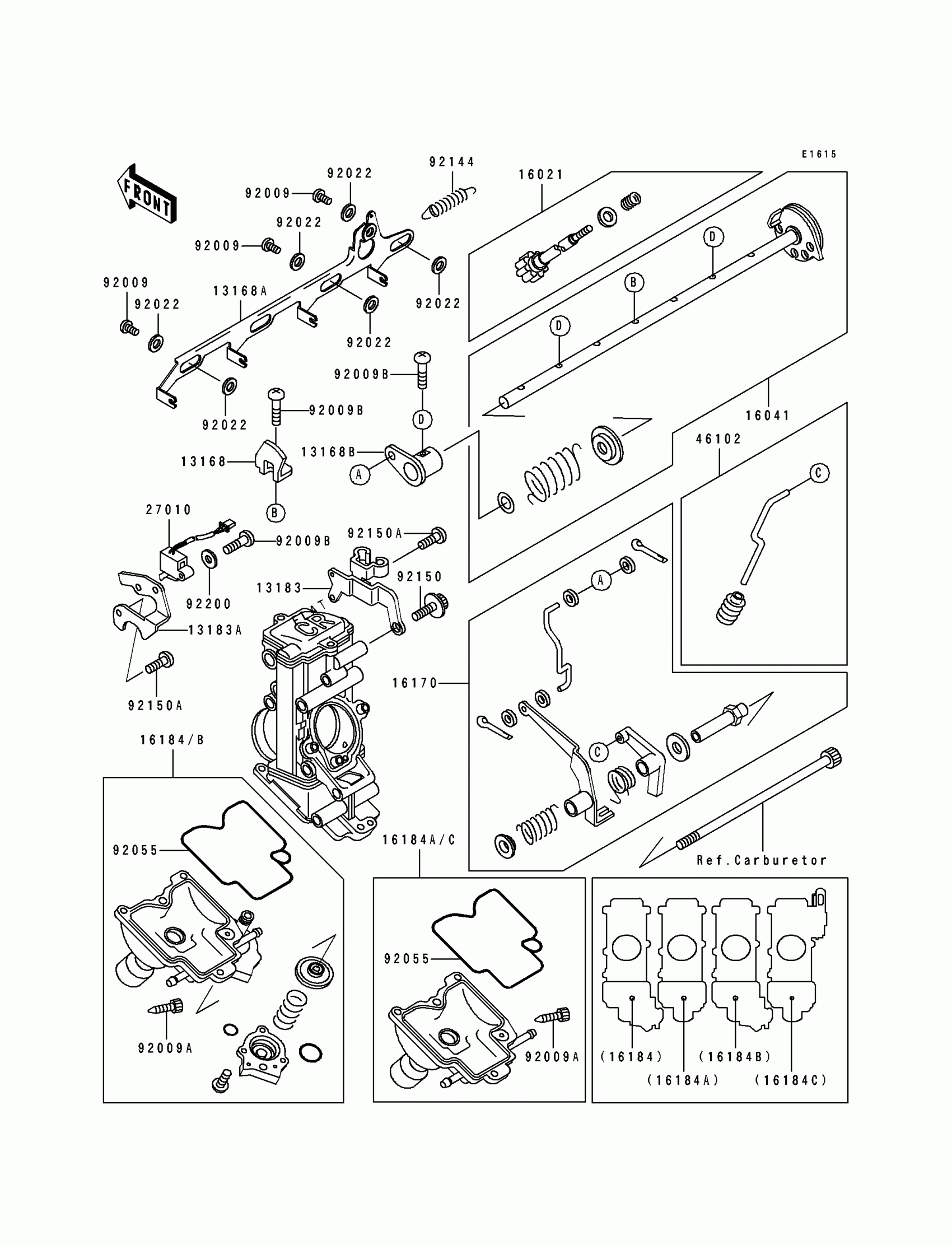

Kawasaki Ninja® ZX™-7R Accelerator Pump Diagram

LEVER,SWITCH

LEVER,STARTER

LEVER,ACCELERATOR LINK

PLATE,THROTTLE CABLE

PLATE,CRUISE CANSEL SWITCH

SCREW-THROTTLE STOP

SHAFT-CARBURETOR

LINK-ASSY,ACCELERATOR

CHAMBER-ASSY-FLOAT,LH,OUTSIDE

CHAMBER-ASSY-FLOAT,LH,INSIDE

CHAMBER-ASSY-FLOAT,RH,INSIDE

CHAMBER-ASSY-FLOAT,RH,OUTSIDE

SWITCH,CRUISE CANSEL

ROD,ACCELERATOR PUMP

SCREW

SCREW,DRAIN,M6X0.75

SCREW

WASHER,6.1X11X0.8,POLYACETAL

RING-O,FLOAT CHAMBER

SPRING,STARTER LEVER

BOLT

BOLT,SOCKET,4X8

WASHER
