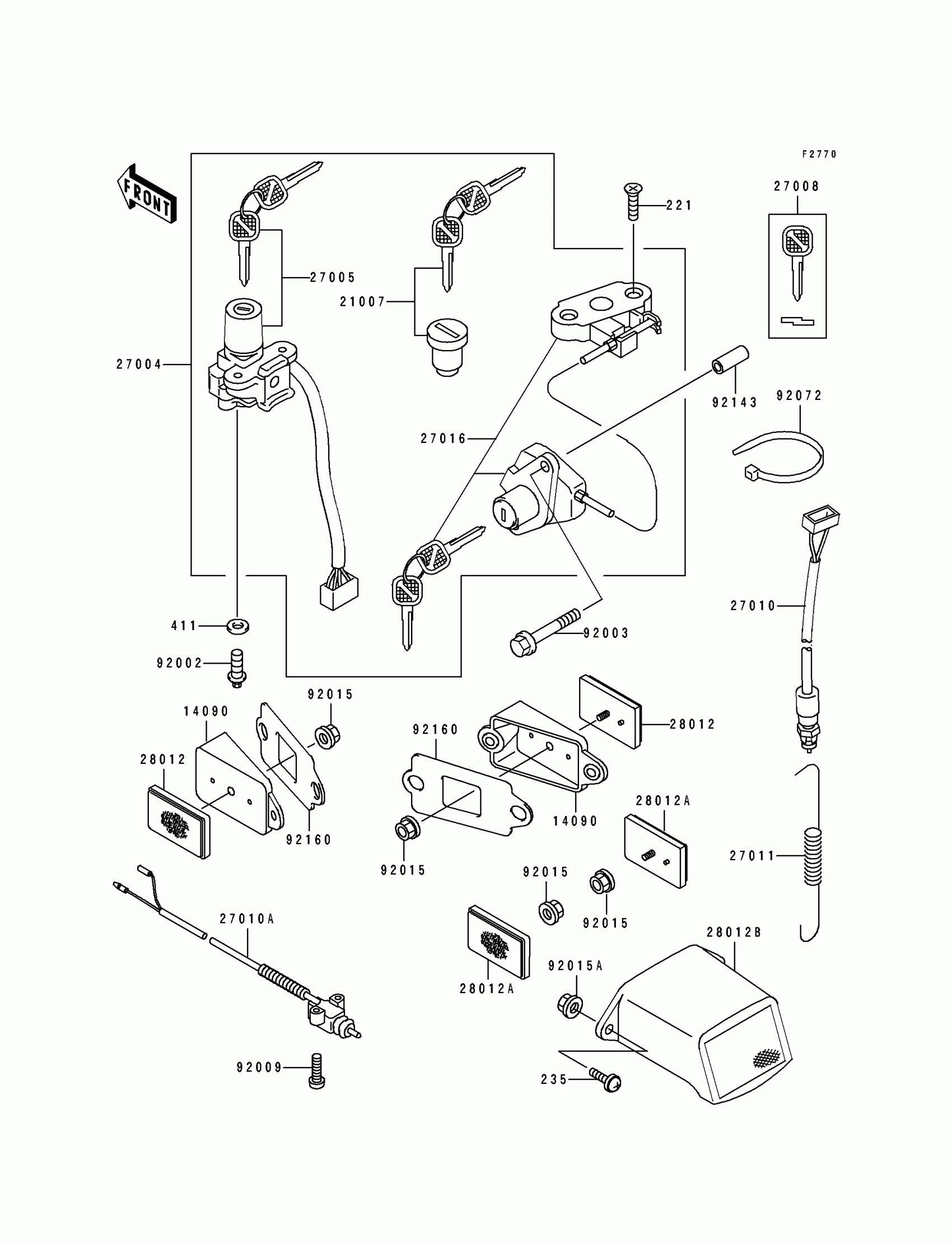

Kawasaki Ninja® ZX™-7 Ignition Switch Diagram

Description

Price

14090

COVER,REFLECTOR

14090-1117

Unavailable

21007

ROTOR,LOCK,TANK CAP

21007-5016

$59.11

27004

SWITCH-ASSY

27004-5411

$418.87

27005

SWITCH-ASSY-IGNITION

27005-1161

$173.60

27008

KEY-LOCK,BLANK

27008-1105

Unavailable

27010

SWITCH,BRAKE LAMP

27010-1093

$30.06

27010A

SWITCH,SIDE STAND

27010-1223

$72.14

27011

SPRING,BRAKE LAMP SWITCH

27011-011

$8.51

27016

LOCK-ASSY,SEAT

27016-5180

$133.21

28012

REFLECTOR-REFLEX

28012-1003

$22.09

28012A

REFLECTOR-REFLEX,RR

28012-1054

$22.46

28012B

REFLECTOR-REFLEX,RR

28012-1066

$35.90

92002

BOLT,TORX,6X16

92002-1333

$2.61

92003

BOLT,FLANGED,6X38

92003-116

$6.81

92009

SCREW,5X20

92009-1459

$4.38

92015

NUT,FLANGED,5MM

92015-1259

$3.92

92015A

NUT,FLANGED,6MM

92015-1367

$3.69

92072

BAND,L=202

92072-1195

$1.56

92143

COLLAR

92143-1046

$5.00

92160

DAMPER,REFLECTOR

92160-1288

Unavailable

221

SCREW-CSK-CROS,6X20

221B0620

$2.40

235

SCREW-PAN-WP-CROS,6X20

235C0620

$2.33

411

WASHER-PLAIN,6MM

411E0600

$1.31
