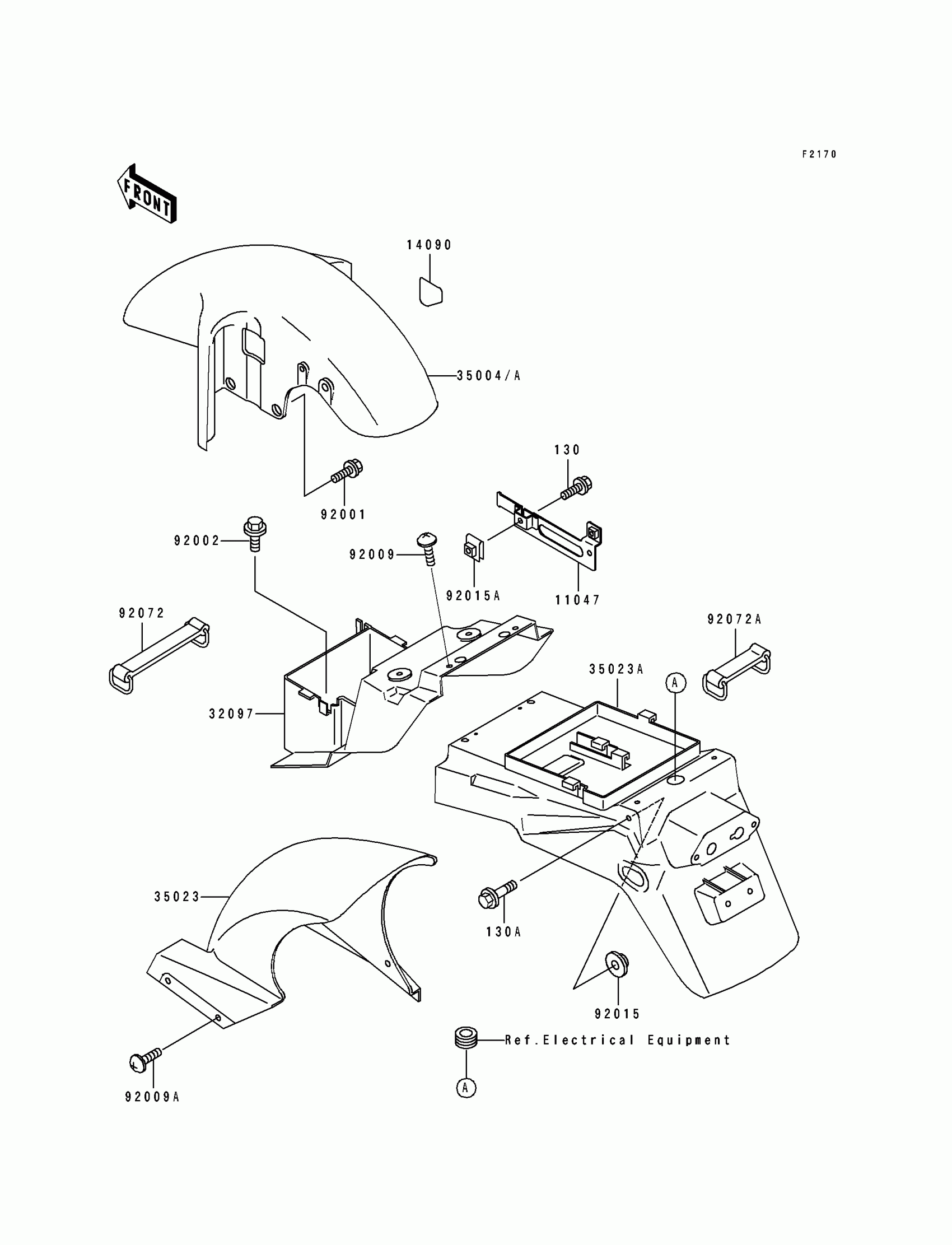

Kawasaki Ninja® ZX™-7 Fender Diagram

Description

Price

11047

BRACKET,ELECTRIC BASE

11047-1272

Unavailable

14090

COVER,FRONT FENDER

14090-1151

Unavailable

32097

CASE-BATTERY

32097-1140

Unavailable

35004

FENDER-FRONT,C.W.RED

35004-1281-H3

Unavailable

35004A

FENDER-FRONT,L.GREEN

35004-1281-7F

$236.73

35023

FENDER-REAR,FR

35023-1309

Unavailable

35023A

FENDER-REAR,RR

35023-1314

Unavailable

92001

BOLT,W/SP,6X16

92001-1763

$4.50

92002

BOLT,UPSET-WP,6X12

92002-1884

$4.11

92009

SCREW,6X20

92009-1289

$4.31

92009A

SCREW,6X10

92009-1402

$2.41

92015

NUT,6MM

92015-1321

$11.91

92015A

NUT,CLAMP,6MM

92015-1531

$5.52

92072

BAND,L=142.1

92072-006

$12.76

92072A

BAND,TOOL,L=82

92072-1294

$14.90

130

BOLT-FLANGED,6X14,BLACK

130J0614

$2.33

130A

BOLT-FLANGED,6X40

130J0640

$5.01
