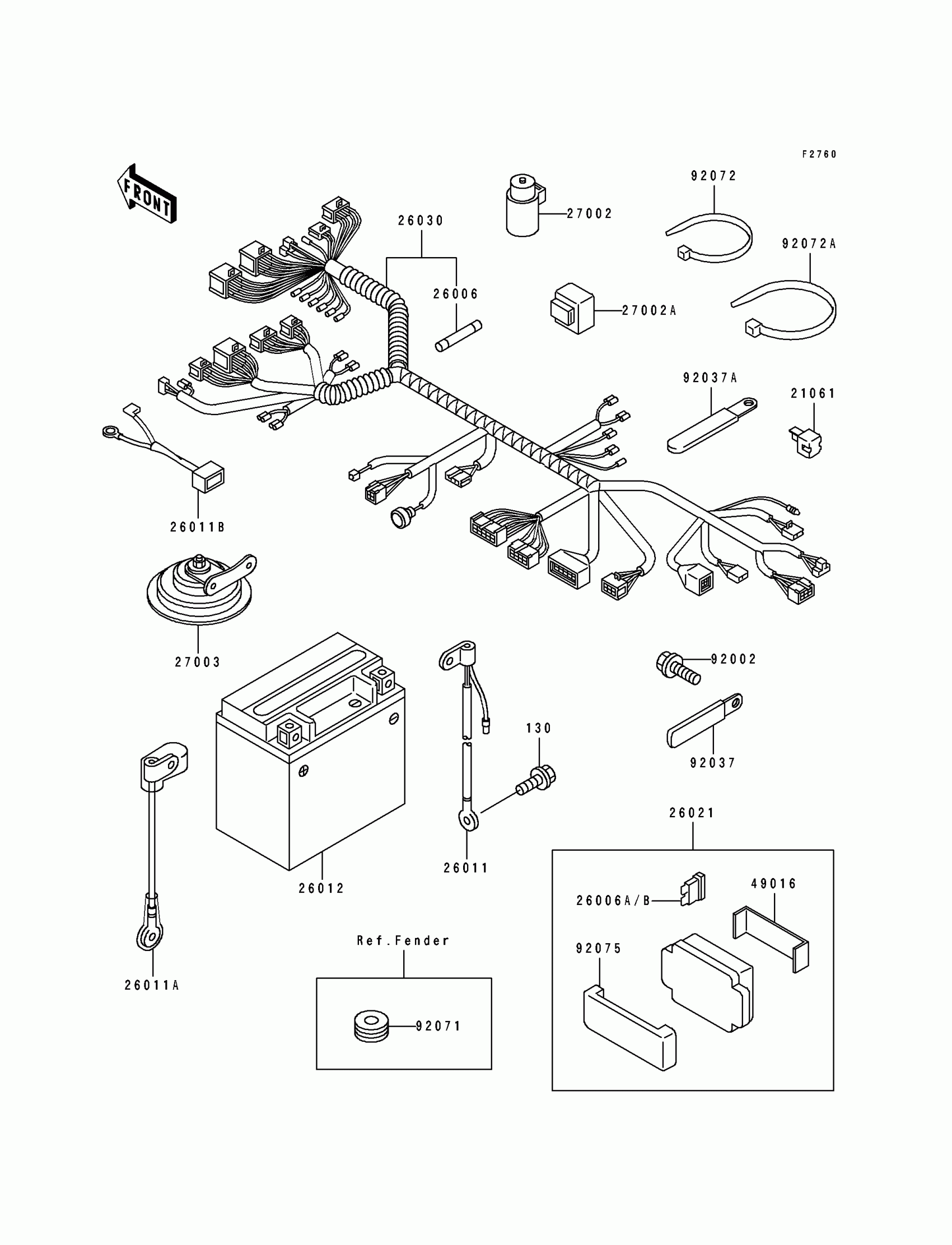

Kawasaki Ninja® ZX™-7 Electrical Equipment Diagram

Description

Price

21061

RECTIFIER

21061-1003

$29.60

26006

FUSE,20A,L=30

26006-1056

$5.06

26006A

FUSE,BLADE,30A,GREEN

26006-1067

Unavailable

26006B

FUSE,10A-R

26006-1068

Unavailable

26011

WIRE-LEAD,BATTERY GROUND

26011-1195

Unavailable

26011A

WIRE-LEAD,BATTERY(+)

26011-1475

Unavailable

26011B

WIRE-LEAD,THERMO SENSOR

26011-1507

$29.17

26012

BATTERY,YTX12-BS,12V 10AH

26012-1253

$119.64

26021

JUNCTION BOX

26021-1077

$216.48

26030

HARNESS,MAIN

26030-1080

Unavailable

27002

RELAY-ASSY

27002-1051

$52.57

27002A

RELAY-ASSY,TURN SIGNAL

27002-1059

$89.11

27003

HORN

27003-1316

$83.85

49016

COVER-SEAL,FUSE

49016-1125

Unavailable

92002

BOLT,TAPPING,5X16

92002-1472

$1.52

92037

CLAMP

92037-1679

$5.52

92037A

CLAMP

92037-1993

$5.52

92071

GROMMET,SENSOR LEAD

92071-1058

$5.73

92072

BAND,L=202

92072-1195

$1.56

92072A

BAND,L=365

92072-1197

$7.84

92075

DAMPER,JUNCTION BOX

92075-1688

$14.36

130

BOLT-FLANGED,6X10

130B0610

$0.48
