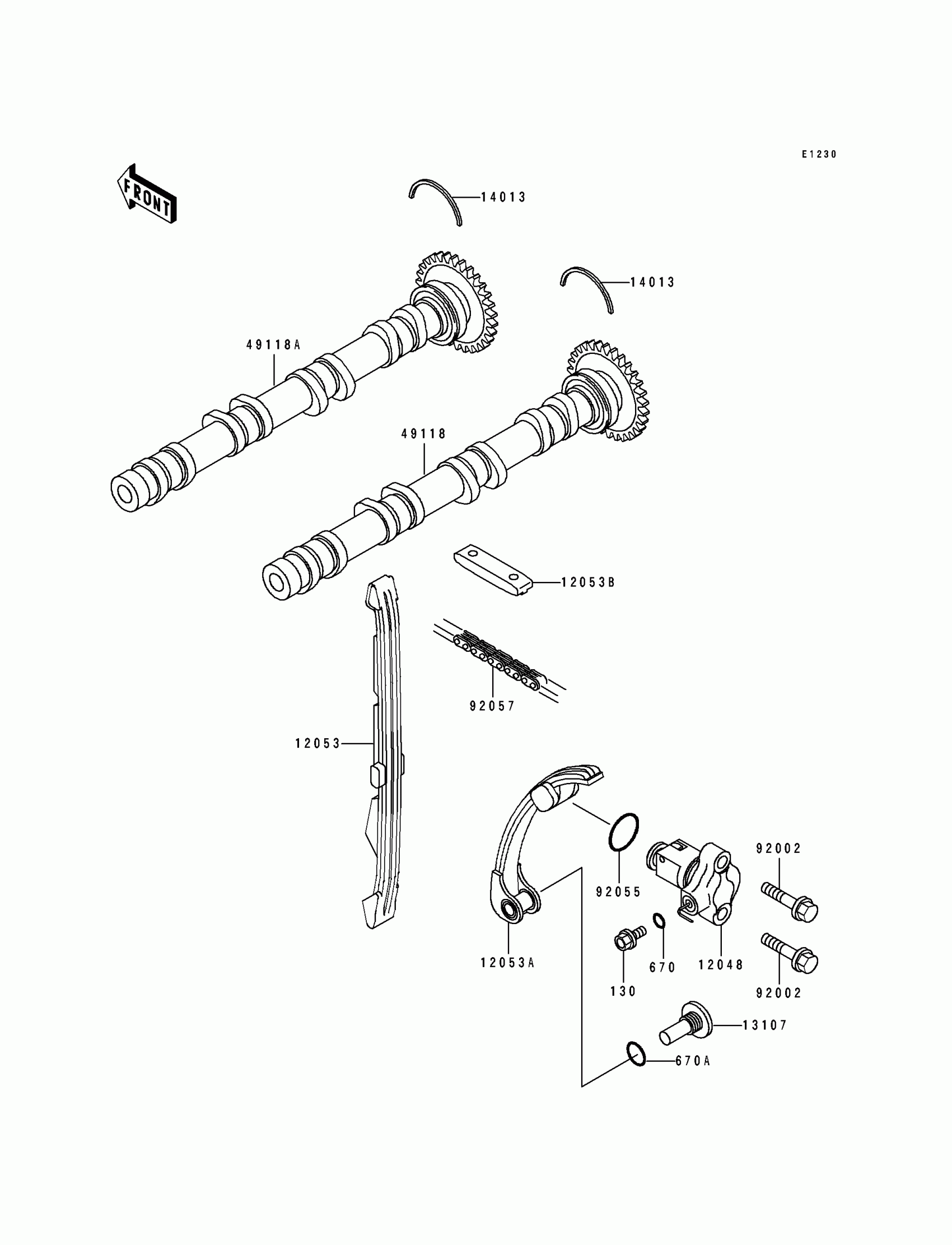

Kawasaki Ninja® ZX™-7 Camshaft/Tensioner Diagram

Description

Price

12048

TENSIONER-ASSY

12048-1112

Unavailable

12053

GUIDE-CHAIN

12053-1282

$64.10

12053A

GUIDE-CHAIN

12053-1283

Unavailable

12053B

GUIDE-CHAIN

12053-1286

Unavailable

13107

SHAFT

13107-1280

$28.61

14013

RING-POSITION,CAMSHAFT

14013-1057

$5.90

49118

CAMSHAFT-COMP,INTAKE

49118-1091

$587.73

49118A

CAMSHAFT-COMP,EXHAUST

49118-1092

$570.45

92002

BOLT,6X25

92002-1612

$5.05

92055

RING-O,18.8X1.9

92055-086

$4.31

92057

CHAIN,CAMSHAFT,BF05MA

92057-1323

$135.82

130

BOLT-FLANGED,5X8

130G0508

$1.85

670

O RING,6MM

670B1506

$1.28

670A

O RING,14MM

670D2014

$5.52
