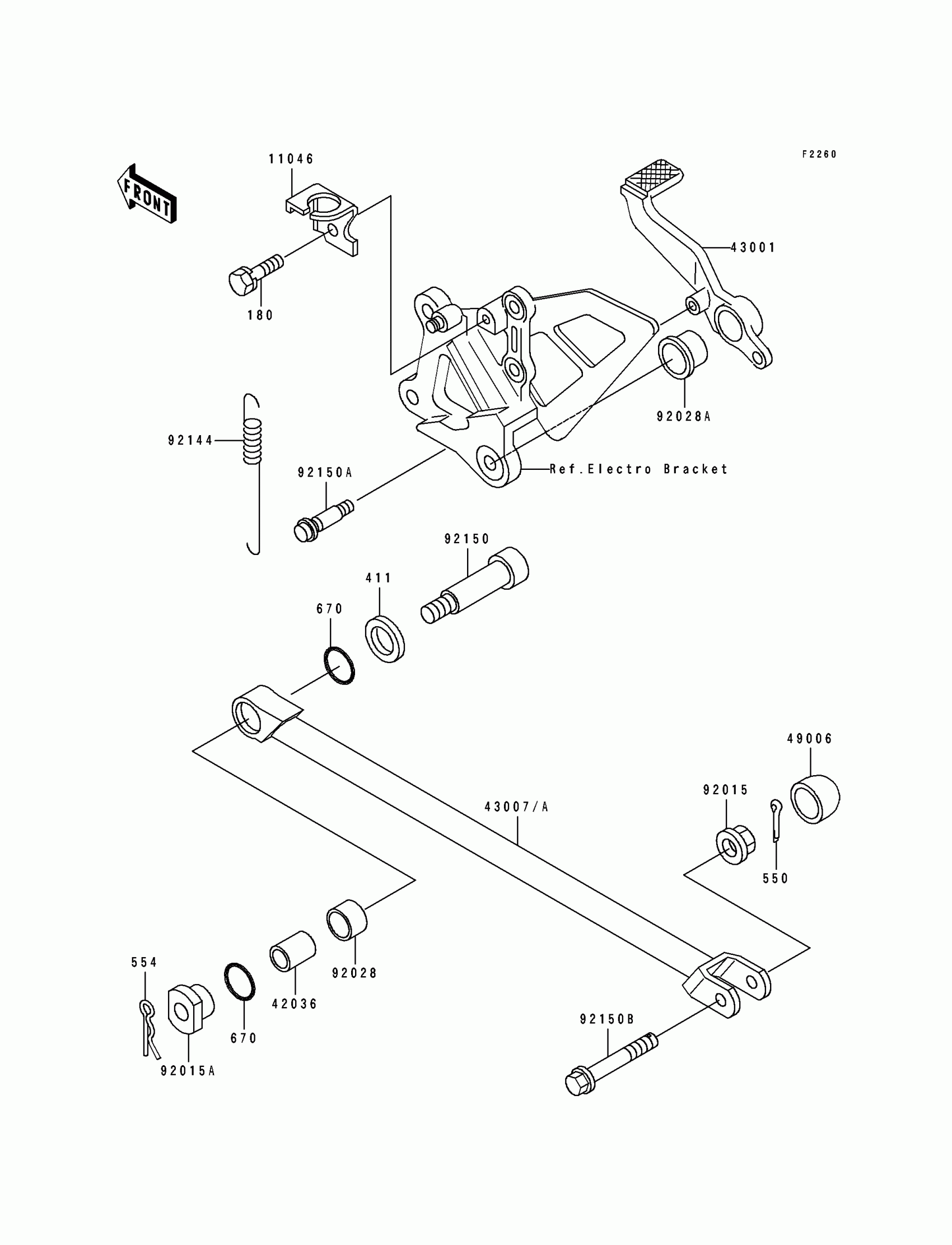

Kawasaki Ninja® ZX™-7 Brake Pedal Diagram

Description

Price

11046

BRACKET,REAR BRAKE SWITCH

11046-1252

$9.57

42036

SLEEVE,10.1X16X20

42036-1242

$17.92

43001

LEVER-BRAKE,PEDAL

43001-1274

$131.21

43007

ROD-TORQUE,SILVER NO.30

43007-1158-KF

$102.99

43007A

ROD-TORQUE,BLACK

43007-1158-10

Unavailable

49006

BOOT

49006-1218

$5.54

92015

NUT,8MM

92015-1432

$6.57

92015A

NUT,8MM

92015-1747

$17.74

92028

BUSHING

92028-1468

$10.11

92028A

BUSHING

92028-1576

$18.40

92144

SPRING,BRAKE PEDAL RETURN

92144-1421

$12.12

92150

BOLT,SOCKET,8X61

92150-1167

Unavailable

92150A

BOLT

92150-1439

$12.76

92150B

BOLT,FLANGED,8X47

92150-1539

$10.74

180

BOLT-UPSET-WS,6X14

180H0614

$1.20

411

WASHER-PLAIN,10MM

411D1000

$4.78

550

PIN COTTER 2.0X15

550D2015

$1.04

554

PIN-SNAP,8MM

554A0800

$1.26

670

O RING,16MM

670B2016

$1.36
