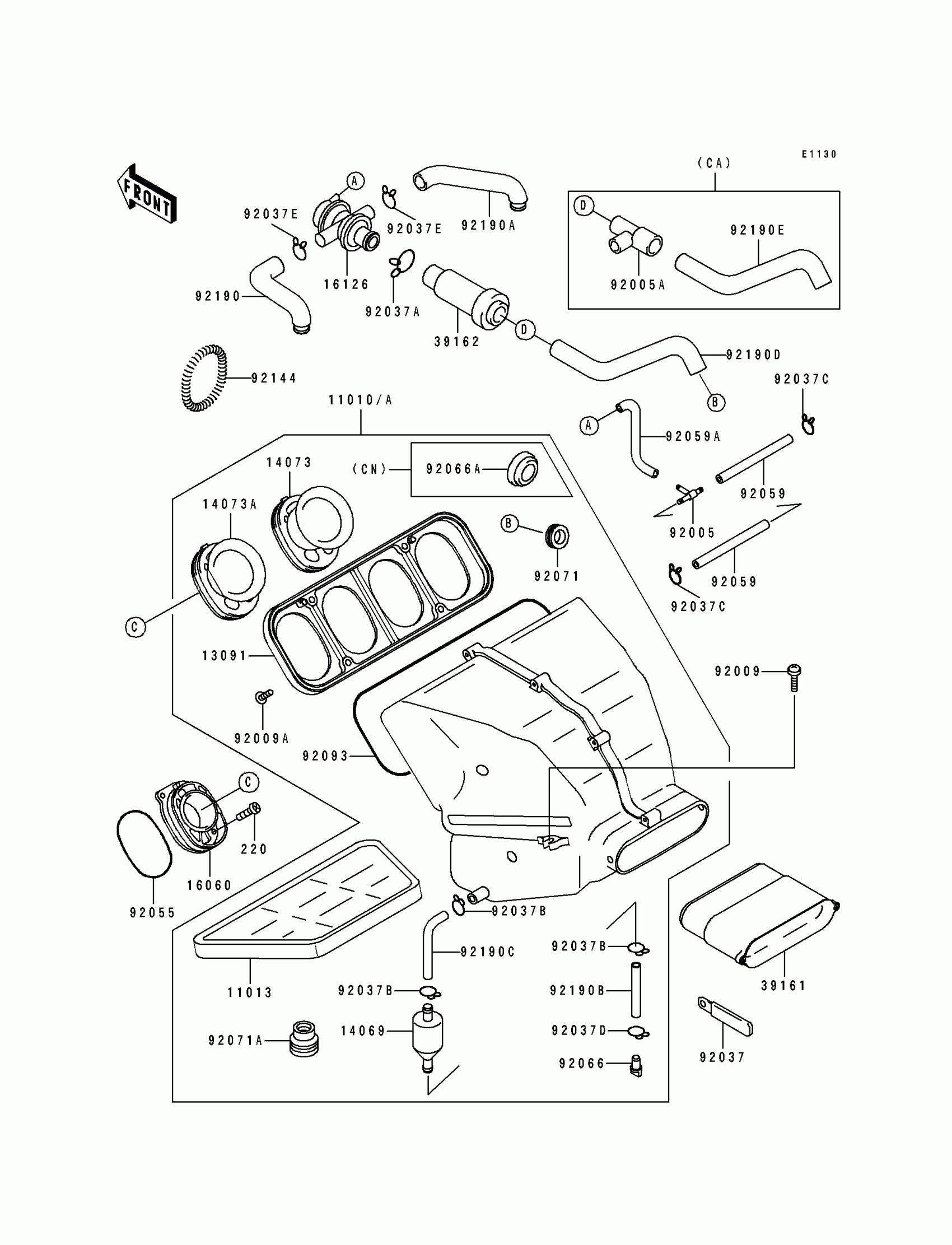

Kawasaki Ninja® ZX™-7 Air Filter Diagram

#

Description
Price

11010

FILTER-ASSY-AIR

11010-1465

Unavailable

11010A

FILTER-ASSY-AIR

11010-1467

Unavailable

11013

ELEMENT-AIR FILTER

11013-1210

$52.04

13091

HOLDER,AIR FILTER

13091-1731

Unavailable

14069

BREATHER

14069-1051

$10.19

14073

DUCT,#2

14073-1502

Unavailable

14073A

DUCT,#1

14073-1503

$43.54

16060

PIPE-INTAKE

16060-1068

Unavailable

16126

VALVE,AIR SWITCH

16126-1104

$193.18

39161

SILENCER-ASSY-INTAKE

39161-1068

Unavailable

39162

SILENCER-INTAKE

39162-1003

$68.27

92005

FITTING,TUBE,T-TYPE

92005-1017

Unavailable

92005A

FITTING,SILENCER

92005-1207

Unavailable

92009

SCREW,6X25

92009-1511

$4.05

92009A

SCREW,TAPPING,6X25

92009-1640

$5.23

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92037A

CLAMP,TUBE

92037-1076

$7.22

92037B

CLAMP,12.5MM

92037-1271

$2.79

92037C

CLAMP

92037-1712

$5.00

92037D

CLAMP,TUBE

92037-1972

$4.31

92037E

CLAMP,TUBE

92037-213

$4.31

92055

RING-O,67.7X3.1

92055-1434

$9.89

92059

TUBE,FUEL,4X9X140

92059-1230

$19.09

92059A

TUBE,4X9X500,WHITE

92059-1533

$19.09

92066

PLUG,DRAIN

92066-1211

$8.51

92066A

PLUG,25MM

92066-1321

Unavailable

92071

GROMMET,AIR FILTER

92071-1028

$7.27

92071A

GROMMET,AIR FILTER

92071-1204

$9.08

92093

SEAL,AIR FILTER

92093-1320

Unavailable

92144

SPRING,DUCT

92144-1563

$10.43

92190

TUBE,HEAD-AIR SWITCH,LH

92190-1197

Unavailable

92190A

TUBE,HEAD-AIR SWITCH,RH

92190-1198

Unavailable

92190B

TUBE,7X12X45

92190-1200

$12.96

92190C

TUBE,BREATHER

92190-1243

Unavailable

92190D

TUBE,AIR SWITCH-AIR FILTER

92190-1254

Unavailable

92190E

TUBE,AIR SWITCH-AIR FILTER

92190-1255

$14.79

220

SCREW-PAN-CROS

220B0512

$0.47
