Description

Price

130

BOLT-FLANGED,6X12

130J0612

$2.19

130A

BOLT-FLANGED,6X16,BLACK

130J0616

$1.92

132

BOLT-FLANGED-SMALL,6X10

132J0610

$2.33

550

PIN-COTTER,4.0X25

550D4025

$0.48

11052

BRACKET,BATTERY CASE

11052-1951

$13.07

13168

LEVER,FRONT SEAT

13168-1765

Unavailable

13271

PLATE,FOOT GUARD

13271-0104

$4.90

32037

BRACKET-SHOCKABSORBER

32037-1887

$27.33

32046

BRACKET-SEAT,LH

32046-1522

$7.47

32046A

BRACKET-SEAT,RH

32046-1523

$8.17

32098

CASE-TOOL

32098-1144

$58.07

35063

STAY,RR STEP,LH,P.SILVER

35063-0031-458

$126.21

35063A

STAY,RR STEP,RH,P.SILVER

35063-0032-458

$126.21

35063B

STAY,FRONT STEP,LH,P.SILVER

35063-0037-458

$140.83

35063C

STAY,FRONT STEP,RH,P.SILVER

35063-1257-458

$143.31

55020

GUARD,FR STEP STAY,RH

55020-0025

$32.29

55020A

GUARD,FR STEP STAY,LH

55020-1627

$29.30

92015

NUT,FLANGED,16MM

92015-1881

$23.10

92026

SPACER,SET

92026-1586

$121.69

92026A

SPACER,16.5X26X6

92026-1594

$4.67

92072

BAND,TOOL

92072-1349

$17.04

92150

BOLT,SOCKET,8X20

92150-1839

$2.15

92151

BOLT,6MM

92151-1334

$3.39

92153

BOLT,SOCKET,8X20

92153-0412

$9.38

92153A

BOLT,SOCKET,6X18

92153-1262

$5.35

92172

SCREW,5X12,GREEN

92172-0008

$1.78

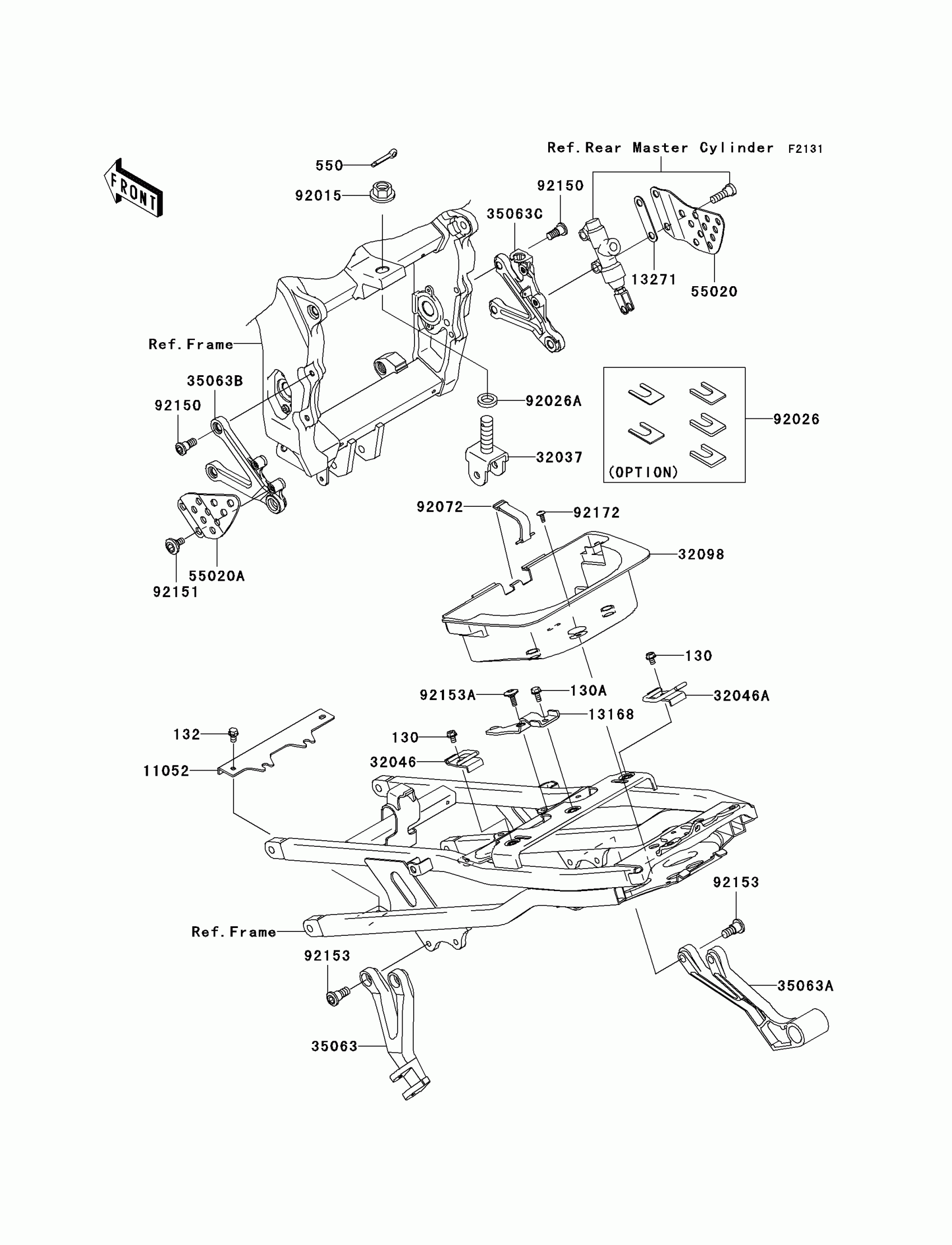

Kawasaki Ninja® ZX™-6RR Frame Fittings Diagram

BOLT-FLANGED,6X12

BOLT-FLANGED,6X16,BLACK

BOLT-FLANGED-SMALL,6X10

PIN-COTTER,4.0X25

BRACKET,BATTERY CASE

LEVER,FRONT SEAT

PLATE,FOOT GUARD

BRACKET-SHOCKABSORBER

BRACKET-SEAT,LH

BRACKET-SEAT,RH

CASE-TOOL

STAY,RR STEP,LH,P.SILVER

STAY,RR STEP,RH,P.SILVER

STAY,FRONT STEP,LH,P.SILVER

STAY,FRONT STEP,RH,P.SILVER

GUARD,FR STEP STAY,RH

GUARD,FR STEP STAY,LH

NUT,FLANGED,16MM

SPACER,SET

SPACER,16.5X26X6

BAND,TOOL

BOLT,SOCKET,8X20

BOLT,6MM

BOLT,SOCKET,8X20

BOLT,SOCKET,6X18

SCREW,5X12,GREEN
