Description

Price

120

BOLT-SOCKET,6X10

120S0610

$2.33

130

BOLT-FLANGED,6X20

130L0620

Unavailable

411

WASHER PLAIN

411F0600

$1.18

11053

BRACKET,FLAP,LH

11053-0060

$18.49

11053A

BRACKET,FLAP,RH

11053-0061

$18.49

32065

BRACKET-FENDER,LH

32065-1376

$26.84

32065A

BRACKET-FENDER,RH

32065-1377

$26.84

35004

FENDER-FRONT,L.GREEN

35004-0024-7F

$222.35

35019

FLAP,REAR FENDER

35019-1400

$72.65

35022

FENDER-COMP-REAR,FR

35022-0015

$180.84

35023

FENDER-REAR,INNER,EBONY

35023-1597-6C

$252.36

35023A

FENDER-REAR,CNT,L.GREEN

35023-1601-7F

$159.65

92015

NUT,LOCK,FLANGED,6MM

92015-1603

$4.69

92015A

NUT,RUBBER,6MM

92015-1692

$7.34

92039

RIVET

92039-1286

$3.04

92075

DAMPER

92075-1634

$4.69

92143

COLLAR

92143-1962

$6.22

92151

BOLT,SOCKET,6X25

92151-1611

$2.34

92151A

BOLT,SOCKET,6X14

92151-1654

$1.83

92153

BOLT,6MM

92153-0335

$4.67

92153A

BOLT,SOCKET,6X23

92153-1267

$2.80

92160

DAMPER

92160-1613

$3.74

92200

WASHER,6.5X14X1

92200-1388

$2.46

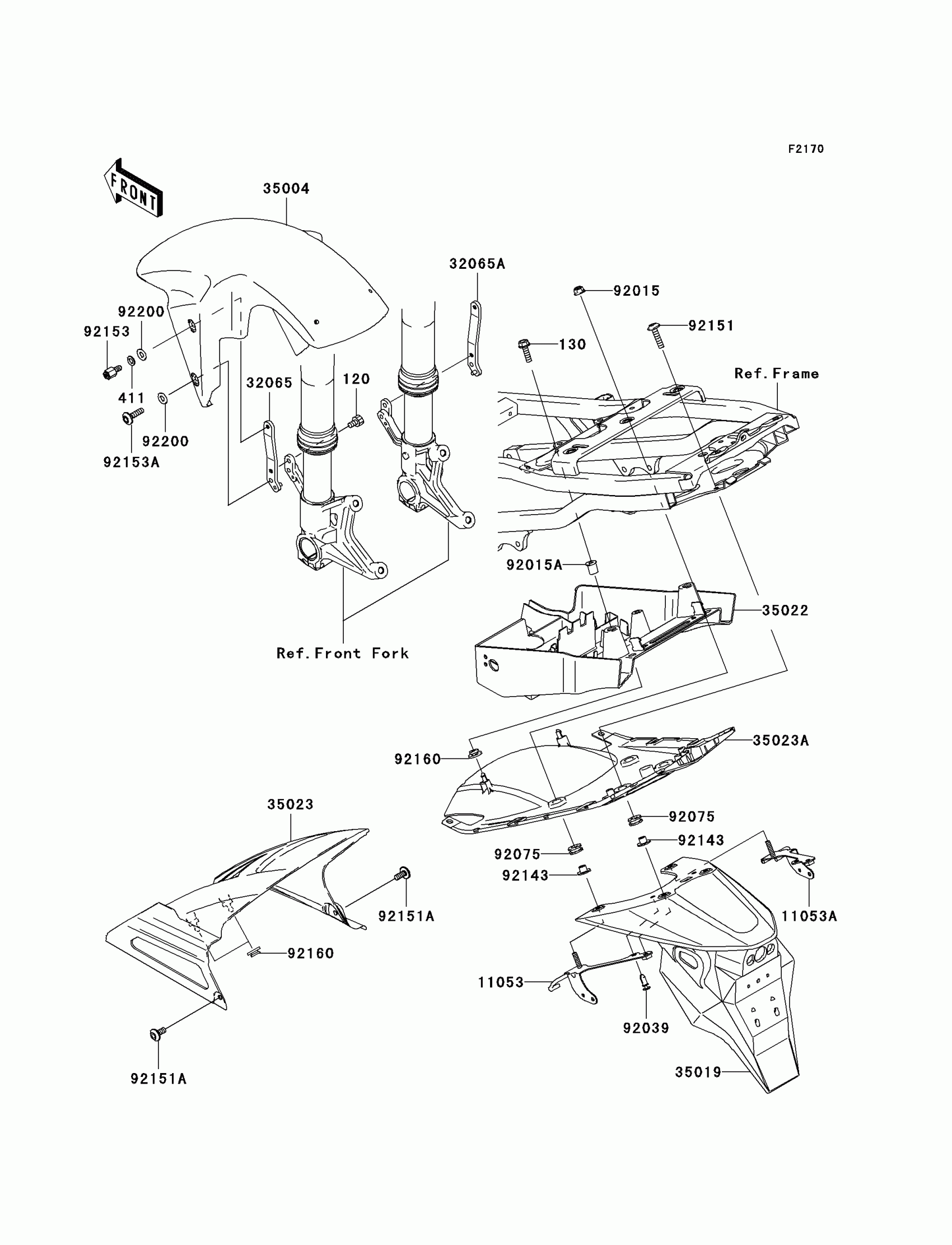

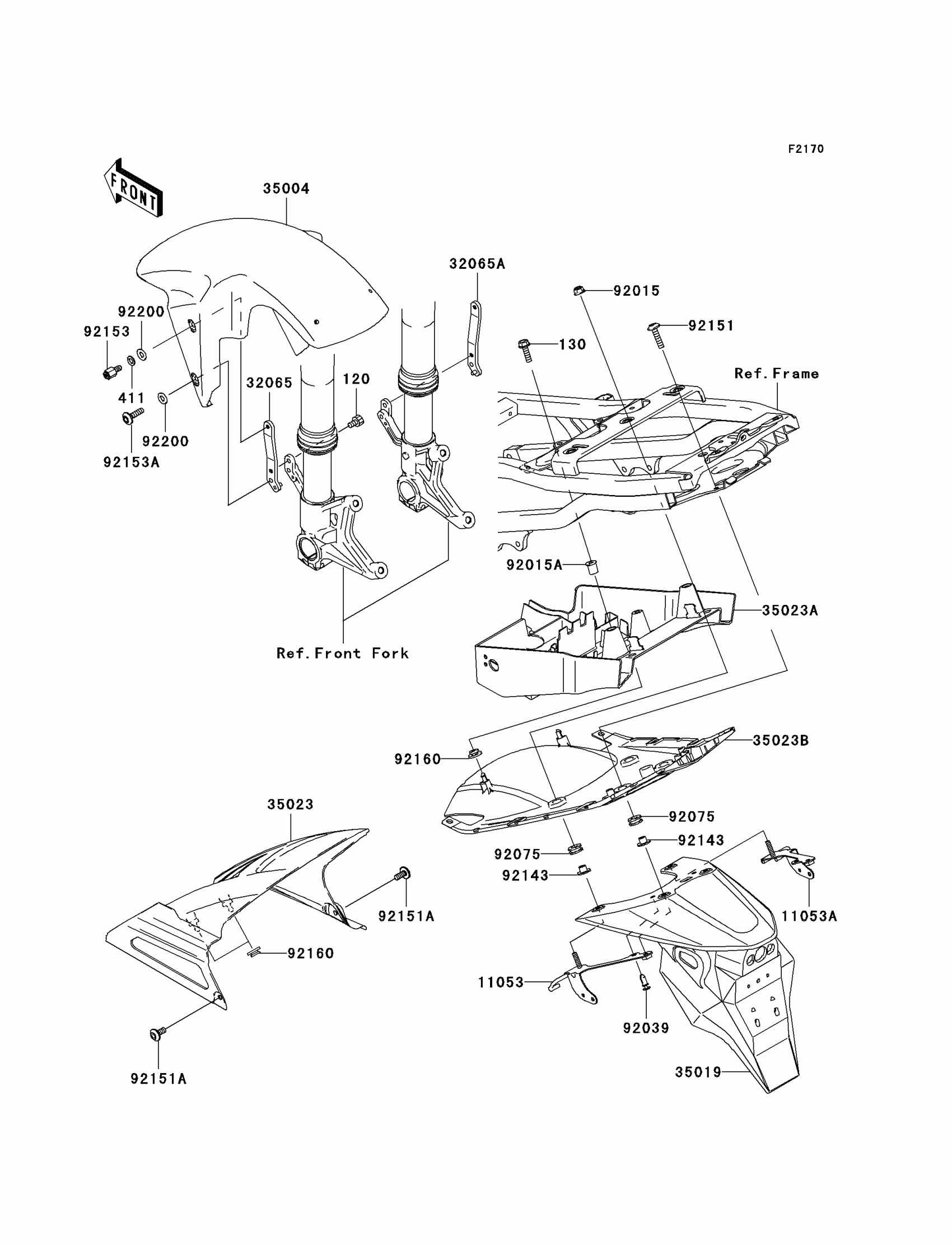

Kawasaki Ninja® ZX™-6RR Fenders Diagram

BOLT-SOCKET,6X10

BOLT-FLANGED,6X20

WASHER PLAIN

BRACKET,FLAP,LH

BRACKET,FLAP,RH

BRACKET-FENDER,LH

BRACKET-FENDER,RH

FENDER-FRONT,L.GREEN

FLAP,REAR FENDER

FENDER-COMP-REAR,FR

FENDER-REAR,INNER,EBONY

FENDER-REAR,CNT,L.GREEN

NUT,LOCK,FLANGED,6MM

NUT,RUBBER,6MM

RIVET

DAMPER

COLLAR

BOLT,SOCKET,6X25

BOLT,SOCKET,6X14

BOLT,6MM

BOLT,SOCKET,6X23

DAMPER

WASHER,6.5X14X1
