Throttle(US,CN)

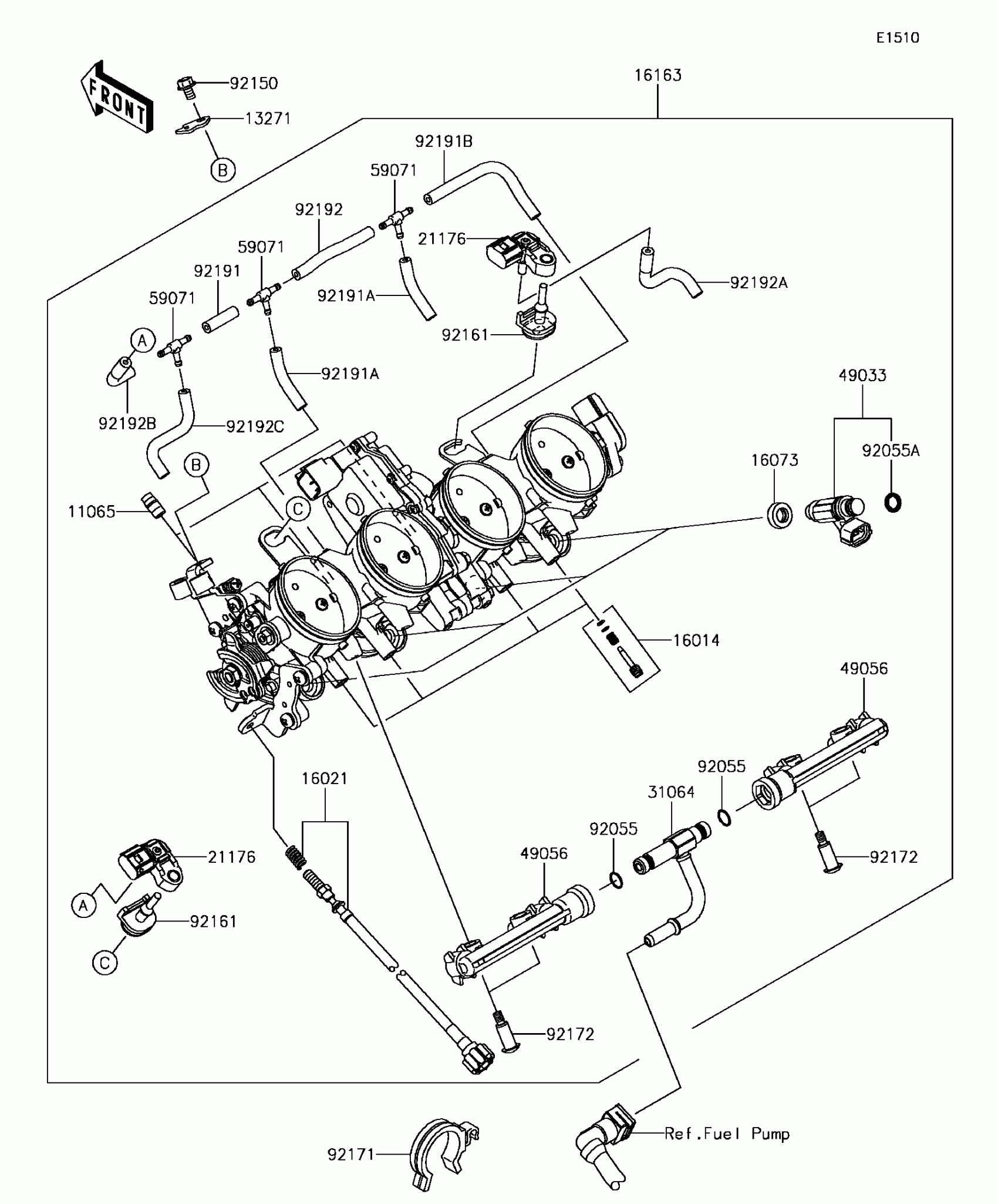

Kawasaki Ninja ZX-6R Throttle(US,CN) Diagram
#
Description
Price
11065
CAP
11065-0018
$6.12
13271
PLATE
13271-0559
$3.35
16014
SCREW-PILOT AIR
16014-0002
$25.16
16021
SCREW-THROTTLE STOP
16021-0028
$113.02
16073
INSULATOR
16073-3707
$6.18
16163
THROTTLE-ASSY,TTK38
16163-0772
$1,991.85
21176
SENSOR,PRESSURE
21176-0111
$222.28
31064
PIPE-COMP
31064-0622
$90.96
49033
NOZZLE-INJECTION
49033-0012
$132.64
49056
PIPE-INJECTION
49056-0014
$103.61
59071
JOINT,3WAY,T
59071-3752
$10.19
92055
RING-O
92055-0064
$7.65
92055A
RING-O,INJECTION NOZZLE
92055-1622
$1.95
92150
BOLT,5X8
92150-1406
$3.94
92161
DAMPER
92161-0673
$5.54
92171
CLAMP
92171-0359
$10.11
92172
SCREW,PIPE INJECTION
92172-0064
$2.80
92191
TUBE,3X7X25
92191-0020
$2.39
92191A
TUBE,3X7X40
92191-0022
$3.23
92191B
TUBE,3X7X100
92191-0023
$4.14
92192
TUBE,3X7X72
92192-0739
$8.37
92192A
TUBE,THROBO RH-SENSOR
92192-0840
$9.96
92192B
TUBE,THROBO LH-JOINT
92192-0841
$9.96
92192C
TUBE,SENSOR-JOINT
92192-0842
$9.96
