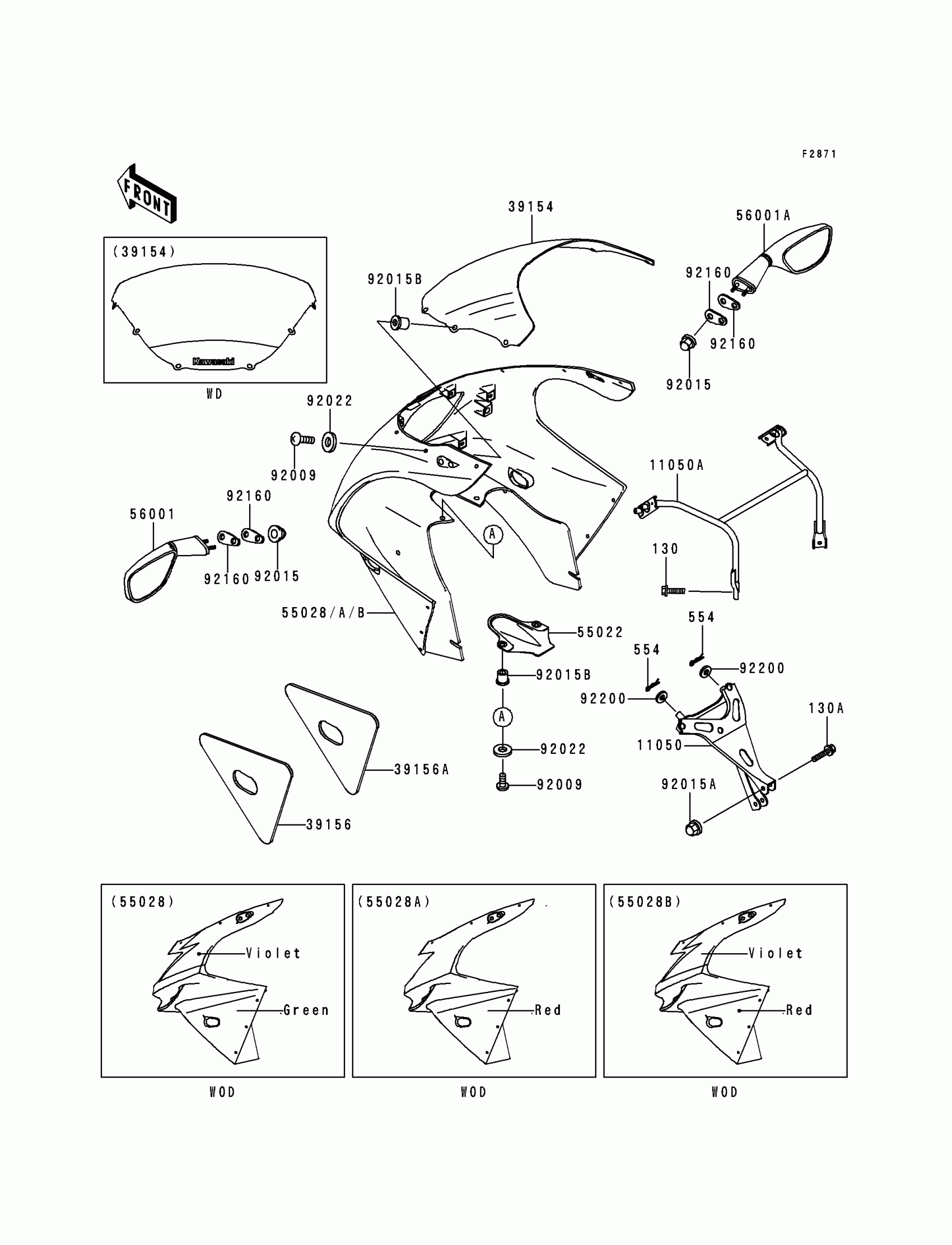

Kawasaki Ninja® ZX™-6R Cowling(ZX600-G1) Diagram

Description

Price

130

BOLT-FLANGED,6X14,BLACK

130J0614

$2.33

130A

BOLT-FLANGED,8X30

130J0830

$4.15

554

PIN-SNAP,12MM

554A1200

$3.57

11050

BRACKET,UPP COWLING

11050-1437

$182.00

11050A

BRACKET,MIRROR

11050-1640

$125.54

39154

WINDSHIELD

39154-5010

Unavailable

39156

PAD,UPP COWLING,LH

39156-1622

$13.63

39156A

PAD,UPP COWLING,RH

39156-1623

$13.63

55022

COVER-HEAD LAMP

55022-1082

Unavailable

55028

COWLING,UPP,GREEN/VIOLET

55028-1365-G9

$747.91

55028A

COWLING,UPP,S.RED

55028-1365-H1

Unavailable

56001

MIRROR-ASSY,LH

56001-1483

$117.69

56001A

MIRROR-ASSY,RH

56001-1484

$117.69

92009

SCREW,5X16,BLACK

92009-1654

$3.13

92015

NUT,CAP,6MM,BLACK

92015-1170

$0.64

92015A

NUT,CAP,8MM,BLACK

92015-1174

$5.00

92015B

NUT,WELL,5MM

92015-1757

$7.29

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$3.92

92160

DAMPER,MIRROR

92160-1089

$7.29

92200

WASHER,12.5X22X1.2

92200-1174

$4.13

55028B

COWLING,UPP,FIRECRACKER/VIOLET

55028-1365-H2

Unavailable
