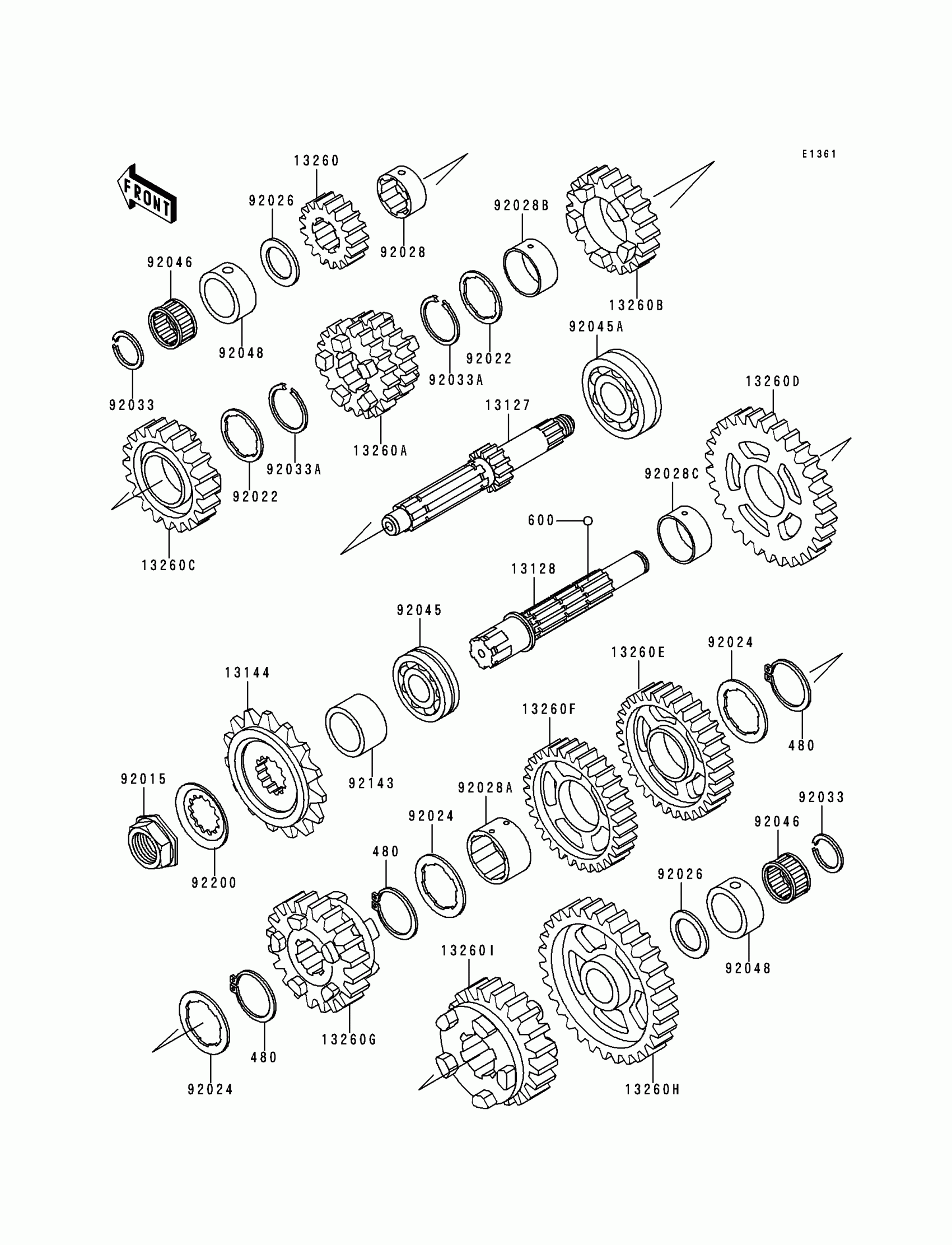

Kawasaki Ninja® ZX™-6 Transmission(ZX600DE069248&NAMI.) Diagram

#

Description
Price

480

CIRCLIP

480J2900

$6.22

600

BALL-STEEL,5/32

600A0500

$0.81

13127

SHAFT-TRANSMISSION INPUT,12T

13127-1230

$249.01

13128

SHAFT-TRANSMISSION OUTPUT

13128-1194

$245.57

13144

SPROCKET-OUTPUT,16T

13144-1212

$40.58

13260

GEAR,INPUT 2ND,16T

13260-1334

$129.22

13260A

GEAR,INPUT 3RD&4TH,21T&21T

13260-1413

$213.72

13260B

GEAR,INPUT 5TH,23T

13260-1414

$179.75

13260C

GEAR,INPUT TOP,24T

13260-1415

$179.75

13260D

GEAR,OUTPUT 2ND,34T

13260-1417

$179.75

13260E

GEAR,OUTPUT 3RD,35T

13260-1418

$179.75

13260F

GEAR,OUTPUT 4TH,29T

13260-1419

$179.75

13260G

GEAR,OUTPUT TOP,26T

13260-1421

$179.75

13260H

GEAR,OUTPUT LOW,38T

13260-1463

$179.75

13260I

GEAR,OUTPUT 5TH,28T

13260-1480

$179.75

92015

NUT,20MM

92015-1963

$14.90

92022

WASHER,TOOTHED,28.3X33.5X1

92022-1139

$7.22

92024

WASHER,TOOTHED,30.3X40X1.5

92024-043

$13.07

92026

SPACER,22X35.5X2.1

92026-1224

$9.57

92028

BUSHING,INPUT TOP GEAR

92028-1255

$40.34

92028A

BUSHING,OUTPUT 3RD&4TH

92028-1363

$45.49

92028B

BUSHING,INPUT GEAR

92028-1449

$25.59

92028C

BUSHING,OUTPUT 2ND

92028-1450

$28.99

92033

RING-SNAP,20X25.5X1.2

92033-025

$4.96

92033A

RING-SNAP,25.9X30.6X1.2

92033-1037

$4.65

92045

BEARING-BALL,83993SH2-CS

92045-035

$73.57

92045A

BEARING-BALL,6305N2SH2

92045-1224

$36.90

92046

BEARING-NEEDLE,FWF-223014

92046-031

$19.72

92048

RACE,NEEDLE BEARING

92048-1066

$34.85

92143

COLLAR,25X32X20

92143-1617

$27.50

92200

WASHER

92200-1065

$6.63
