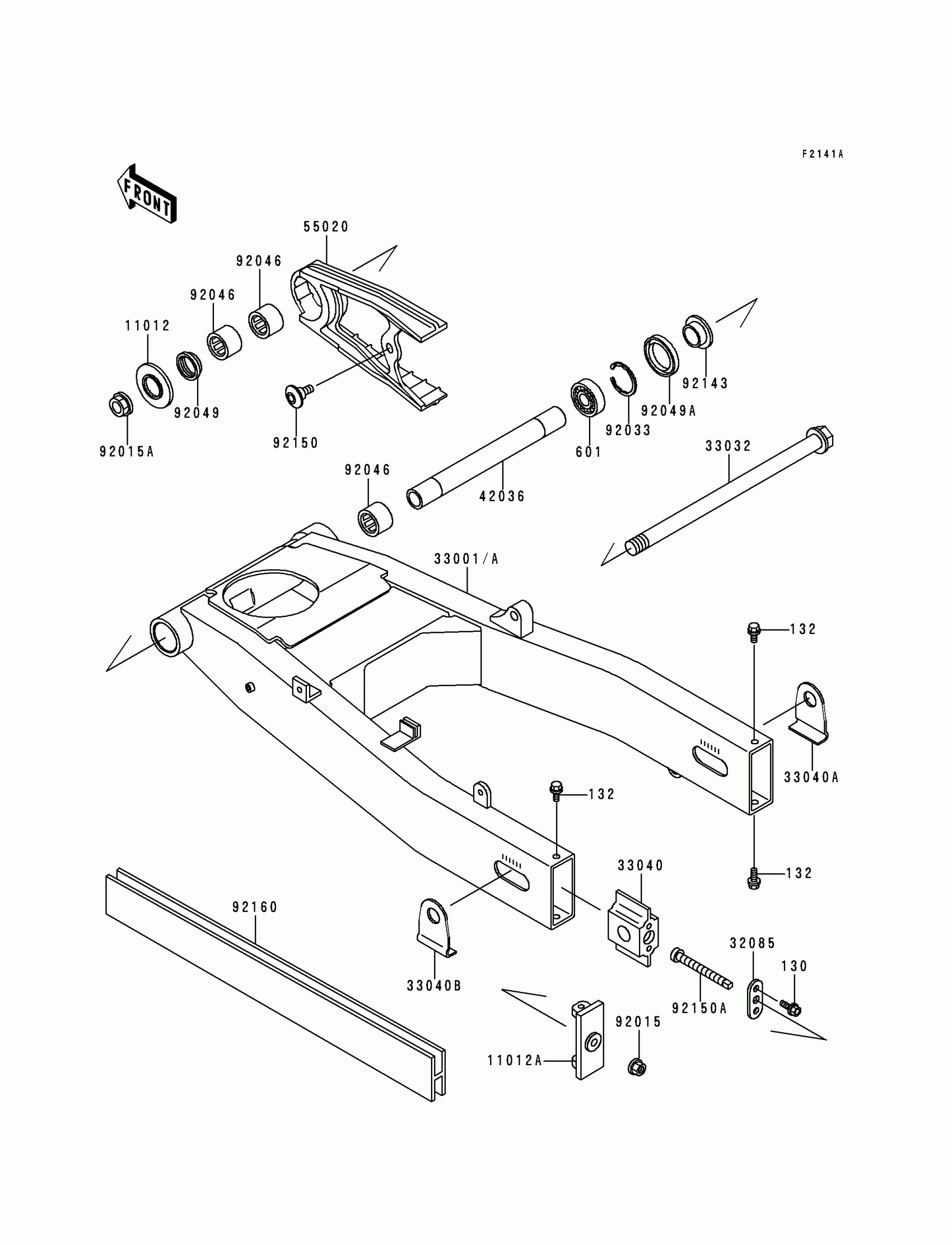

Kawasaki Ninja® ZX™-6 Swingarm(ZX600-E3) Diagram

#

Description
Price

130

BOLT-FLANGED,6X14

130H0614

Unavailable

132

BOLT-FLANGED-SMALL,6X12

132E0612

$4.41

601

BEARING-BALL,#6004

601A6004

$11.91

11012

CAP

11012-1658

$8.68

11012A

CAP,CHAIN ADJUSTER

11012-1704

$36.45

32085

STOPPER,CHAIN ADJUSTER

32085-1351

$6.15

33032

SHAFT-SWING ARM

33032-1165

$84.60

33040

ADJUSTER-CHAIN,INSIDE

33040-1133

$49.81

33040A

ADJUSTER-CHAIN,OUTSIDE,RH

33040-1135

$8.88

33040B

ADJUSTER-CHAIN,OUTSIDE,LH

33040-1141

$8.88

42036

SLEEVE,SWING ARM,L=213

42036-1283

$93.26

55020

GUARD,CHAIN

55020-1524

Unavailable

92015

NUT,8MM

92015-1143

$0.65

92015A

NUT,FLANGED,20MM

92015-1724

$14.90

92033

RING-SNAP,42MM

92033-1041

$6.16

92046

BEARING-NEEDLE,BM2817

92046-1111

$21.86

92049

SEAL-OIL,28X34X5.7

92049-1181

$9.28

92049A

SEAL-OIL,MHSA25X42X6

92049-1314

$13.75

92143

COLLAR,SWING ARM,L=12.5

92143-1227

$8.97

92150

BOLT,SOCKET,6MM

92150-1154

$7.84

92150A

BOLT,CHAIN ADJUSTER

92150-1285

$9.05

92160

DAMPER,SWING ARM

92160-1174

$91.10

33001

ARM-COMP-SWING,SILVER NO.35

33001-1488-TX

Unavailable

33001A

ARM-COMP-SWING,SILVER NO.35

33001-1488-VZ

Unavailable
