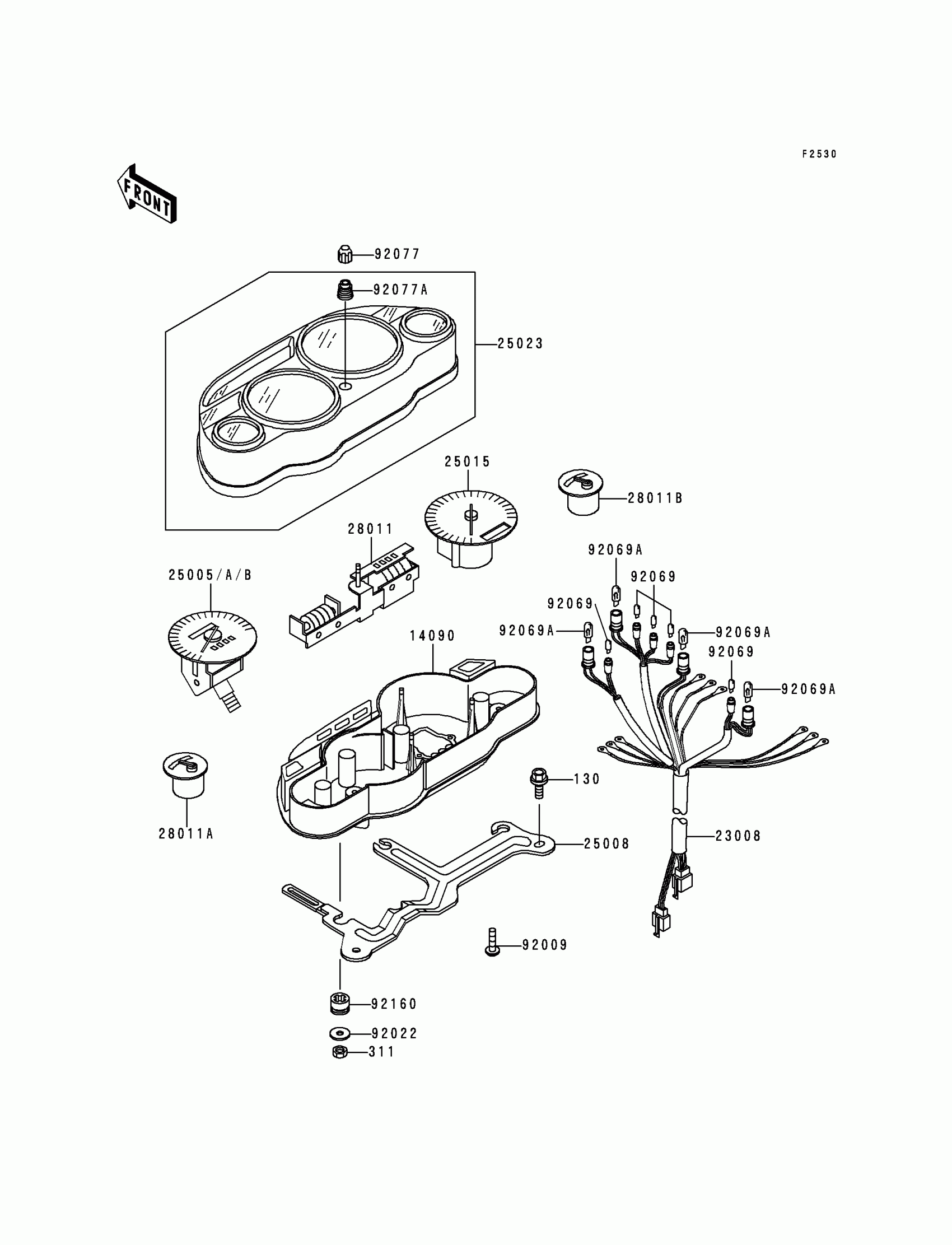

Kawasaki Ninja® ZX™-6 Meter(s) Diagram

Description

Price

130

BOLT-FLANGED,6X14,BLACK

130J0614

$2.33

311

NUT 6MM

311B0600

$0.93

14090

COVER,METER HOUSING

14090-1286

Unavailable

23008

SOCKET-ASSY,METER

23008-1504

Unavailable

25008

BRACKET-METER

25008-1195

$85.12

25015

TACHOMETER,X1000R/MIN

25015-1318

Unavailable

25023

COVER-METER CASE,UPP

25023-1201

$172.49

28011

METER,TRIP

28011-1130

$125.54

28011A

METER,FUEL

28011-1131

$125.54

28011B

METER,TEMP

28011-1132

$125.54

92009

SCREW,TAPPING,4X14

92009-1503

$3.65

92022

WASHER,6.2X18X1.2

92022-1369

$3.94

92069

BULB,12V 3.4W,T10

92069-1007

$5.00

92069A

BULB,12V 1.7W,T10

92069-1059

$4.96

92077

KNOB,TRIP RESET

92077-1094

$9.05

92077A

KNOB,TRIP RESET

92077-1112

$9.13

92160

DAMPER

92160-1436

$9.23

25005A

SPEEDOMETER,KPH

25005-1529

Unavailable

25005B

SPEEDOMETER,MPH

25005-1530

Unavailable
