Fuel Tank(ZX600-E2)

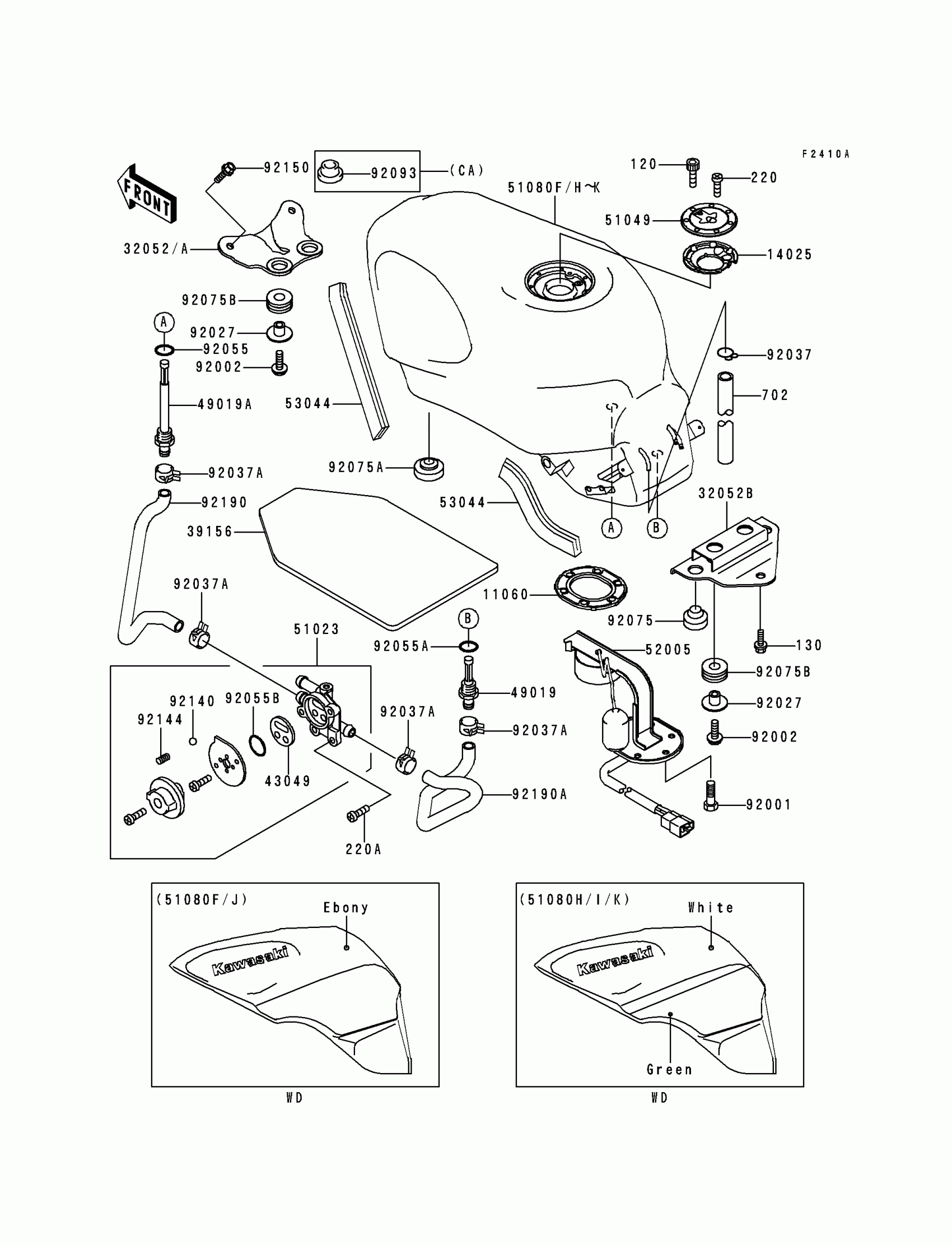

Kawasaki Ninja® ZX™-6 Fuel Tank(ZX600-E2) Diagram
#
11060
GASKET,FUEL GAUGE
11060-1337
$13.31
14025
COVER,TANK CAP
14025-1913
$21.55
32052B
BRACKET-TANK,RR
32052-1363
$42.51
39156
PAD,FUEL TANK
39156-1361
Unavailable
43049
PACKING,TAP VALVE
43049-1066
$7.26
49019
FILTER-FUEL
49019-1070
$18.46
49019A
FILTER-FUEL,"ON"
49019-1071
$18.69
51023
TAP-ASSY,FUEL
51023-1192
$132.21
51049
CAP-TANK,FUEL
51049-1091
$115.45
52005
GAUGE,FUEL
52005-1105
$183.14
53044
TRIM
53044-1137
$10.65
92001
BOLT,FUEL GAUGE
92001-1069
$7.24
120
BOLT-SOCKET,5X12
120S0512
$1.71
130
BOLT-FLANGED,8X20
130J0820
$0.83
220
SCREW-PAN-CROSS
220C0508
$0.55
220A
SCREW-PAN-CROS,6X8
220C0608
$1.81
702
TUBE-RUBBER,7X10X600
702A07600
$13.38
92002
BOLT,6X20
92002-1237
$4.31
92027
COLLAR,L=13.1
92027-251
Unavailable
92037
CLAMP,TUBE
92037-010
$3.92
92037A
CLAMP,HOSE CLIP
92037-1181
$3.36
92055
RING-O,ID=9.5
92055-1386
$3.92
92055A
RING-O,11.5X1.5
92055-1387
$3.92
92055B
RING-O,TAP LEVER
92055-1419
$5.00
92075
DAMPER
92075-015
$5.00
92075A
DAMPER
92075-157
$7.69
92075B
DAMPER,10X24X12
92075-1690
$5.00
92140
BALL,STAINLESS,5/32"
92140-1051
$4.74
92144
SPRING,FUEL TAP KNOB
92144-1212
$4.35
92150
BOLT,6X14
92150-1340
$5.07
92190
TUBE,TAP-FILTER
92190-1332
$15.74
92190A
TUBE,FUEL,RES
92190-1333
$17.88
32052
BRACKET-TANK,FR,SILVER NO.35
32052-1362-TX
Unavailable
32052A
BRACKET-TANK,FR,SILVER NO.35
32052-1362-VZ
Unavailable
51080F
TANK-COMP-FUEL,EBONY
51080-5068-H8
$1,028.90
51080H
TANK-COMP-FUEL,GREEN/WHITE
51080-5070-CK
Unavailable
51080I
TANK-COMP-FUEL,GREEN/WHITE
51080-5070-87
$762.71
51080J
TANK-COMP-FUEL,EBONY
51080-5073-H8
$533.96
51080K
TANK-COMP-FUEL,GREEN/WHITE
51080-5074-87
$762.71
92093
SEAL,FUEL TANK CAP
92093-1030
$7.77
