Cowling(ZX600-D2/D3)

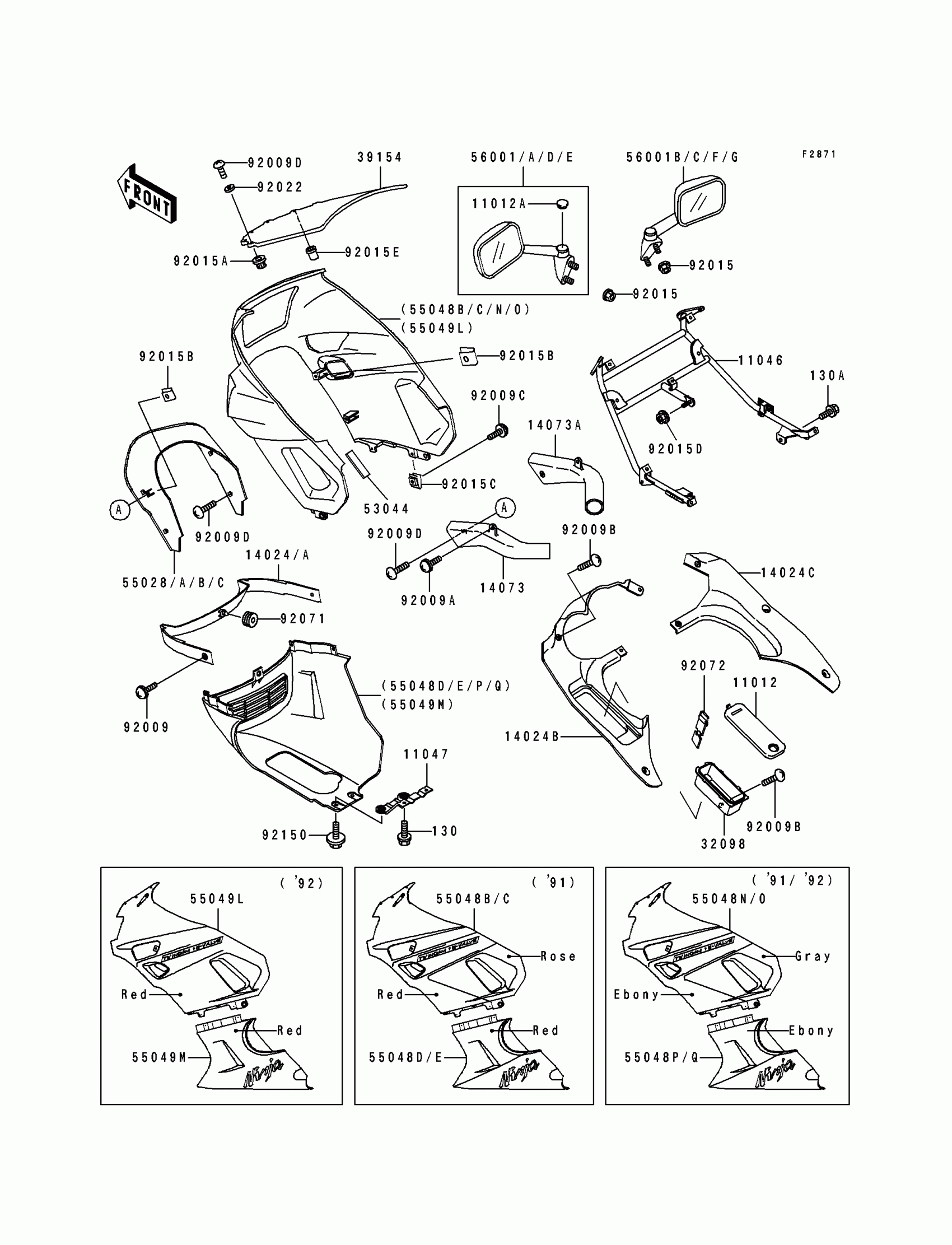

Kawasaki Ninja® ZX™-6 Cowling(ZX600-D2/D3) Diagram
#
11012
CAP,INNER COWLING,LH
11012-1735
$39.54
11012A
CAP,MIRROR,BLACK
11012-1751-6Z
$4.74
11046
BRACKET,COWLING
11046-1962
$389.55
11047
BRACKET,LWR COWLING
11047-1091
$25.19
14024
COVER,COWLING,CNT,G.GRAY
14024-1877-GD
Unavailable
14024A
COVER,COWLING,CNT,G.GRAY
14024-1877-HN
Unavailable
14024B
COVER,INNER COWLING,LH
14024-1901
Unavailable
14024C
COVER,INNER COWLING,RH
14024-1902
Unavailable
14073
DUCT,AIR INTAKE,LH
14073-1426
Unavailable
14073A
DUCT,AIR INTAKE,RH
14073-1427
Unavailable
32098
CASE-TOOL
32098-1093
$42.31
39154
WINDSHIELD
39154-1109
Unavailable
53044
TRIM,L=80
53044-1218
Unavailable
55028A
COWLING,FR,EBONY
55028-1244-H8
Unavailable
55028C
COWLING,FR,C.W.RED
55028-1244-TF
Unavailable
55048N
COWLING.,UPP,EBONY/GRAY
55048-5482-JP
Unavailable
55048O
COWLING.,UPP,EBONY/GRAY
55048-5482-T4
Unavailable
55048P
COWLING.,LWR,EBONY/GRAY
55048-5483-JP
Unavailable
55048Q
COWLING.,LWR,EBONY/GRAY
55048-5483-T4
Unavailable
55049L
COWLING.,UPP,C.W.RED
55049-5096-TF
Unavailable
55049M
COWLING.,LWR,C.W.RED
55049-5097-TF
Unavailable
56001D
MIRROR-ASSY,LH,C.W.RED
56001-1394-H3
Unavailable
56001E
MIRROR-ASSY,LH,EBONY
56001-1394-H8
$153.97
56001F
MIRROR-ASSY,RH,C.W.RED
56001-1395-H3
Unavailable
56001G
MIRROR-ASSY,RH,EBONY
56001-1395-H8
$153.97
92009
SCREW,6X14,WHITE
92009-1287
$2.55
92009A
SCREW,6X14
92009-1288
$3.92
92009B
SCREW,6X14
92009-1611
$4.39
92009C
SCREW,6X16
92009-1621
Unavailable
92009D
SCREW,5X16,BLACK
92009-1654
$3.13
92015
NUT,FLANGED,6MM,BLACK
92015-1233
$5.52
92015A
NUT,5MM,COWLING
92015-1343
$4.39
92015B
NUT,5MM
92015-1573
$6.63
92015C
NUT,6MM
92015-1602
$7.34
92015D
NUT,FLANGED,LOCK,8MM
92015-1696
$4.67
92015E
NUT,WELL,5MM
92015-1757
$7.29
92022
WASHER,NYLON,5.3X11.5X1.5
92022-1521
$3.92
92071
GROMMET
92071-056
$4.26
92072
BAND,L=300
92072-1235
$20.84
92150
BOLT,6X14
92150-1133
$4.31
130
BOLT-FLANGED,6X12
130J0612
$2.19
130A
BOLT-FLANGED,8X12
130J0812
$0.67
