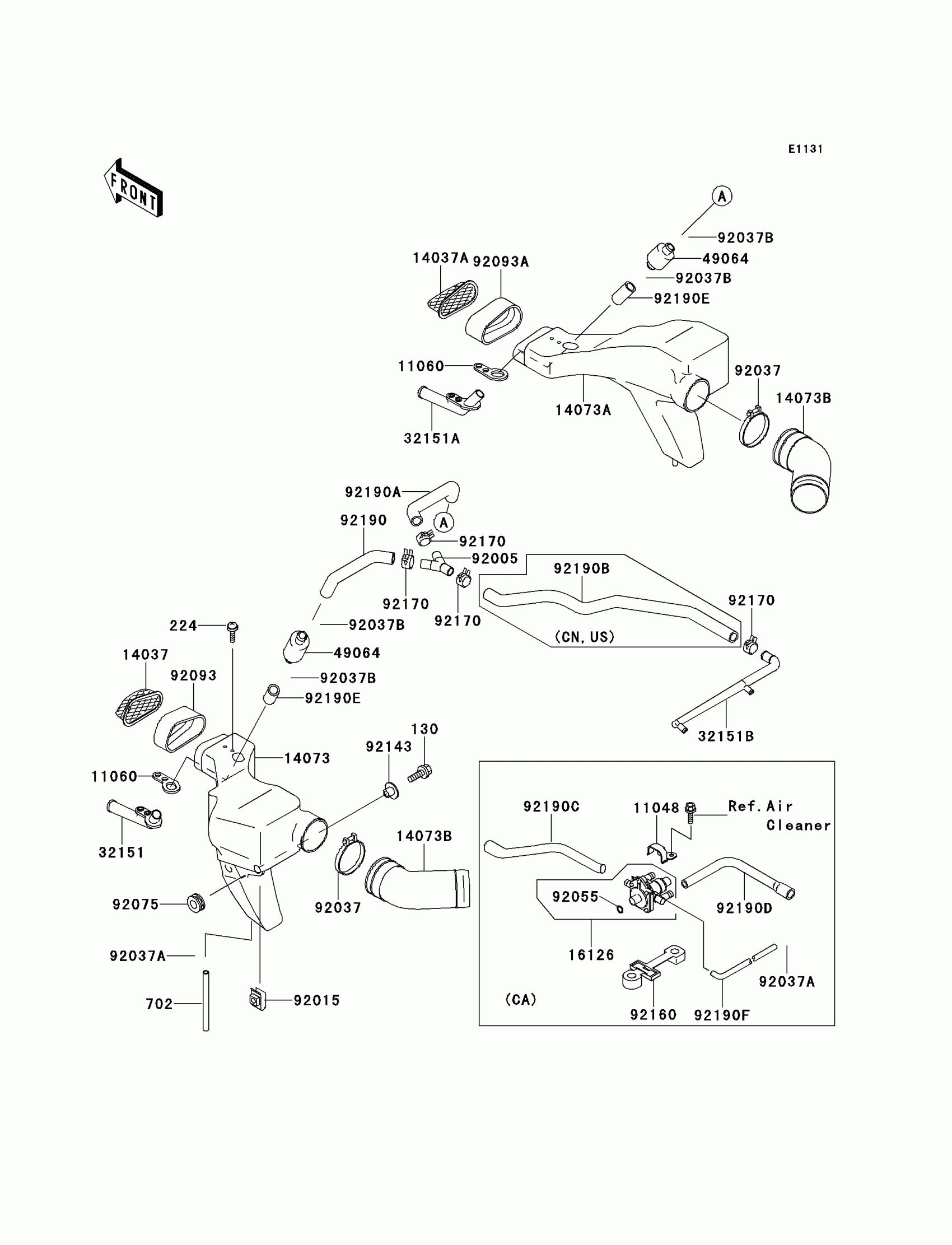

Kawasaki Ninja® ZX™-6 Air Duct Diagram

#

Description
Price

11060

GASKET

11060-1343

$5.17

14037

SCREEN,AIR DUCT,LH

14037-1166

$25.59

14037A

SCREEN,AIR DUCT,RH

14037-1167

$25.59

14073

DUCT,AIR INTAKE,LH

14073-1549

$68.48

14073A

DUCT,AIR INTAKE,RH

14073-1550

$68.48

14073B

DUCT,DUCT-AIR FILTER

14073-1574

$43.99

32151

PIPE,LH

32151-1462

$17.88

32151A

PIPE,RH

32151-1463

$17.88

32151B

PIPE

32151-1540

$83.35

49064

FILTER-AIR

49064-1055

$23.41

92005

FITTING,Y-TIPE

92005-1250

$10.97

92015

NUT,6MM

92015-1602

$7.34

92037

CLAMP,AIR FILTER

92037-1409

Unavailable

92037B

CLAMP,TUBE

92037-213

$4.31

92075

DAMPER

92075-1634

$4.69

92093

SEAL,LH

92093-1347

$10.97

92093A

SEAL,RH

92093-1348

$10.97

92143

COLLAR,L=9.6

92143-1016

$6.22

92170

CLAMP

92170-1060

$8.10

92190

TUBE,14X20X158,LH

92190-1413

$16.56

92190A

TUBE,14X20X158,RH

92190-1414

$16.56

130

BOLT-FLANGED,6X25

130H0625

Unavailable

224

SCREW-PAN-WP-CROS,5X12

224C0512

$3.84

702

TUBE-RUBBER,7X10X120

702A07120

$13.38

92190E

TUBE,14X20X28

92190-1429

$4.37

11048

BRACKET,VALVE

11048-1179

$8.76

16126

VALVE,CANISTER

16126-1274

$200.34

92037A

CLAMP

92037-1712

$5.00

92037A

CLAMP

92037-1712

$5.00

92055

RING-O

92055-1524

$4.62

92160

DAMPER

92160-1431

$8.93

92190B

TUBE,14X20X525

92190-1415

$40.34

92190C

TUBE,VALVE-FITTING

92190-1422

$29.32

92190D

TUBE,VALVE-FITTING

92190-1423

$21.87

92190F

TUBE,4X9X336

92190-1444

$14.89
