Fuel Tank(JGF/JHF)

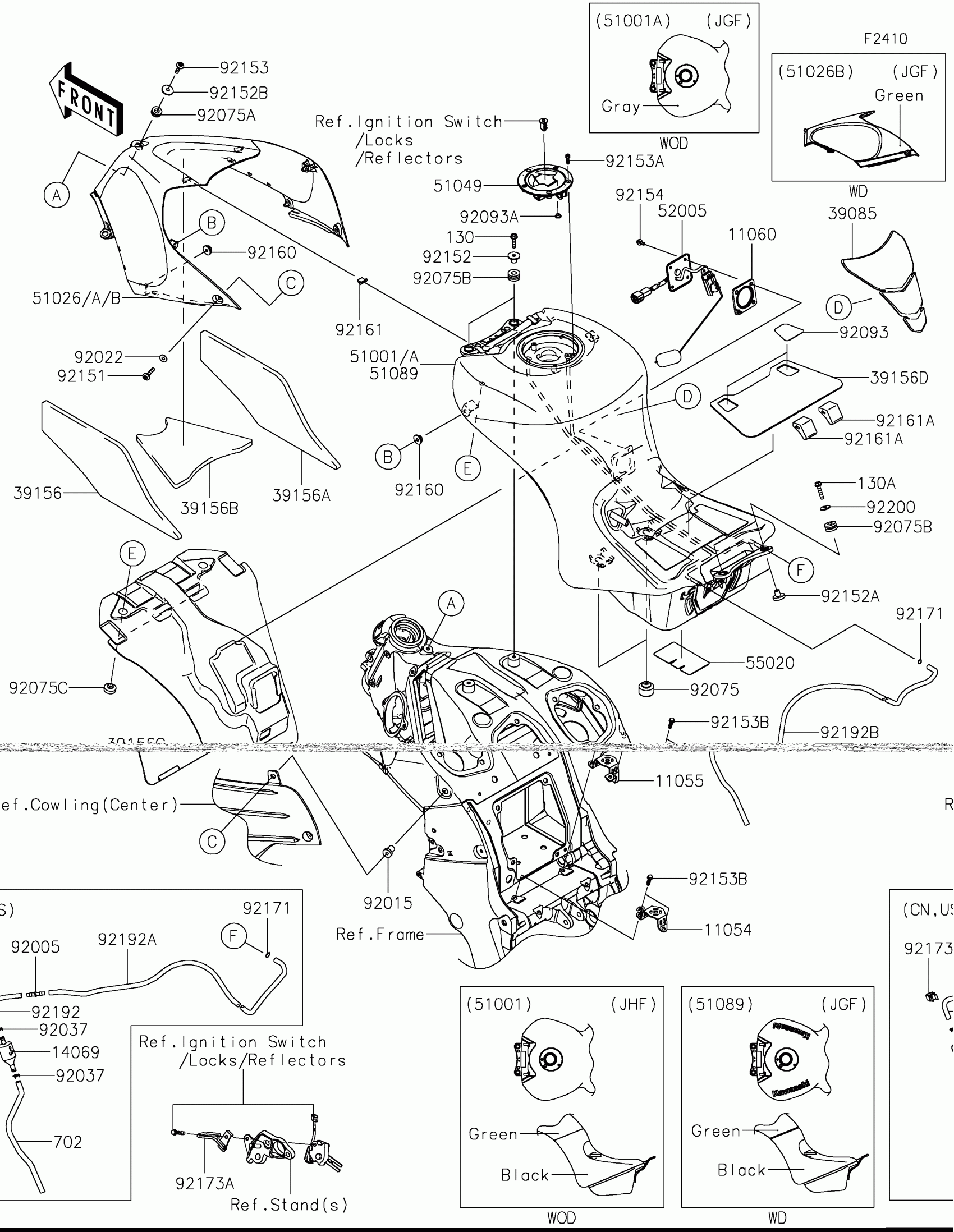

Kawasaki Ninja ZX-14R ABS SE Fuel Tank(JGF/JHF) Diagram
#
11054
BRACKET,FUEL TANK,CNT,LH
11054-0681
$9.67
11055
BRACKET,FUEL TANK,CNT,RH
11055-0063
$11.93
11060
GASKET,FUEL GAUGE
11060-1952
$21.19
14069
BREATHER
14069-0703
$6.89
39085
PAD-TANK
39085-0011
$120.02
39156
PAD,TANK COVER,LH
39156-0780
$20.99
39156A
PAD,TANK COVER,RH
39156-0781
$20.99
39156B
PAD,TANK COVER,CNT
39156-0782
$14.76
39156C
PAD
39156-0794
$70.09
39156D
PAD,FUEL TANK
39156-0863
$15.89
51001
TANK-COMP-FUEL,G.B.GREEN+BLK
51001-0752-45S
$2,100.46
51026
COVER TANK,FUEL,G.B.GREEN
51026-0008-40R
$279.44
51049
CAP-TANK,FUEL
51049-0715
$136.29
52005
GAUGE,FUEL
52005-0093
$210.02
55020
GUARD,FUEL TANK
55020-0551
$17.10
92005
FITTING
92005-0096
$10.21
92015
NUT,RUBBER,6MM
92015-1692
$7.34
92022
WASHER,6.5X16X1
92022-1143
$3.92
92037
CLAMP,TUBE
92037-147
$7.34
92075
DAMPER
92075-015
$5.00
92075A
DAMPER
92075-1634
$4.69
92075B
DAMPER,10X24X12
92075-1690
$5.00
92075C
DAMPER,9X24X14
92075-281
$6.22
92093
SEAL
92093-0583
$7.36
92093A
SEAL,FUEL TANK CAP
92093-1030
$7.77
92151
BOLT,SOCKET,6X30
92151-1605
$2.34
92152
COLLAR
92152-0048
$2.80
92152A
COLLAR
92152-0364
$11.30
92152B
COLLAR
92152-0424
$6.07
92153
BOLT,SOCKET,6X23
92153-1267
$2.80
92153A
BOLT,SOCKET,5X16
92153-1616
$1.34
130
BOLT-FLANGED,6X25
130BA0625
$1.20
130A
BOLT-FLANGED,6X30
130BA0630
$1.46
702
TUBE-RUBBER
702A07240
$13.38
92153B
BOLT,FLANGED,6X20
92153-1694
$2.15
92154
BOLT,FLANGED,5X12
92154-1856
$1.78
92160
DAMPER
92160-1613
$3.74
92161
DAMPER
92161-0365
$5.33
92161A
DAMPER
92161-1481
$13.18
92171
CLAMP
92171-0573
$1.34
92171
CLAMP
92171-0573
$1.34
92173
CLAMP,PIPE
92173-0985
$4.41
92173A
CLAMP
92173-1029
$21.48
92192
TUBE,BREATHER,INNER
92192-0615
$6.68
92192A
TUBE,BREATHER,UPP
92192-0648
$19.74
92192B
TUBE,DRAIN,6X9X895
92192-1675
$15.57
92200
WASHER,6.5X20X1.6
92200-0283
$1.40
