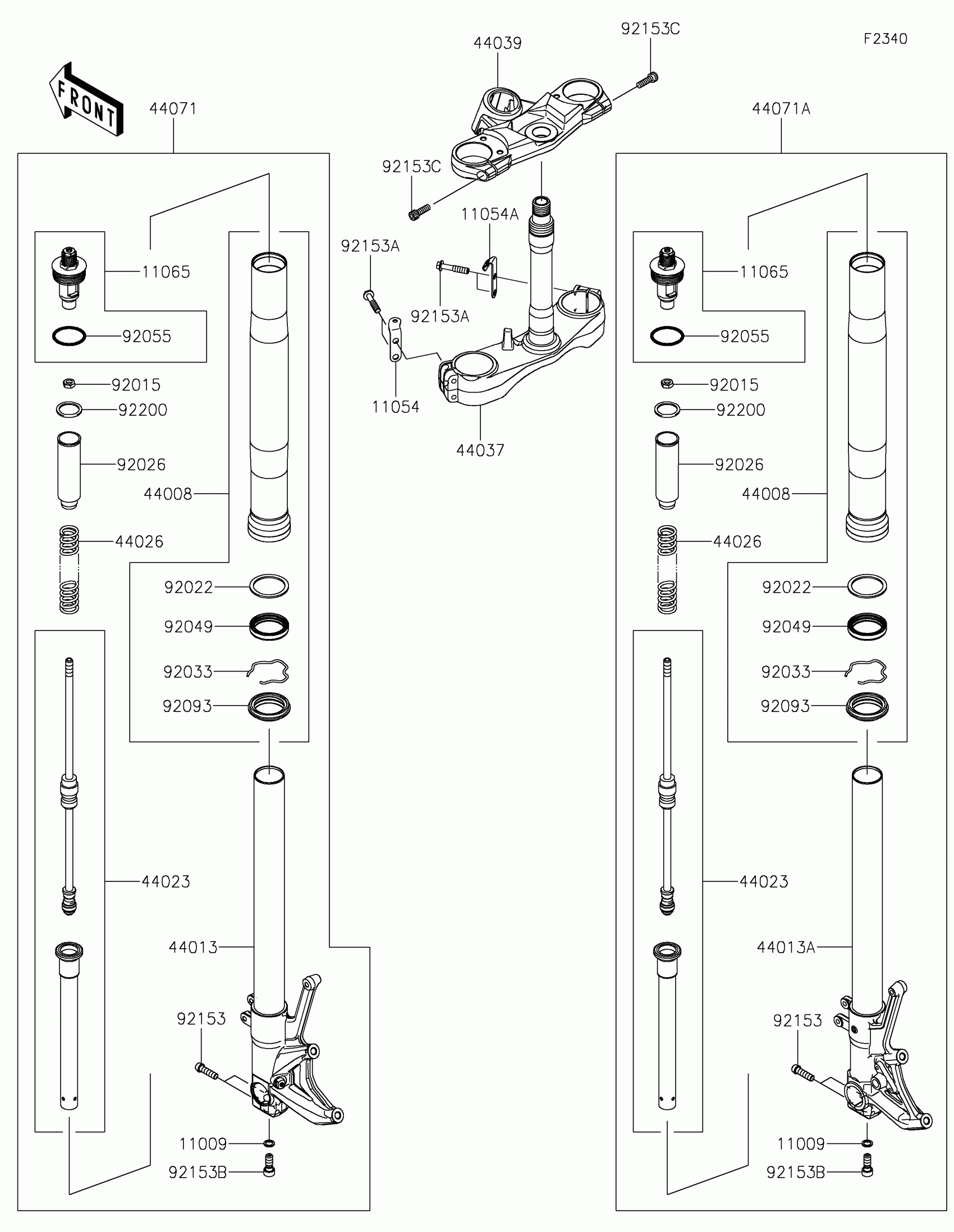

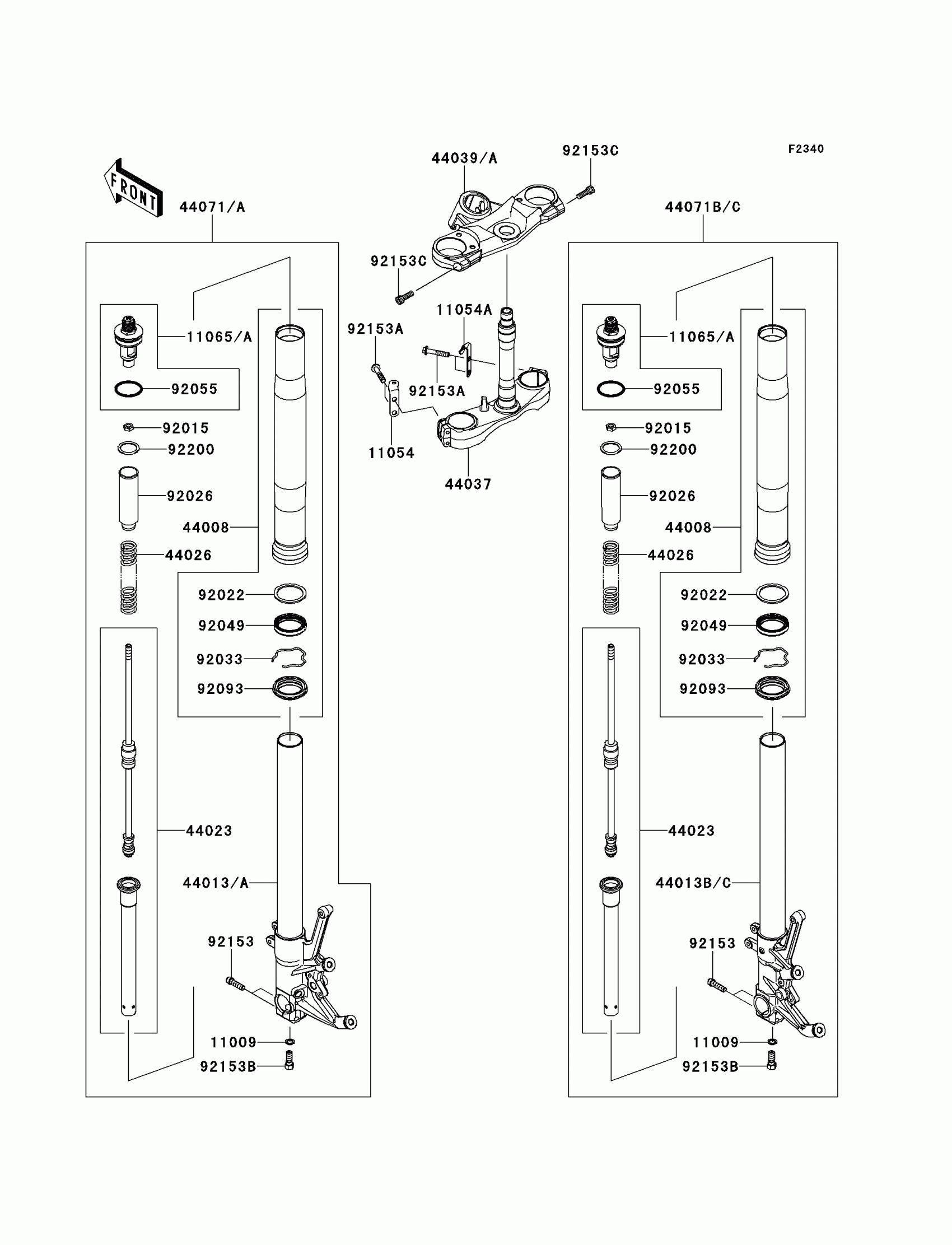

Kawasaki NINJA® ZX™-14R ABS Front Fork Diagram

#

Description
Price

11009

GASKET,10.5X15X1.5

11009-1325

Unavailable

11054

BRACKET,HARNESS CLAMP,LH

11054-0480

$10.30

11054A

BRACKET,UNDER BRACKET,RH

11054-0481

$10.30

11065A

CAP,P.AJ RED+T.AJ GOLD

11065-0757-44B

$228.67

44008

PIPE-FORK OUTER,A.BLACK

44008-0052-499

$478.20

44013A

PIPE-FORK INNER,LH,BLK/RED

44013-0185-44D

$648.78

44013C

PIPE-FORK INNER,RH,BLK/RED

44013-0186-44D

$648.78

44023

CYLINDER-SET-FORK

44023-0096

$444.85

44026

SPRING-FRONT FORK

44026-0160

$117.05

44037

HOLDER-FORK UNDER

44037-0039

$730.28

44039A

HOLDER-FORK UPPER,F.S.BLACK

44039-0113-40S

$336.47

44071A

DAMPER-ASSY,FORK,CAP RED,LH

44071-5139

$1,241.69

44071C

DAMPER-ASSY,FORK,CAP RED,RH

44071-5141

$1,241.69

92015

NUT

92015-1905

$19.64

92022

WASHER

92022-1299

$8.58

92026

SPACER

92026-0736

$15.80

92033

RING-SNAP

92033-1077

$4.96

92049

SEAL-OIL,FORK OUTER TUBE

92049-1522

$23.16

92055

RING-O,FORK,AIR TUBE

92055-1333

$6.00

92093

SEAL,FORK OUTER TUBE

92093-1480

$18.58

92153

BOLT,SOCKET,8X40

92153-0006

$3.26

92153A

BOLT,FLANGED,8X40

92153-0484

$3.29

92153B

BOLT,SOCKET,10X25

92153-0548

$5.57

92153C

BOLT,SOCKET,8X25

92153-1625

$4.65

92200

WASHER

92200-0085

$7.63
