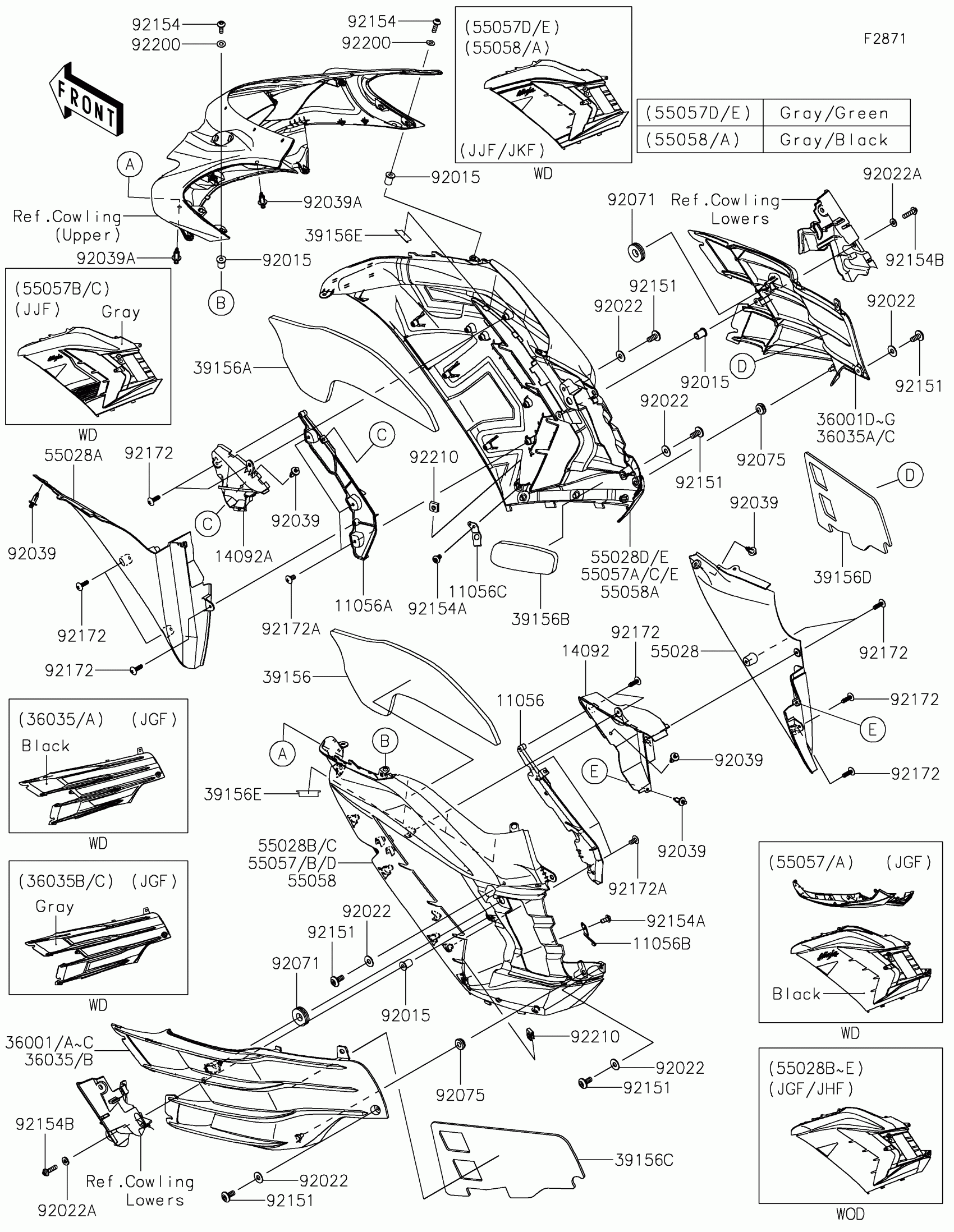

Kawasaki NINJA® ZX™-14R ABS Cowling(Center)(JGF-JKF) Diagram

#

Description
Price

11056

BRACKET,SIDE COWLING,LH

11056-1343

$27.80

11056A

BRACKET,SIDE COWLING,RH

11056-1344

$27.80

11056B

BRACKET,LWR COWLING,LH

11056-1366

$5.65

11056C

BRACKET,LWR COWLING,RH

11056-1367

$5.65

14092

COVER,SIDE COWLING,LH

14092-0861

$42.12

14092A

COVER,SIDE COWLING,RH

14092-0986

$25.44

36001

COVER-SIDE,LH,P.M.GRAY

36001-0568-10H

$274.55

36001D

COVER-SIDE,RH,P.M.GRAY

36001-0569-10H

$274.55

39156

PAD,SIDE COWLING,LH

39156-0783

$20.44

39156A

PAD,SIDE COWLING,RH

39156-0784

$20.44

39156B

PAD,SIDE COWLING,RH,LWR

39156-0785

$7.51

39156C

PAD,SIDE COVER,LH

39156-0877

$20.99

39156D

PAD,SIDE COVER,RH

39156-0878

$20.99

39156E

PAD

39156-0911

$5.29

55028

COWLING,FR,LH

55028-0383

$80.77

55028A

COWLING,FR,RH

55028-0457

$92.44

55058

COWLING,SIDE,LH,P.M.GRAY+BLK

55058-5306-27U

$995.12

55058A

COWLING,SIDE,RH,P.M.GRAY+BLK

55058-5307-27U

$995.12

92015

NUT,WELL,5MM

92015-1757

$7.29

92022

WASHER,6.5X16X1

92022-1143

$3.92

92022A

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$3.92

92039

RIVET

92039-0051

$4.65

92039A

RIVET

92039-0060

$3.39

92071

GROMMET

92071-056

$4.26

92075

DAMPER,6X16X7

92075-1011

$7.33

92151

BOLT,SOCKET,6X14

92151-1654

$1.83

92154

BOLT,SOCKET,5X16

92154-0209

$2.75

92154A

BOLT,SOCKET,5X10

92154-0211

$2.12

92154B

BOLT,SOCKET,5X20

92154-0829

$2.67

92172

SCREW,TAPPING,5X16

92172-0238

$1.00

92172A

SCREW,TAPPING,5X10

92172-0262

$1.34

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

$1.86

92210

NUT

92210-0571

$3.52
