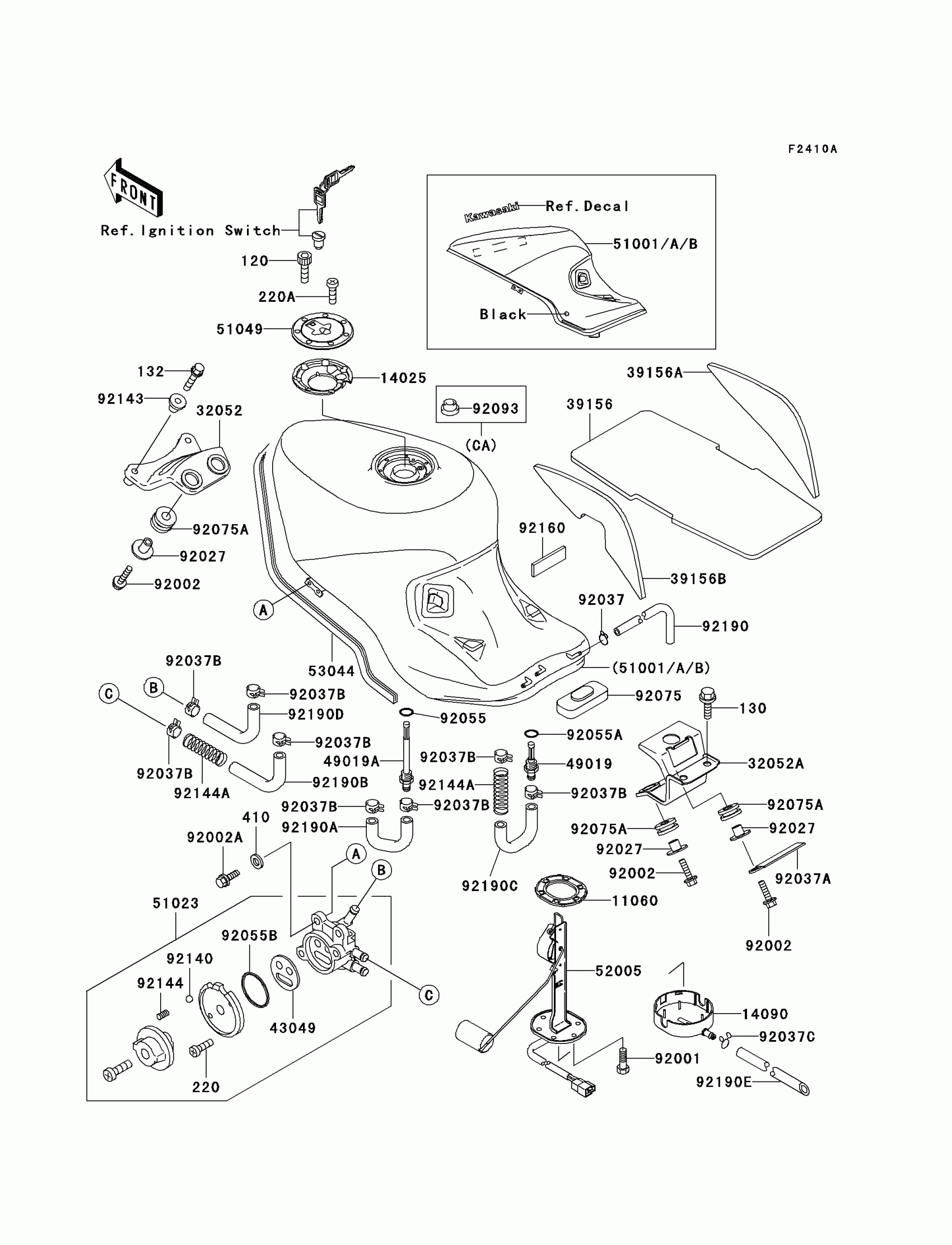

Kawasaki Ninja® ZX™-11 Fuel Tank(ZX1100-D2) Diagram

#

Description
Price

11060

GASKET,FUEL GAUGE

11060-1337

$13.31

14025

COVER,TANK CAP

14025-1913

$21.55

14090

COVER,FUEL GAUGE

14090-1310

$19.45

32052

BRACKET-TANK,FR

32052-1370

$29.51

32052A

BRACKET-TANK,RR

32052-1371

$27.51

39156

PAD,FUEL TANK,CNT

39156-1334

$61.19

39156A

PAD,FUEL TANK,RH

39156-1335

$29.24

39156B

PAD,FUEL TANK,LH

39156-1336

$29.24

43049

PACKING,TAP VALVE

43049-1066

$7.26

49019

FILTER-FUEL

49019-1070

$18.46

49019A

FILTER-FUEL,"ON"

49019-1076

$19.60

51023

TAP-ASSY,FUEL

51023-1195

$141.02

51049

CAP-TANK,FUEL

51049-1091

$115.45

52005

GAUGE,FUEL

52005-1106

$170.54

53044

TRIM,L=1930

53044-1268

$49.29

92001

BOLT,FUEL GAUGE

92001-1069

$7.24

92002

BOLT,6X20

92002-1237

$4.31

92002A

BOLT,6X14

92002-1700

$6.27

92027

COLLAR,L=13.1

92027-251

Unavailable

120

BOLT-SOCKET,5X12

120S0512

$1.71

130

BOLT-FLANGED,8X20

130J0820

$0.83

132

BOLT-FLANGED-SMALL,6X35

132J0635

$3.84

220

SCREW-PAN-CROS,3X8

220B0308

$0.59

220A

SCREW-PAN-CROSS

220C0508

$0.55

410

WASHER-PLAIN-SMALL,6MM,BLACK

410F0600

$0.72

92037

CLAMP,TUBE

92037-010

$3.92

92037A

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92037B

CLAMP,HOSE CLIP

92037-1181

$3.36

92037C

CLAMP,TUBE

92037-147

$7.34

92055

RING-O,ID=9.5

92055-1386

$3.92

92055A

RING-O,11.5X1.5

92055-1387

$3.92

92055B

RING-O,TAP LEVER

92055-1419

$5.00

92075

DAMPER,FUEL TANK,RR

92075-1114

$16.72

92075A

DAMPER,10X24X12

92075-1690

$5.00

92140

BALL,STAINLESS,5/32"

92140-1051

$4.74

92143

COLLAR,L=6.6

92143-1088

$5.33

92144

SPRING,FUEL TAP KNOB

92144-1212

$4.35

92144A

SPRING,TUBE PROTECTOR

92144-1722

$5.18

92160

DAMPER

92160-3720

$13.43

92190

TUBE,5X8X230

92190-1365

Unavailable

92190A

TUBE,"ON",FILTER-TANK

92190-1424

$6.50

92190B

TUBE,"ON",TANK-TAP

92190-1425

$9.24

92190C

TUBE,"RES",FILTER-TANK

92190-1426

$9.24

92190D

TUBE,"RES",TANK-TAP

92190-1427

$9.24

92190E

TUBE,7X10X230

92190-1434

$13.38

51001

TANK-COMP-FUEL,P.G.BLACK

51001-1400-RL

Unavailable

51001A

TANK-COMP-FUEL,P.G.BLACK

51001-1400-86

Unavailable

51001B

TANK-COMP-FUEL,P.G.BLACK

51001-1401-86

$528.90

92093

SEAL,FUEL TANK CAP

92093-1030

$7.77
