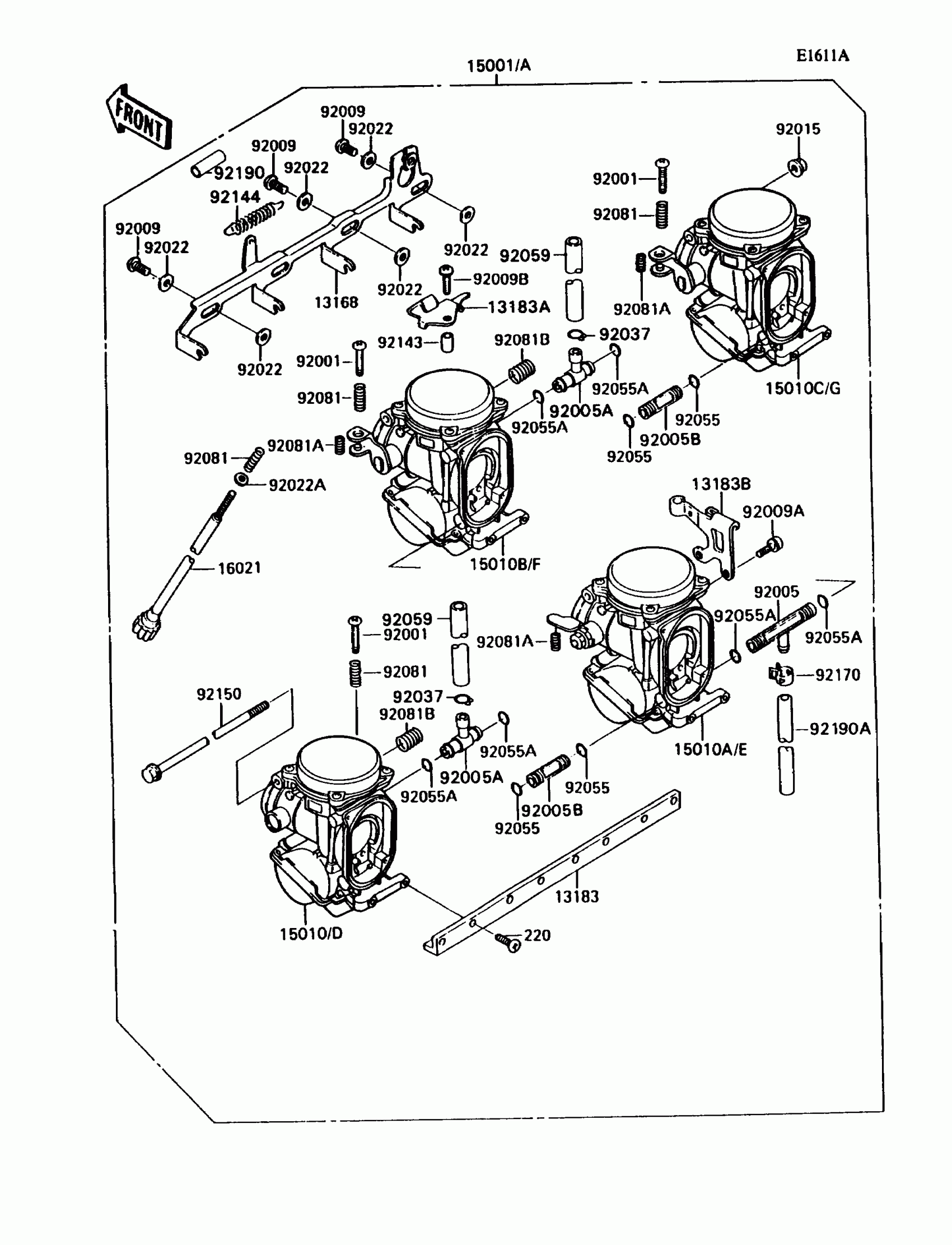

Kawasaki Ninja® ZX™-11 Carburetor(ZXT10CE015043&NAMI.) Diagram

#

Description
Price

13168

LEVER,STARTER

13168-1405

$123.31

13183

PLATE,CARBURETOR,STAY

13183-1321

Unavailable

13183A

PLATE,STARTER CABLE

13183-1592

$39.20

13183B

PLATE,THROTTLE CABLE

13183-1606

Unavailable

15001

CARBURETOR-ASSY

15001-1746

$2,441.82

15010

CARBURETOR,LH,OUTSIDE

15010-1281

$709.39

15010A

CARBURETOR,LH,INSIDE

15010-1282

$709.39

15010B

CARBURETOR,RH,INSIDE

15010-1283

$709.39

15010C

CARBURETOR,RH,OUTSIDE

15010-1284

$709.39

16021

SCREW-THROTTLE STOP

16021-1131

$110.44

92001

BOLT,THROTTLE ADJUST

92001-1998

$16.94

92005

FITTING,FUEL,T-TYPE

92005-1108

$25.80

92005A

FITTING,T-TYPE

92005-1125

$25.81

92005B

FITTING

92005-1157

$33.74

92009

SCREW

92009-1262

$6.61

92009A

SCREW,5X10

92009-1365

$7.34

92009B

SCREW,4X18

92009-1632

$6.15

92015

NUT,FLANGED,5MM

92015-1259

$3.92

92022

WASHER,6.1X11X0.8,POLYACETAL

92022-1199

$4.60

92022A

WASHER,PLAIN,STOP SPRING

92022-1480

$5.00

92037

CLAMP,TUBE

92037-1194

$6.15

92055

RING-O

92055-1004

$4.31

92055A

RING-O

92055-1223

$5.52

92059

TUBE,7X11X45

92059-1738

$27.08

92081

SPRING

92081-1620

$4.96

92081A

SPRING,THROTTLE ADJUST LWR

92081-1621

$5.18

92081B

SPRING,THROTTLE ADJUST CNT

92081-1622

$10.67

92143

COLLAR,4X5.2X9.6

92143-1265

$7.35

92144

SPRING,STARTER LEVER

92144-1518

$24.34

92150

BOLT,5X305

92150-1211

$31.88

92170

CLAMP,TUBE

92170-1051

$8.98

92190

TUBE,STARTER SPRING

92190-1157

$9.50

92190A

TUBE,7.3X12.5X127

92190-1161

$27.42

220

SCREW-PAN-CROS,5X14

220D0514

$4.04
