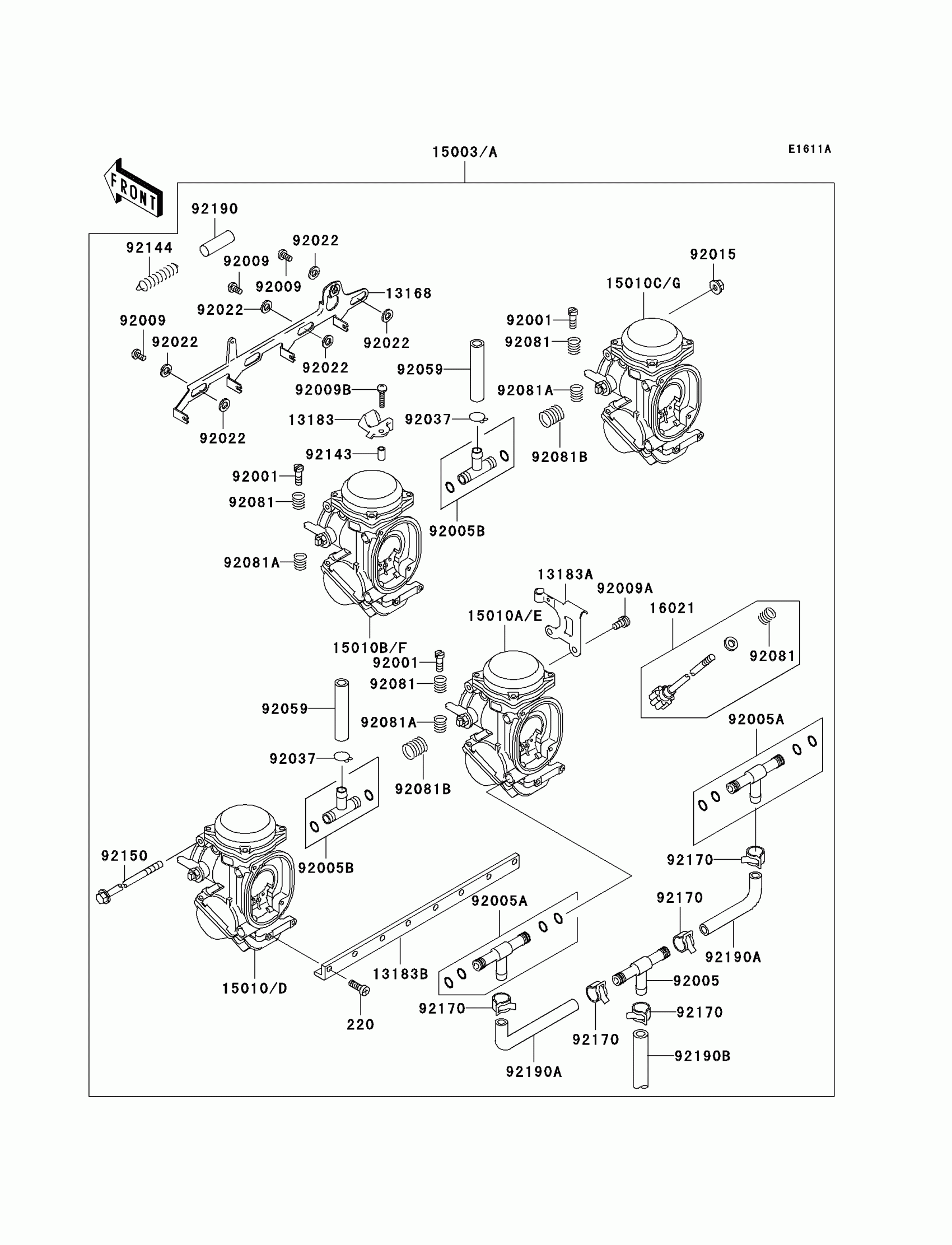

Kawasaki Ninja® ZX™-11 Carburetor(ZX1100-D2/D3) Diagram

#

Description
Price

13168

LEVER,STARTER

13168-1405

$123.31

13183

PLATE,STARTER CABLE

13183-1592

$39.20

13183A

PLATE,THROTTLE CABLE

13183-1606

Unavailable

13183B

PLATE,CARBURETOR,LWR

13183-1727

Unavailable

16021

SCREW-THROTTLE STOP

16021-1190

$118.09

92001

BOLT,THROTTLE ADJUST

92001-1998

$16.94

92005

FITTING,T-TYPE

92005-1119

$24.61

92005A

FITTING

92005-1294

$35.82

92005B

FITTING

92005-1306

$26.61

92009

SCREW

92009-1262

$6.61

92009A

SCREW,5X10

92009-1365

$7.34

92009B

SCREW,4X18

92009-1632

$6.15

92015

NUT,FLANGED,5MM

92015-1259

$3.92

92022

WASHER,6.1X11X0.8,POLYACETAL

92022-1199

$4.60

92037

CLAMP,TUBE

92037-1531

$5.52

92059

TUBE,7X11X45

92059-1738

$27.08

92081

SPRING

92081-1620

$4.96

92081A

SPRING,THROTTLE ADJUST LWR

92081-1621

$5.18

92081B

SPRING,THROTTLE ADJUST CNT

92081-1622

$10.67

92143

COLLAR,4X5.2X9.6

92143-1265

$7.35

92144

SPRING,STARTER LEVER

92144-1518

$24.34

220

SCREW-PAN-CROS,5X14

220D0514

$4.04

92150

BOLT,5X305

92150-1211

$31.88

92170

CLAMP,TUBE

92170-1051

$8.98

92190

TUBE,STARTER SPRING

92190-1157

$9.50

92190A

TUBE,L=110

92190-1165

$37.85

92190B

TUBE,7.3X12.5X89

92190-1466

$27.42

15003

CARBURETOR-ASSY

15003-1178

Unavailable

15003A

CARBURETOR-ASSY

15003-1182

Unavailable

15010

CARBURETOR,LH.OUTSIDE

15010-1840

Unavailable

15010A

CARBURETOR,LH.INSIDE

15010-1841

Unavailable

15010B

CARBURETOR,RH.INSIDE

15010-1842

$664.80

15010C

CARBURETOR,RH.OUTSIDE

15010-1843

Unavailable

15010D

CARBURETOR,LH,OUTSIDE

15010-1880

Unavailable

15010E

CARBURETOR,LH,INSIDE

15010-1881

Unavailable

15010F

CARBURETOR,RH,INSIDE

15010-1882

Unavailable

15010G

CARBURETOR,RH,OUTSIDE

15010-1883

Unavailable
