Fuel Tank(JBF-JDF)

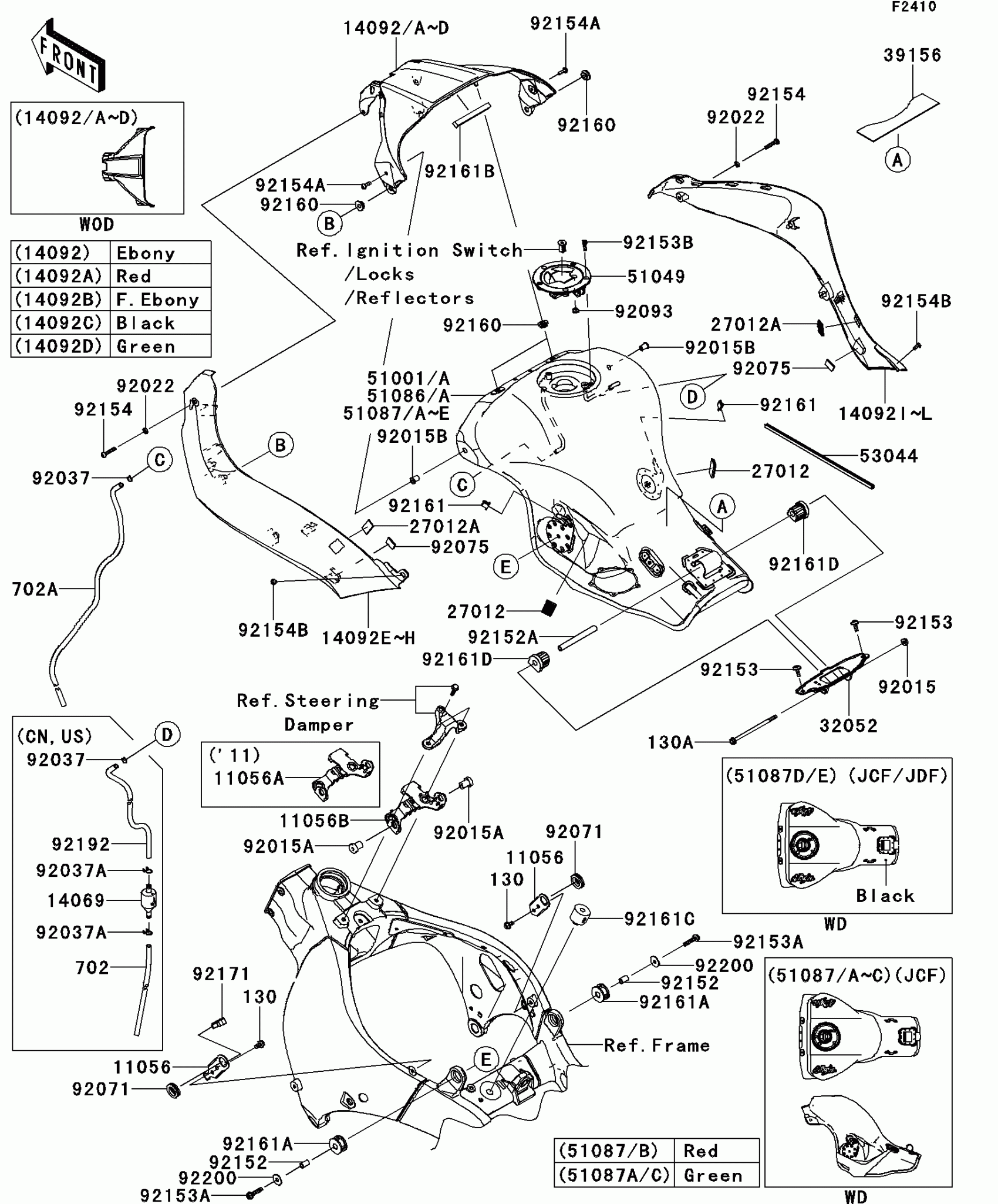

Kawasaki NINJA® ZX™-10R Fuel Tank(JBF-JDF) Diagram
#
11056
BRACKET,TANK COVER,SIDE
11056-0242
$7.98
11056B
BRACKET,TANK COVER,FR
11056-1655
$11.87
14069
BREATHER,FUEL TANK
14069-1004
$10.19
14092C
COVER,TANK,CNT,M.S.BLACK
14092-0786-660
$174.63
14092F
COVER,TANK,LH,P.F.S.WHITE
14092-0787-40X
$215.18
14092H
COVER,TANK,LH,L.GREEN
14092-0787-777
$215.18
14092J
COVER,TANK,RH,P.F.S.WHITE
14092-0788-40X
$215.18
14092L
COVER,TANK,RH,L.GREEN
14092-0788-777
$205.31
27012
HOOK
27012-0170
$5.54
27012A
HOOK
27012-0171
$5.91
32052
BRACKET-TANK
32052-0154
$36.45
39156
PAD,40X180X1.0
39156-0745
$19.13
51049
CAP-TANK,FUEL
51049-0030
$128.39
51087D
TANK-COMP-FUEL,M.S.BLACK
51087-5336-660
$1,213.52
51087E
TANK-COMP-FUEL,M.S.BLACK
51087-5337-660
$1,217.18
53044
TRIM
53044-1296
$11.99
92015
NUT,FLANGED,6MM
92015-1367
$3.69
92015A
NUT,RUBBER,6MM
92015-1692
$7.34
92015B
NUT,WELL,5MM
92015-1757
$7.29
92022
WASHER-PLAIN
92022-183
$3.92
92037
CLAMP,TUBE
92037-010
$3.92
92037
CLAMP,TUBE
92037-010
$3.92
92037A
CLAMP,TUBE
92037-147
$7.34
92071
GROMMET
92071-1043
$5.46
92075
DAMPER
92075-1982
$4.39
92093
SEAL,FUEL TANK CAP
92093-1030
$7.77
92152
COLLAR,6.8X10X18.5
92152-0883
$2.34
92152A
COLLAR,6.8X10X60
92152-1182
$4.83
92153
BOLT,SOCKET,6X16
92153-1526
$1.78
92153A
BOLT,FLANGED,6X28
92153-1580
$2.15
92153B
BOLT,SOCKET,5X16
92153-1616
$1.34
92154
BOLT,SOCKET,6X30
92154-0206
$2.75
92154A
BOLT,SOCKET,5X16
92154-0209
$2.75
92154B
BOLT,SOCKET,5X10
92154-0211
$2.12
92160
DAMPER
92160-1613
$3.74
92161
DAMPER
92161-0365
$5.33
92161A
DAMPER,10X30X16
92161-0869
$4.41
92161B
DAMPER,10X90X10
92161-0963
$1.94
92161C
DAMPER
92161-1116
$9.19
92161D
DAMPER,FUEL TANK,RR
92161-1330
$6.18
92171
CLAMP
92171-0782
$3.90
92192
TUBE,6X9X(770)
92192-0975
$11.01
92200
WASHER,6.5X22X1.6
92200-1087
$3.94
130
BOLT-FLANGED,6X12
130AA0612
$0.68
130A
BOLT-FLANGED,6X75
130BA0675
$1.63
702
TUBE-RUBBER,6X200
702A06200
$8.98
702A
TUBE-RUBBER,6X9X750
702A06750
$21.97
