- NINJA H2™R
Valve(s)

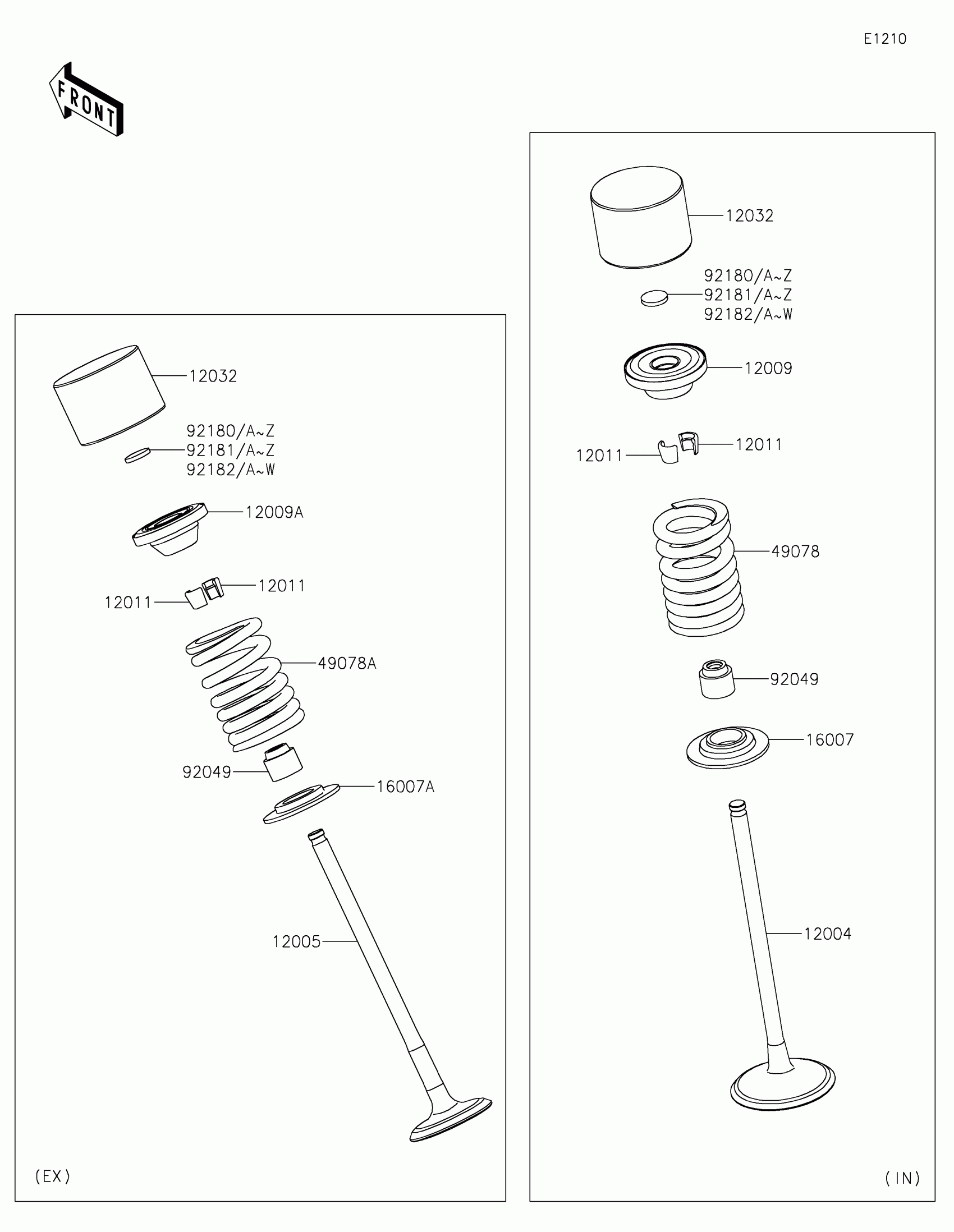

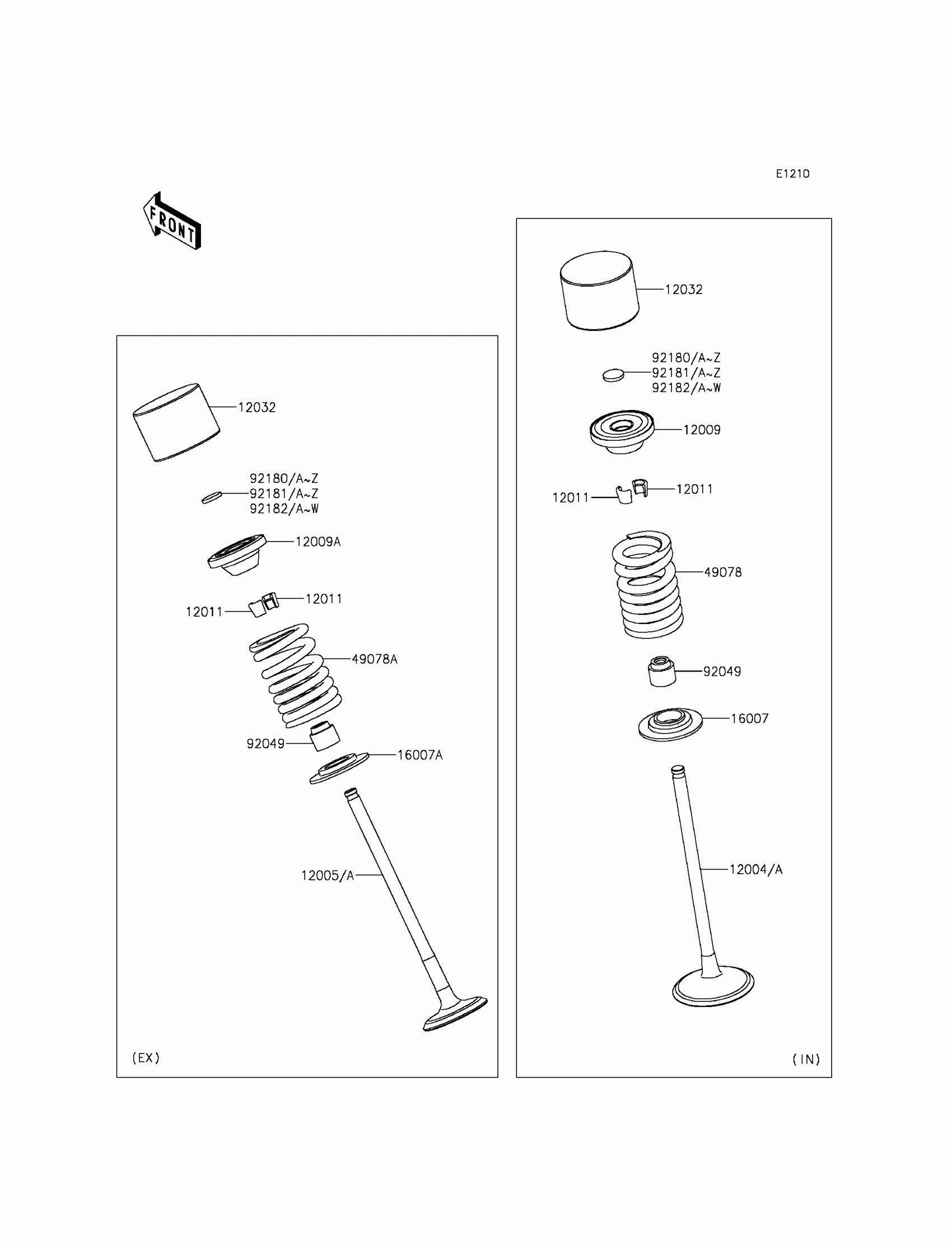

Kawasaki NINJA H2™R Valve(s) Diagram
#
12004
VALVE-INTAKE
12004-0744
$46.36
12005
VALVE-EXHAUST
12005-0765
$66.16
12009
RETAINER-VALVE SPRING,INTAKE
12009-0025
$25.72
12009A
RETAINER-VALVE SPRING,EXHAUST
12009-0026
$25.72
12011
COLLET
12011-1053
$5.46
12032
TAPPET,D26.5
12032-0013
$30.76
16007
SEAT-SPRING
16007-0034
$6.55
16007A
SEAT-SPRING,EXHAUST
16007-0726
$6.57
49078
SPRING-ENGINE VALVE,INTAKE
49078-0722
$24.06
49078A
SPRING-ENGINE VALVE,EXHAUST
49078-0723
$24.06
92049
SEAL-OIL,VSB 4.3 7.5 5.3 8.3
92049-1349
$11.53
92180
SHIM,T=1.300
92180-0108
Unavailable
92180A
SHIM,T=1.325
92180-0109
Unavailable
92180B
SHIM,T=1.350
92180-0110
Unavailable
92180C
SHIM,T=1.375
92180-0865
Unavailable
92180D
SHIM,T=1.388
92180-0866
Unavailable
92180E
SHIM,T=1.400
92180-0867
Unavailable
92180F
SHIM,T=1.413
92180-0868
Unavailable
92180G
SHIM,T=1.425
92180-0869
Unavailable
92180H
SHIM,T=1.438
92180-0870
Unavailable
92180I
SHIM,T=1.450
92180-0871
Unavailable
92180J
SHIM,T=1.463
92180-0872
Unavailable
92180K
SHIM,T=1.475
92180-0873
Unavailable
92180L
SHIM,T=1.488
92180-0874
Unavailable
92180M
SHIM,T=1.500
92180-0875
Unavailable
92180N
SHIM,T=1.513
92180-0876
Unavailable
92180O
SHIM,T=1.525
92180-0877
Unavailable
92180P
SHIM,T=1.538
92180-0878
Unavailable
92180Q
SHIM,T=1.550
92180-0879
Unavailable
92180R
SHIM,T=1.563
92180-0880
Unavailable
92180S
SHIM,T=1.575
92180-0881
Unavailable
92180T
SHIM,T=1.588
92180-0882
Unavailable
92180U
SHIM,T=1.600
92180-0883
Unavailable
92180V
SHIM,T=1.613
92180-0884
Unavailable
92180W
SHIM,T=1.625
92180-0885
Unavailable
92180X
SHIM,T=1.638
92180-0886
Unavailable
92180Y
SHIM,T=1.650
92180-0887
Unavailable
92180Z
SHIM,T=1.663
92180-0888
Unavailable
92181
SHIM,T=1.675
92180-0889
Unavailable
92181A
SHIM,T=1.688
92180-0890
Unavailable
92181B
SHIM,T=1.700
92180-0891
Unavailable
92181C
SHIM,T=1.713
92180-0892
Unavailable
92181D
SHIM,T=1.725
92180-0893
Unavailable
92181E
SHIM,T=1.738
92180-0894
Unavailable
92181F
SHIM,T=1.750
92180-0895
Unavailable
92181G
SHIM,T=1.763
92180-0896
Unavailable
92181H
SHIM,T=1.775
92180-0897
Unavailable
92181I
SHIM,T=1.788
92180-0898
Unavailable
92181J
SHIM,T=1.800
92180-0899
$22.21
92181K
SHIM,T=1.813
92180-0900
Unavailable
92181L
SHIM,T=1.825
92180-0901
Unavailable
92181M
SHIM,T=1.838
92180-0902
Unavailable
92181N
SHIM,T=1.850
92180-0903
Unavailable
92181O
SHIM,T=1.863
92180-0904
Unavailable
92181P
SHIM,T=1.875
92180-0905
Unavailable
92181Q
SHIM,T=1.888
92180-0906
Unavailable
92181R
SHIM,T=1.900
92180-0907
Unavailable
92181S
SHIM,T=1.913
92180-0908
Unavailable
92181T
SHIM,T=1.925
92180-0909
Unavailable
92181U
SHIM,T=1.938
92180-0910
Unavailable
92181V
SHIM,T=1.950
92180-0911
Unavailable
92181W
SHIM,T=1.963
92180-0912
Unavailable
92181X
SHIM,T=1.975
92180-0913
Unavailable
92181Y
SHIM,T=1.988
92180-0914
Unavailable
92181Z
SHIM,T=2.000
92180-0915
Unavailable
92182
SHIM,T=2.013
92180-0916
Unavailable
92182A
SHIM,T=2.025
92180-0917
Unavailable
92182B
SHIM,T=2.038
92180-0918
Unavailable
92182C
SHIM,T=2.050
92180-0919
Unavailable
92182D
SHIM,T=2.063
92180-0920
Unavailable
92182E
SHIM,T=2.075
92180-0921
Unavailable
92182F
SHIM,T=2.088
92180-0922
Unavailable
92182G
SHIM,T=2.100
92180-0923
Unavailable
92182H
SHIM,T=2.113
92180-0924
Unavailable
92182I
SHIM,T=2.125
92180-0925
Unavailable
92182J
SHIM,T=2.138
92180-0926
Unavailable
92182K
SHIM,T=2.150
92180-0927
Unavailable
92182L
SHIM,T=2.163
92180-0928
Unavailable
92182M
SHIM,T=2.175
92180-0929
Unavailable
92182N
SHIM,T=2.188
92180-0930
Unavailable
92182O
SHIM,T=2.200
92180-0931
Unavailable
92182P
SHIM,T=2.213
92180-0932
Unavailable
92182Q
SHIM,T=2.225
92180-0933
Unavailable
92182R
SHIM,T=2.238
92180-0934
Unavailable
92182S
SHIM,T=2.250
92180-0935
Unavailable
92182T
SHIM,T=2.263
92180-0936
Unavailable
92182U
SHIM,T=2.275
92180-0937
Unavailable
92182V
SHIM,T=2.288
92180-0938
Unavailable
92182W
SHIM,T=2.300
92180-0939
Unavailable
