Description

Price

13227

HOUSING,RR

13227-0034

$362.06

13272

PLATE

13272-1861

$16.25

13304

HOUSING-ASSY,RR

13304-5001

$512.19

41036

HUB-ASSY,RR

41036-0679

$460.04

41068

AXLE,RR

41068-0620

$668.48

42034

COUPLING,F.W.M.GRAY

42034-0744-46T

$612.39

42034A

COUPLING,INSERT,F.W.M.GRAY

42034-0752-53D

$347.23

42036

SLEEVE,40X50X16.4

42036-0779

$113.19

42041

SPROCKET-HUB,42T

42041-0153

$134.57

49030

HUB,RR

49030-0050

$431.22

49058

WHEEL,RR,F.BLACK

49058-0670-51H

$996.90

92015

NUT,LOCK,10MM,BLACK

92015-1189

$7.34

92033

RING-SNAP,41X1.6

92033-0753

$9.84

92033A

RING-SNAP

92033-0760

$11.40

92033B

RING-SNAP,62MM

92033-1044

$11.29

92045

BEARING-BALL,40X60X12

92045-0802

$37.00

92046

BEARING-NEEDLE,50X62X25

92046-0617

$108.99

92049

SEAL-OIL,50X62X5

92049-0771

$19.00

92057

CHAIN,DRIVE,EK525RMXZ/3DX116L

92057-0636

$532.88

92058

JOINT-CHAIN

92058-0036

$18.61

92154

BOLT,HUB,12X45

92154-1546

$10.21

92154A

BOLT,SPROCKET,10X24.3

92154-2300

$41.93

92161

DAMPER,SHOCK,RR HUB

92161-1286

$28.94

92200

WASHER,12.1X25X1.6

92200-0455

$2.97

92200A

WASHER,35.1X56X1.6

92200-1764

$8.12

92200B

WASHER,10.2X18X1

92200-1770

$4.69

92210

NUT,12MM

92210-0931

$49.07

92210A

NUT,RR AXLE,35MM

92210-1415

$164.65

671

O RING,55MM

671B2555

$6.22

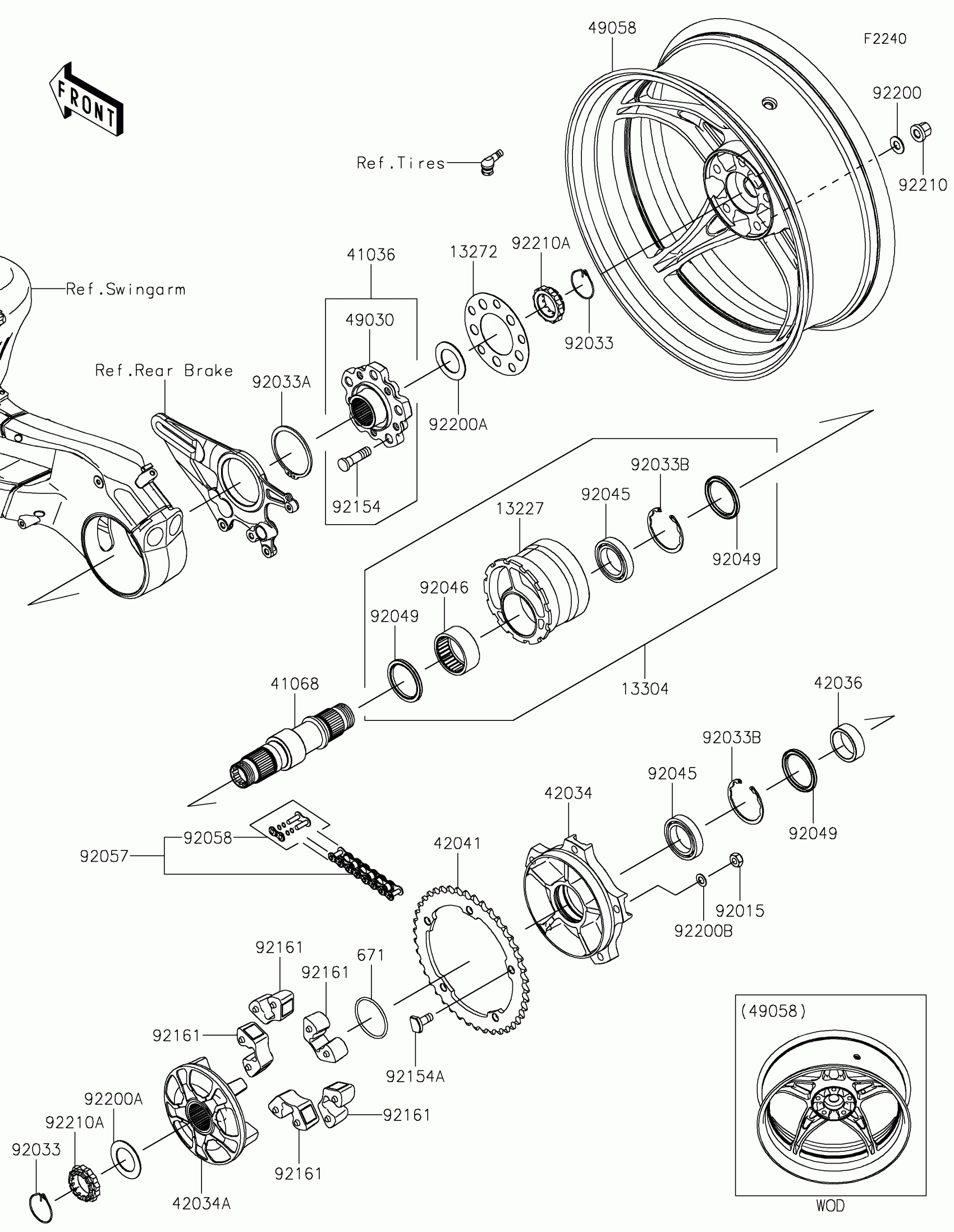

Kawasaki NINJA H2™R Rear Wheel/Chain(YHF/YJF) Diagram
