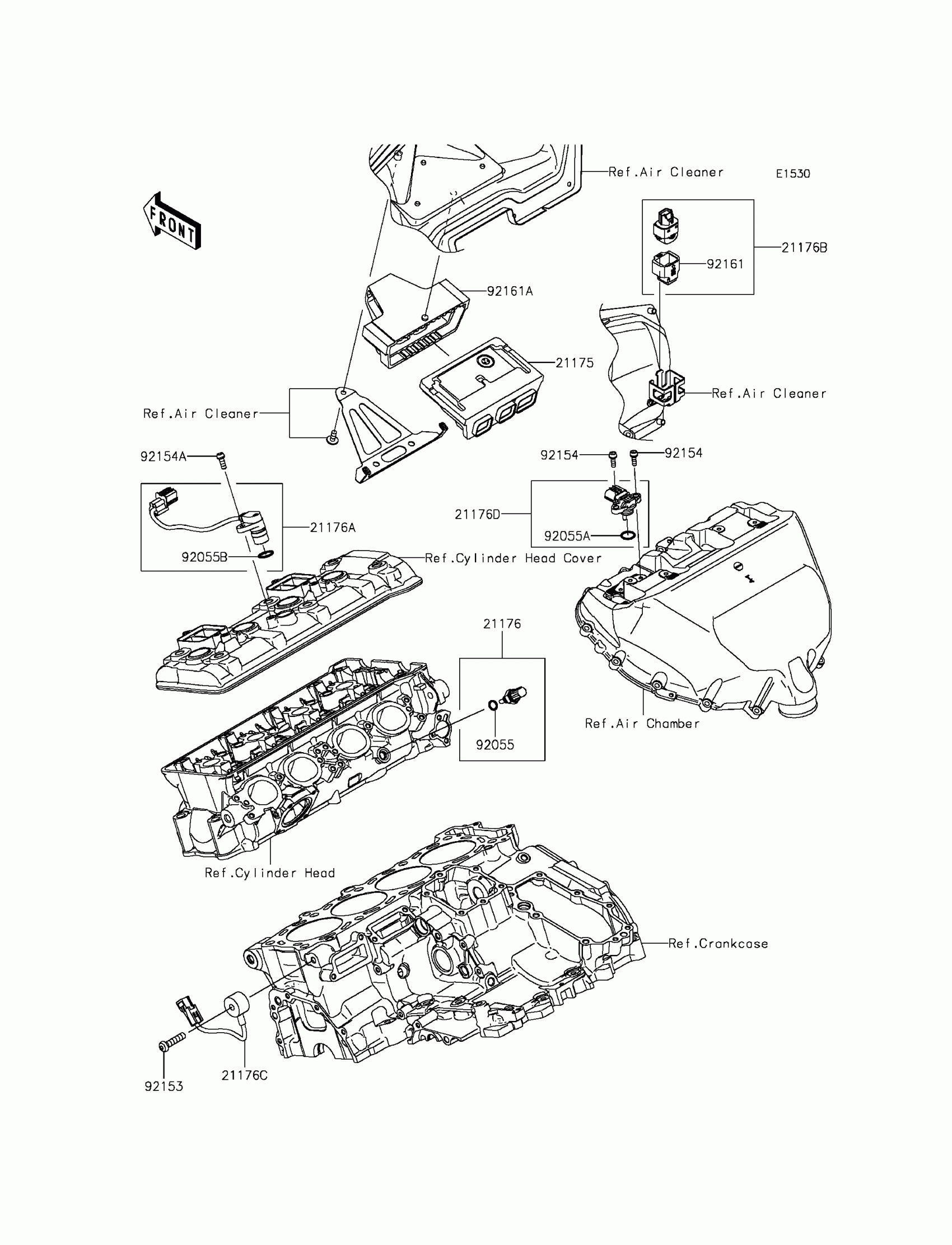

Kawasaki NINJA H2™R Fuel Injection Diagram

Description

Price

21175

CONTROL UNIT-ELECTRONIC

21175-1237

$1,948.79

21176

SENSOR,WATER TEMP

21176-0009

$69.24

21176A

SENSOR,CAM

21176-0101

$124.44

21176B

SENSOR,VEHICLE-DOWN

21176-0704

$90.72

21176C

SENSOR,KNOCK

21176-0788

$133.37

21176D

SENSOR,INTAKE TEMP&PRESSURE

21176-0791

$140.35

21176E

SENSOR,GYRO

21176-0819

$666.31

92055

RING-O,9.5X1.9

92055-0016

$8.89

92055A

RING-O

92055-0842

$6.63

92055B

RING-O

92055-1639

$3.09

92153

BOLT,SOCKET,8X35

92153-0419

$3.26

92154

BOLT,SOCKET,5X16

92154-1449

$1.19

92154A

BOLT,SOCKET,6X16

92154-1454

$1.19

92154B

BOLT,FLANGED,6X16

92154-1851

$2.15

92161

DAMPER

92161-0951

$14.90

92161A

DAMPER,ECU

92161-1719

$29.61
