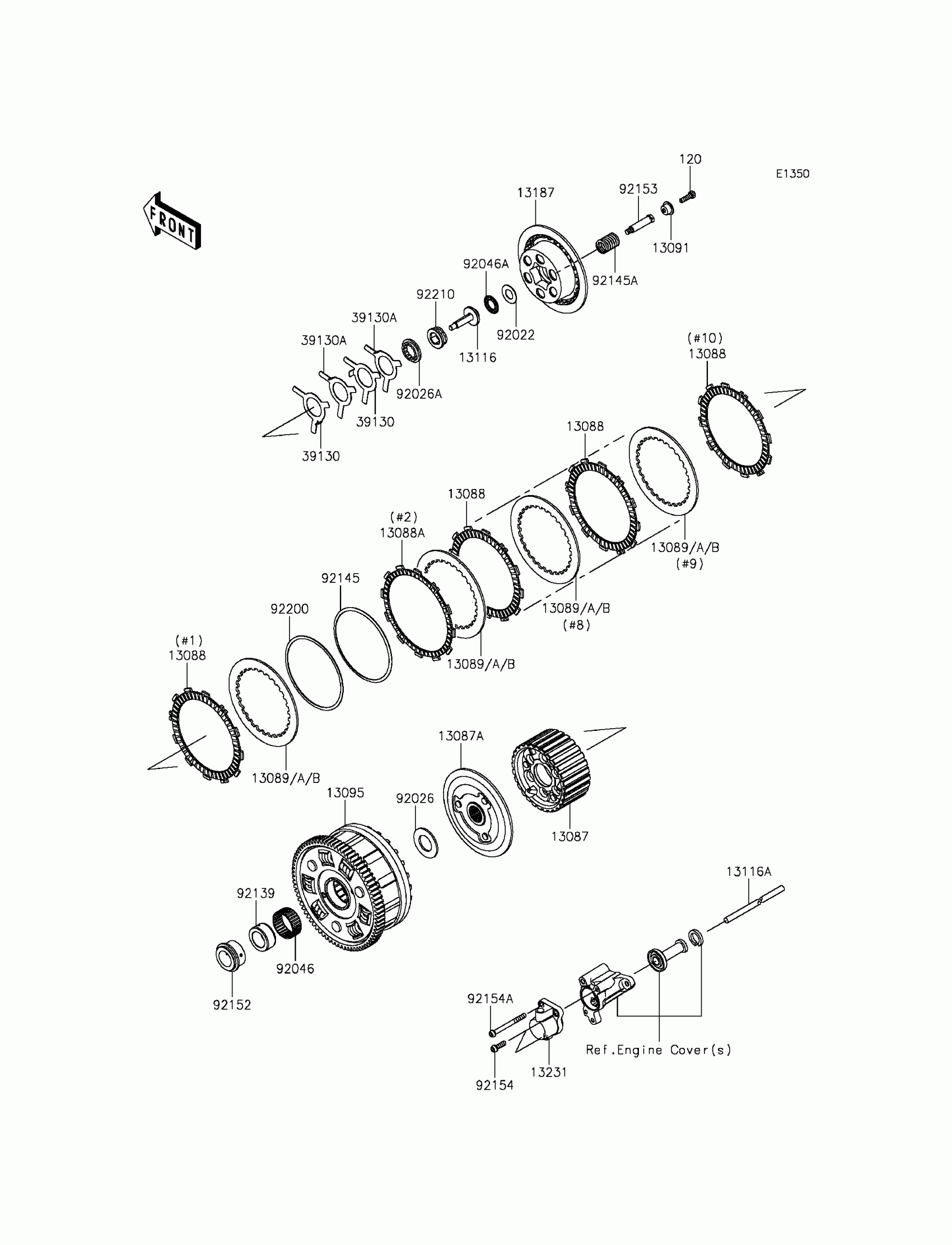

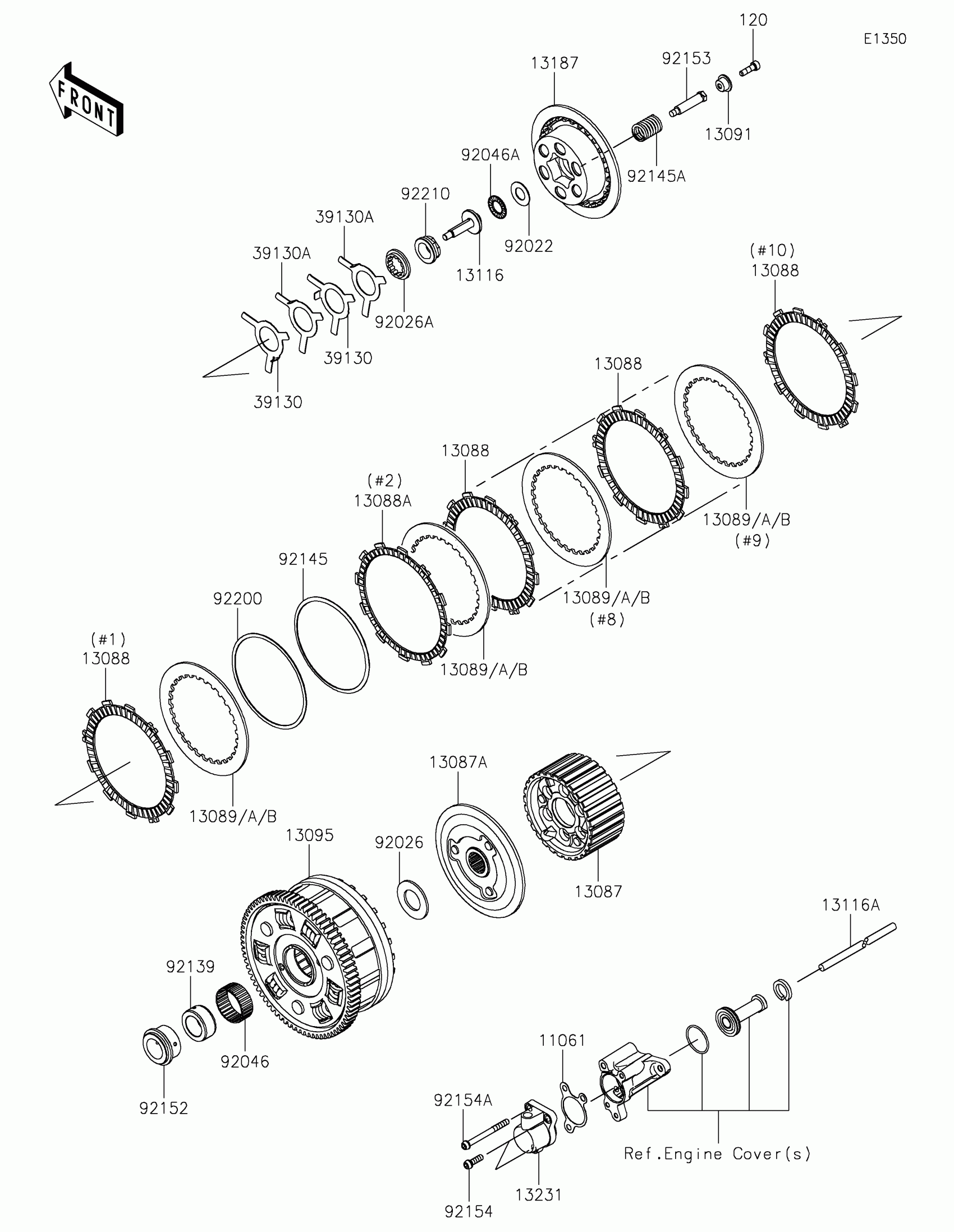

Kawasaki NINJA H2™R Clutch Diagram
#
Description
Price
11061
GASKET,CLUTCH RELEASE
11061-1228
$2.68
13087
HUB-CLUTCH
13087-0575
$316.70
13087A
HUB-CLUTCH
13087-0576
$165.44
13088
PLATE-FRICTION
13088-0566
$21.14
13088A
PLATE-FRICTION
13088-0567
$21.14
13089
PLATE-CLUTCH,T=2.0
13089-0021
Unavailable
13089A
PLATE-CLUTCH,T=2.3
13089-0027
$16.35
13089B
PLATE-CLUTCH,T=2.6
13089-0028
Unavailable
13091
HOLDER,CLUTCH SPRING
13091-1840
$4.65
13095
HOUSING-COMP-CLUTCH
13095-0577
$738.44
13116
ROD-PUSH
13116-0732
$40.11
13116A
ROD-PUSH
13116-0738
$215.16
13187
PLATE-CLUTCH OPERATING
13187-0025
$96.39
13231
RELEASE-ASSY-CLUTCH
13231-0008
$215.16
39130
SPRING-LEAF
39130-1078
$9.89
39130A
SPRING-LEAF
39130-1079
$9.89
92022
WASHER,15.1X29X1.0
92022-1463
$5.00
92026
SPACER,25.5X47X2.5
92026-022
$9.91
92026A
SPACER
92026-0792
$47.23
92046
BEARING-NEEDLE
92046-0041
$22.40
92046A
BEARING-NEEDLE,AXK1102
92046-1052
$14.47
92139
BUSHING,25X38X17.3
92139-0304
$37.67
92145
SPRING
92145-1250
$19.32
92145A
SPRING
92145-1662
$10.62
92152
COLLAR
92152-0866
$41.41
92153
BOLT
92153-0797
$10.37
92154
BOLT,SOCKET,6X20
92154-1623
$2.26
92154A
BOLT,SOCKET,6X65
92154-1624
$10.72
92200
WASHER,T=1.0
92200-1579
$10.49
92210
NUT
92210-0397
$51.69
120
BOLT-SOCKET,6X20
120Q0620
$1.20
