- NINJA H2™R
Chassis Electrical Equipment

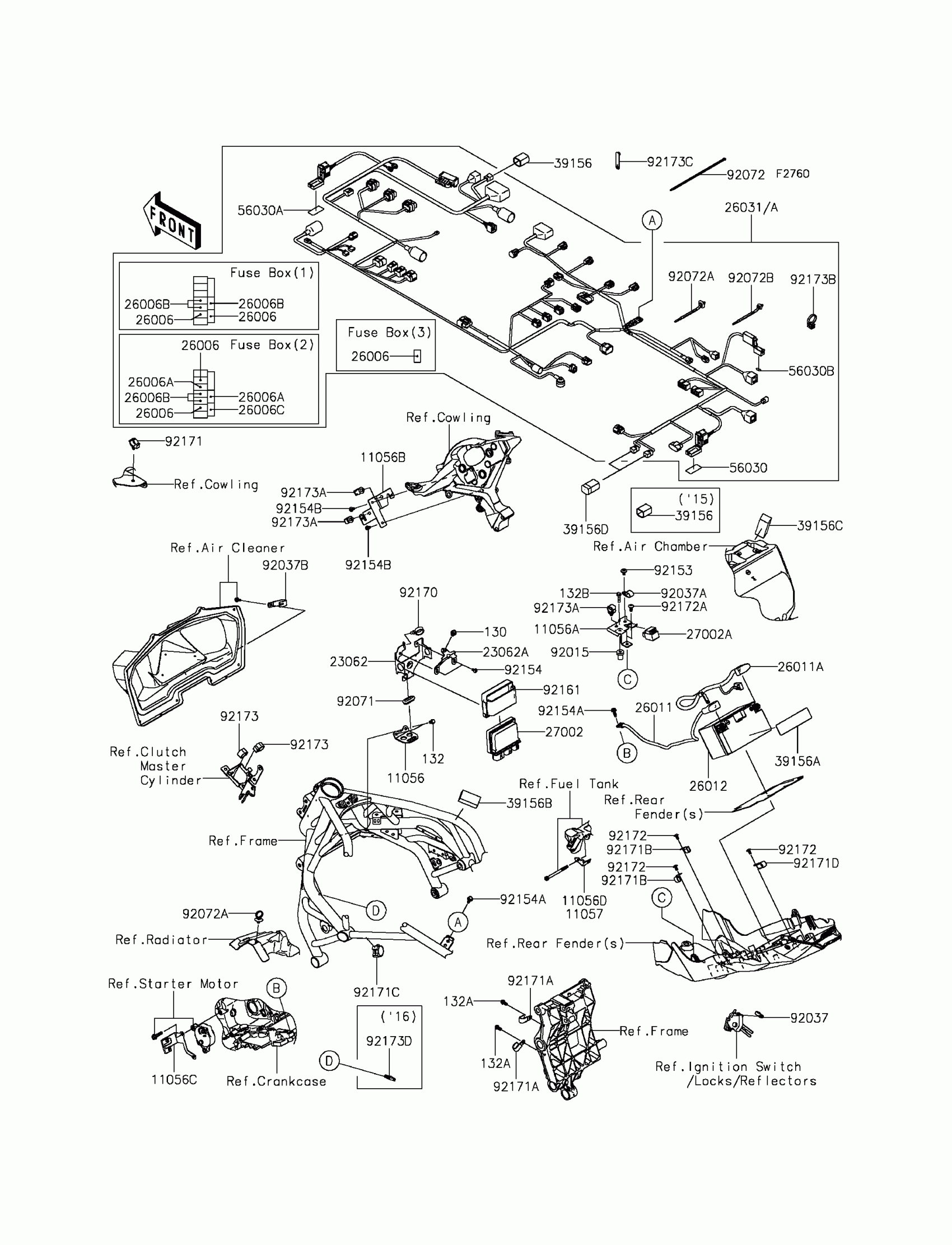

Kawasaki NINJA H2™R Chassis Electrical Equipment Diagram
#
11056
BRACKET,RELAY BRKT.,LWR
11056-7100
$116.59
11056A
BRACKET,RR WHEEL SPEED SENSOR
11056-7175
$233.82
11056B
BRACKET,HARNESS CONNECTOR
11056-7378
$68.01
11056C
BRACKET,STARTER
11056-7543
$9.67
11057
BRACKET,FUEL PUMP CONNECTOR
11057-0040
$5.23
23062
BRACKET-COMP,RELAY BOX
23062-0844
$505.64
23062A
BRACKET-COMP,RELAY BRKT.,UPP
23062-0845
$350.45
26006
FUSE,MINI BLADE,15A,BLUE
26006-0001
$6.12
26006A
FUSE,MINI BLADE,25A,NATURAL
26006-0020
$6.57
26006B
FUSE,MINI BLADE,10A,RED
26006-1078
$4.87
26006C
FUSE,MINI BLADE,30A,GREEN
26006-1080
$4.87
26011
WIRE-LEAD,BATTERY(-)
26011-0908
$49.33
26011A
WIRE-LEAD,BATTERY(+)
26011-0909
$67.09
26012
BATTERY,YTZ10S,12V 8.6AH
26012-0564
Unavailable
26031
HARNESS,MAIN
26031-2190
$2,506.11
27002
RELAY-ASSY
27002-0042
$143.14
27002A
RELAY-ASSY
27002-1062
$45.39
39156
PAD,DIAG. CONNECTOR
39156-1886
$2.13
39156A
PAD,30X115X0.36
39156-1895
$13.63
39156B
PAD,25X50X20
39156-1940
$2.13
39156C
PAD,25X65X20
39156-1945
$2.13
39156D
PAD,DIAG. CONNECTOR
39156-2112
$14.21
39156E
PAD,30X15X1
39156-2495
$0.90
56030
LABEL,FUSE BOX 2
56030-0902
$3.29
56030A
LABEL,FUSE BOX 1
56030-0903
$3.29
56030B
LABEL,FUSE BOX 3
56030-0906
$3.29
92015
NUT,RUBBER,6MM
92015-1692
$7.34
92037
CLAMP,SPEED,L=58
92037-1163
$6.57
92037A
CLAMP
92037-1608
$8.10
92037B
CLAMP,CABLE,STEEL SHEET
92037-2014
$1.97
92071
GROMMET
92071-1187
$4.96
92072
BAND,202X3.6
92072-0782
$1.97
92072A
BAND
92072-1392
$3.74
92072B
BAND,OS170-FT7(BLACK)
92072-1414
$3.74
92153
BOLT,SOCKET,6X10
92153-0410
$2.80
92154
BOLT,SOCKET,5X10
92154-0211
$2.12
92154A
BOLT,FLANGED,6X16
92154-0551
$1.63
92154B
BOLT,SOCKET,5X12
92154-0917
$4.72
92161
DAMPER,RELAY BOX
92161-0203
$10.37
92170
CLAMP
92170-1067
$7.45
92171
CLAMP
92171-0305
$7.21
92171A
CLAMP,BRAKE HOSE
92171-0316
$3.88
92171B
CLAMP
92171-0739
$5.65
92171C
CLAMP
92171-0766
$5.65
92171D
CLAMP,25MM DIA.
92171-1559
$6.18
92172
SCREW,TAPPING,5X10
92172-0262
$1.34
92172A
SCREW,6X16
92172-0284
$1.34
92173
CLAMP,CLIP
92173-0127
$15.62
92173A
CLAMP,12MM DIA.
92173-0736
$5.05
92173B
CLAMP
92173-0791
$11.16
92173C
CLAMP,RUBBER PLATE
92173-1229
$3.94
92173D
CLAMP
92173-1513
$3.73
130
BOLT-FLANGED,6X10
130BA0610
$1.20
132
BOLT-FLANGED-SMALL,6X10
132BA0610
$1.71
132A
BOLT-FLANGED-SMALL,6X12
132BA0612
$1.20
132B
BOLT-FLANGED-SMALL,6X22
132BA0622
$1.94
