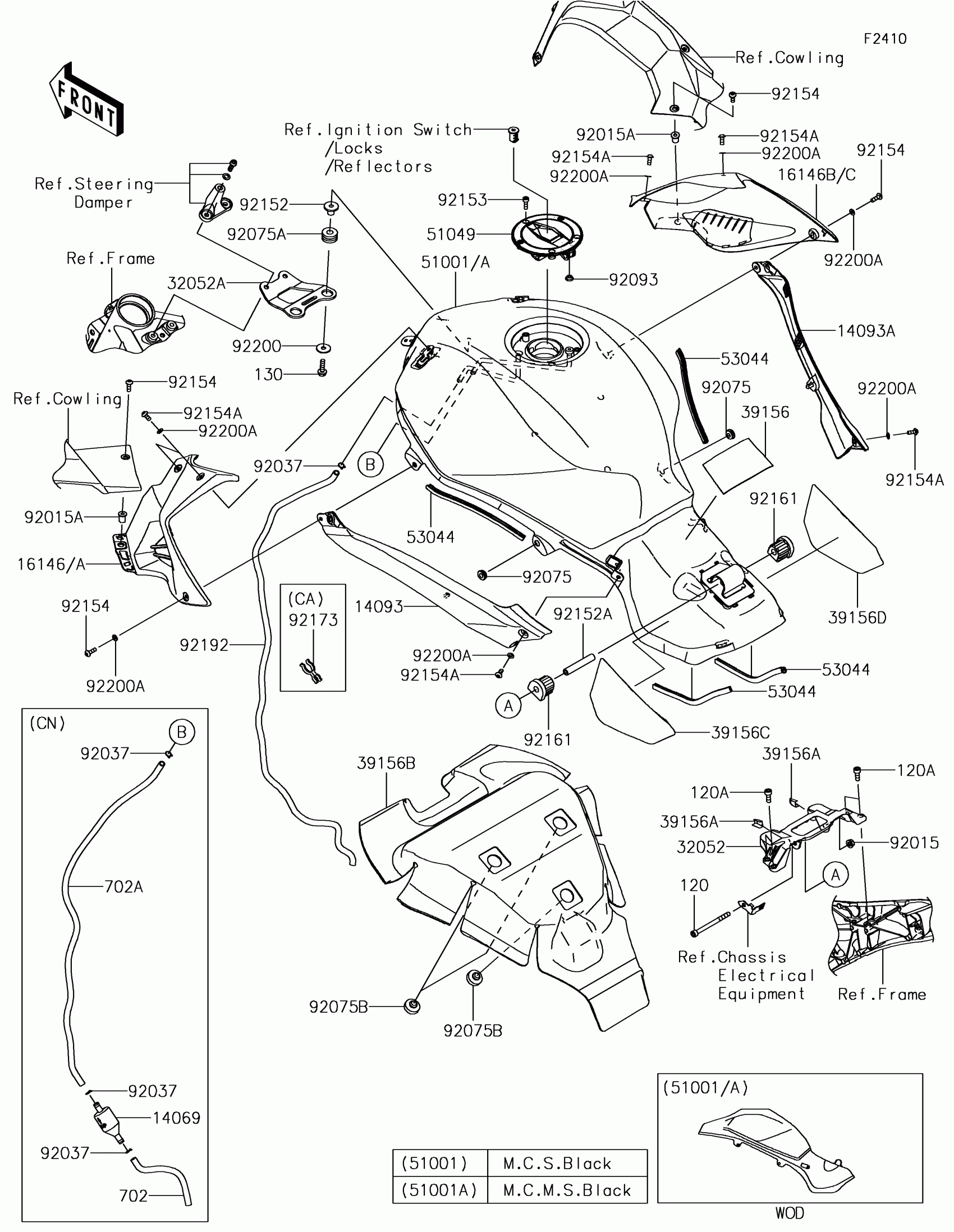

Kawasaki NINJA H2™ Fuel Tank(XHF-XJF) Diagram

#

Description
Price

14069

BREATHER,TANK

14069-0008

$6.89

14093

COVER,KNEE GRIP,LH

14093-0180

$54.07

14093A

COVER,KNEE GRIP,RH

14093-0181

$54.07

16146

COVER-ASSY,TANK,LH,M.C.S.BLACK

16146-0780-53X

$502.39

16146B

COVER-ASSY,TANK,RH,M.C.S.BLACK

16146-0781-53X

$502.39

32052

BRACKET-TANK,RR

32052-0763

$65.23

32052A

BRACKET-TANK,FR

32052-0764

$25.04

39156

PAD,RR FRM

39156-1778

$5.08

39156A

PAD,15X20X0.2

39156-1784

$1.02

39156B

PAD,FUEL TANK

39156-1848

$111.14

39156C

PAD,FUEL TANK,LH

39156-1942

$21.29

39156D

PAD,FUEL TANK,RH

39156-1943

$21.29

51001

TANK-COMP-FUEL,M.C.S.BLACK

51001-0820-53X

$2,989.02

51049

CAP-TANK

51049-0721

$140.61

53044

TRIM,FUEL TANK

53044-0582

$3.75

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92015A

NUT,WELL,5MM

92015-1757

$7.29

92037

CLAMP,TUBE

92037-010

$3.92

92037

CLAMP,TUBE

92037-010

$3.92

92075

DAMPER,6X16X7

92075-1011

$7.33

92075A

DAMPER,10X24X12

92075-1690

$5.00

92075B

DAMPER,9X24X14

92075-281

$6.22

92093

SEAL,FUEL TANK CAP

92093-1030

$7.77

92152

COLLAR,6.3X10X14.5

92152-0091

$11.71

92152A

COLLAR,6X10X60.2

92152-1964

$18.44

92153

BOLT,SOCKET,5X16

92153-1616

$1.34

92154

BOLT,SOCKET,5X16

92154-1560

$2.49

92154A

BOLT,SOCKET,5X12

92154-1561

$2.49

92161

DAMPER,FUEL TANK

92161-1737

$5.69

92173

CLAMP,DRAIN TUBE

92173-1391

$3.94

92192

TUBE,DRAIN,6X9X808

92192-1669

$10.62

92200

WASHER,6.5X22X1.6

92200-1087

$3.94

92200A

WASHER,5.2X10X1.0

92200-1820

$0.63

120

BOLT-SOCKET,6X75

120CA0675

$3.29

120A

BOLT-SOCKET,6X16

120CB0616

$1.27

130

BOLT-FLANGED,6X22

130CA0622

$2.70

702

TUBE-RUBBER,6X9X140

702A06140

$1.96

702A

TUBE-RUBBER,6X9X630

702A06630

Unavailable
