Description

Price

11056

BRACKET,HEAD LAMP

11056-4497

$66.58

11056A

BRACKET,METER STAY

11056-7076

$12.29

11056B

BRACKET,INNER COVER

11056-7098

$7.83

11056C

BRACKET,V.D. SENSOR

11056-7534

$11.51

11057

BRACKET,GYRO SENSOR

11057-0447

$16.18

11057A

BRACKET

11057-0765

$13.60

11057B

BRACKET,HEAD LAMP HARNESS

11057-0777

$12.58

11065

CAP,UPP,LH

11065-0922

$7.52

11065A

CAP,UPP,RH

11065-0923

$7.52

14093

COVER,INNER,LH

14093-0182

$29.84

14093A

COVER,INNER,RH

14093-0183

$37.24

14093B

COVER,DUCT,LH

14093-0185

$35.82

14093C

COVER,DUCT,RH

14093-0186

$40.11

14093D

COVER,METER VISOR

14093-0499

$29.72

35063

STAY,UPP COWL.,M.F.S.BLACK

35063-1373-46R

$493.60

39154

WINDSHIELD

39154-0341

$175.09

39156

PAD,12X10X8

39156-1809

$1.84

39156A

PAD,20X30X24

39156-1900

$2.13

39156B

PAD,10X50X2

39156-1924

$2.44

39156C

PAD,15X25X1

39156-2119

$1.84

53044

TRIM

53044-0580

$5.13

55028

COWLING,UPP,LWR

55028-0539

$28.63

55057

COWLING,UPP,M.C.S.BLACK

55057-5315-53X

$2,014.60

56001

MIRROR-ASSY,LH,M.F.S.BLACK

56001-0330-739

$398.87

56001A

MIRROR-ASSY,RH,M.F.S.BLACK

56001-0331-739

$398.87

92015

NUT,WELL,5MM

92015-1757

$7.29

92039

RIVET

92039-0060

$3.39

92075

DAMPER,6X16X7

92075-1011

$7.33

92075A

DAMPER,6X10X15

92075-1808

$1.39

92152

COLLAR,6.5X10X5.6

92152-0445

$4.92

92152A

COLLAR,6.5X16X7.3

92152-2336

$12.83

92153

BOLT,6X18

92153-0816

$2.15

92154

BOLT,SOCKET,6X18

92154-1455

$1.48

92154A

BOLT,SOCKET,5X16

92154-1560

$2.49

92154B

BOLT,SOCKET,5X12

92154-1561

$2.49

92154C

BOLT,SOCKET,8X52

92154-1710

$10.46

92154D

BOLT,SOCKET,6X22

92154-1724

$2.49

92160

DAMPER

92160-1278

$4.39

92161

DAMPER,16X23X2

92161-1696

$0.95

92161A

DAMPER,HEAD LAMP

92161-1734

$5.98

92171

CLAMP

92171-0305

$7.21

92172

SCREW,TAPPING,5X16

92172-0238

$1.00

92200

WASHER,5.2X10X1.0

92200-1820

$0.63

92200A

WASHER,6.5X16X1.0

92200-3712

$3.73

92210

NUT,CAP,6MM

92210-0003

$0.64

92210A

NUT,CAP,8MM

92210-1132

$4.18

130

BOLT-FLANGED,6X8

130BA0608

$0.64

130A

BOLT-FLANGED,6X14

130BA0614

$1.20

130B

BOLT-FLANGED,6X10

130BB0610

$2.49

130C

BOLT-FLANGED,6X12

130R0612

$1.19

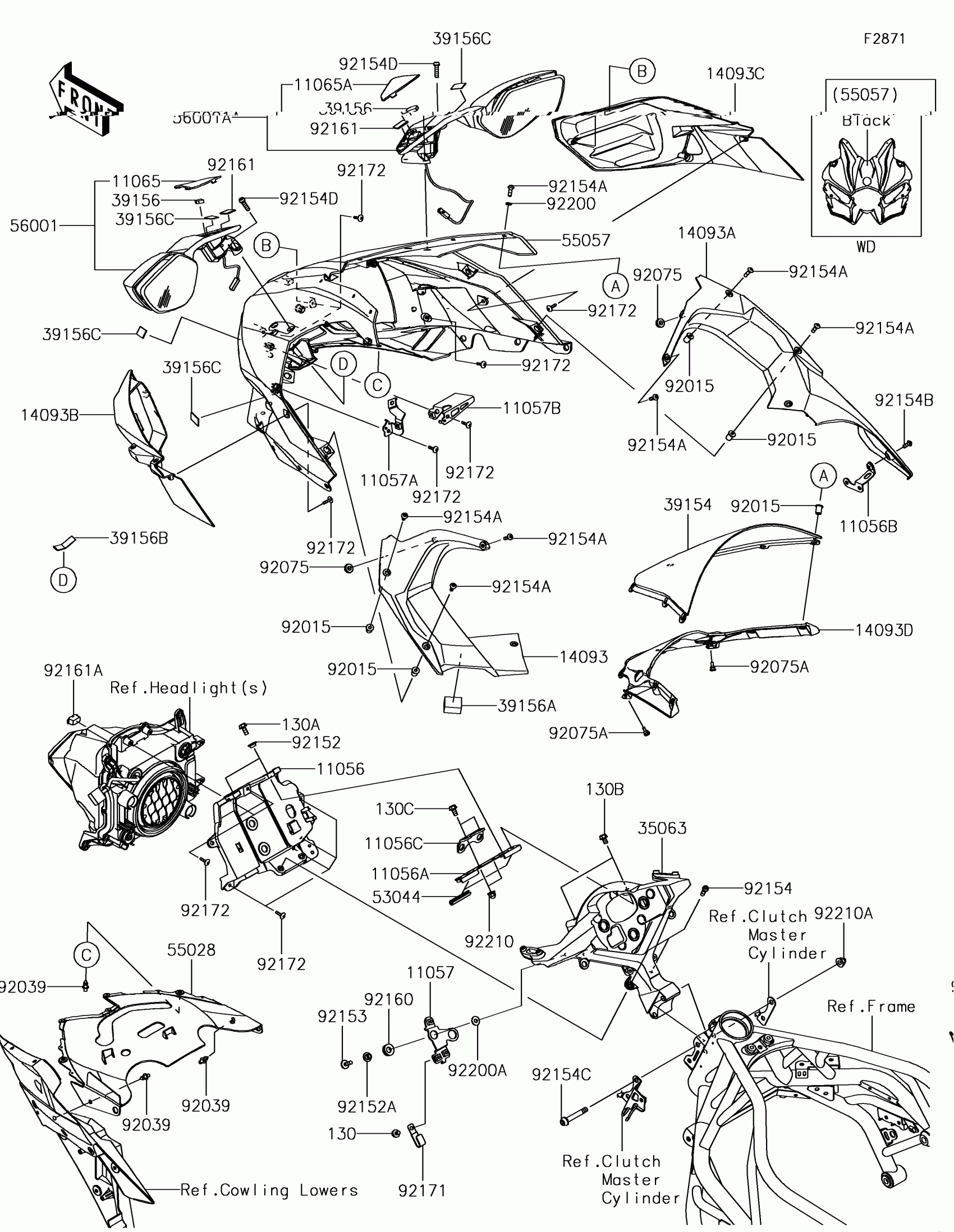

Kawasaki NINJA H2™ Cowling(XHF/XJF) Diagram

BRACKET,HEAD LAMP

BRACKET,METER STAY

BRACKET,INNER COVER

BRACKET,V.D. SENSOR

BRACKET,GYRO SENSOR

BRACKET

BRACKET,HEAD LAMP HARNESS

CAP,UPP,LH

CAP,UPP,RH

COVER,INNER,LH

COVER,INNER,RH

COVER,DUCT,LH

COVER,DUCT,RH

COVER,METER VISOR

STAY,UPP COWL.,M.F.S.BLACK

WINDSHIELD

PAD,12X10X8

PAD,20X30X24

PAD,10X50X2

PAD,15X25X1

TRIM

COWLING,UPP,LWR

COWLING,UPP,M.C.S.BLACK

MIRROR-ASSY,LH,M.F.S.BLACK

MIRROR-ASSY,RH,M.F.S.BLACK

NUT,WELL,5MM

RIVET

DAMPER,6X16X7

DAMPER,6X10X15

COLLAR,6.5X10X5.6

COLLAR,6.5X16X7.3

BOLT,6X18

BOLT,SOCKET,6X18

BOLT,SOCKET,5X16

BOLT,SOCKET,5X12

BOLT,SOCKET,8X52

BOLT,SOCKET,6X22

DAMPER

DAMPER,16X23X2

DAMPER,HEAD LAMP

CLAMP

SCREW,TAPPING,5X16

WASHER,5.2X10X1.0

WASHER,6.5X16X1.0

NUT,CAP,6MM

NUT,CAP,8MM

BOLT-FLANGED,6X8

BOLT-FLANGED,6X14

BOLT-FLANGED,6X10

BOLT-FLANGED,6X12
