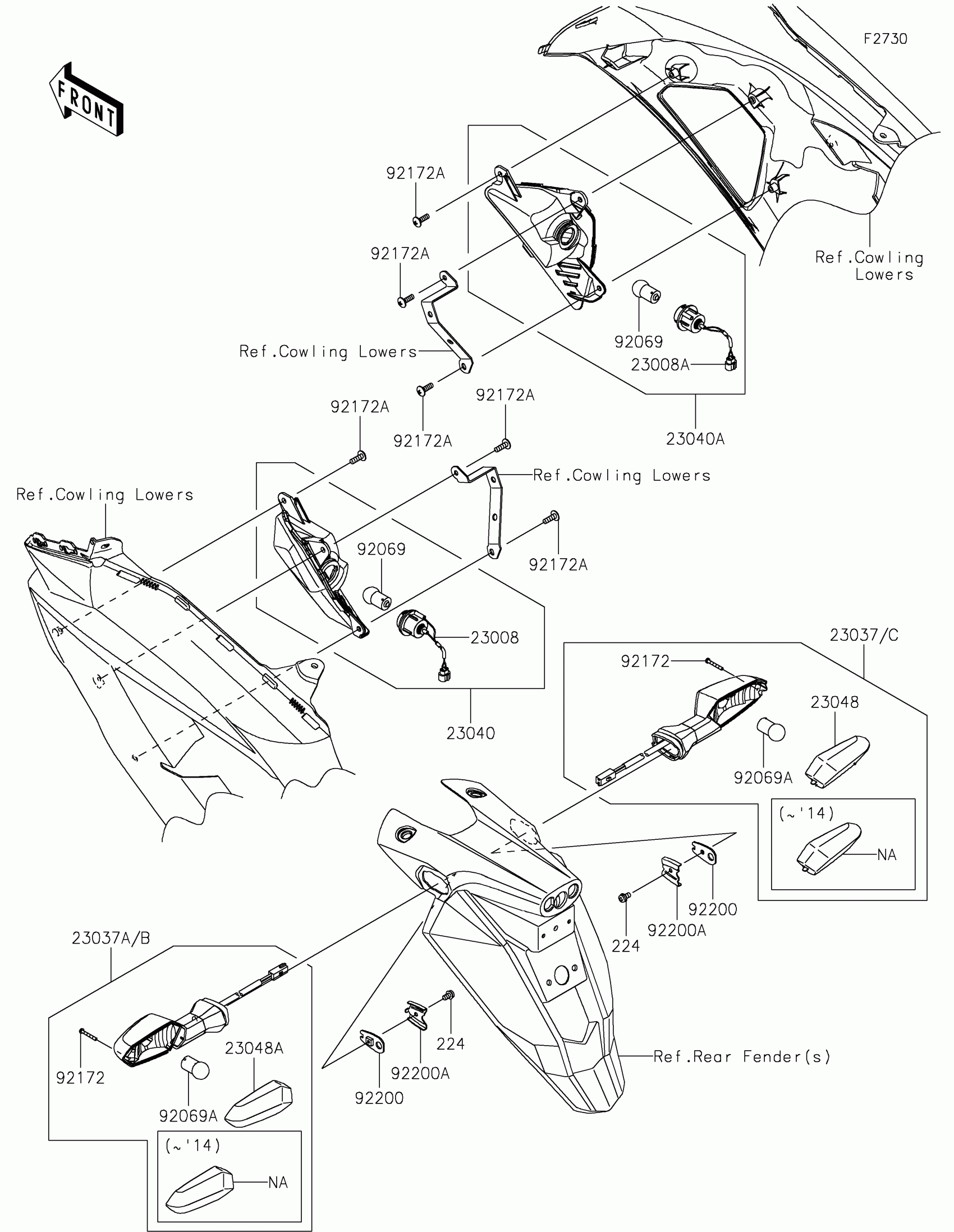

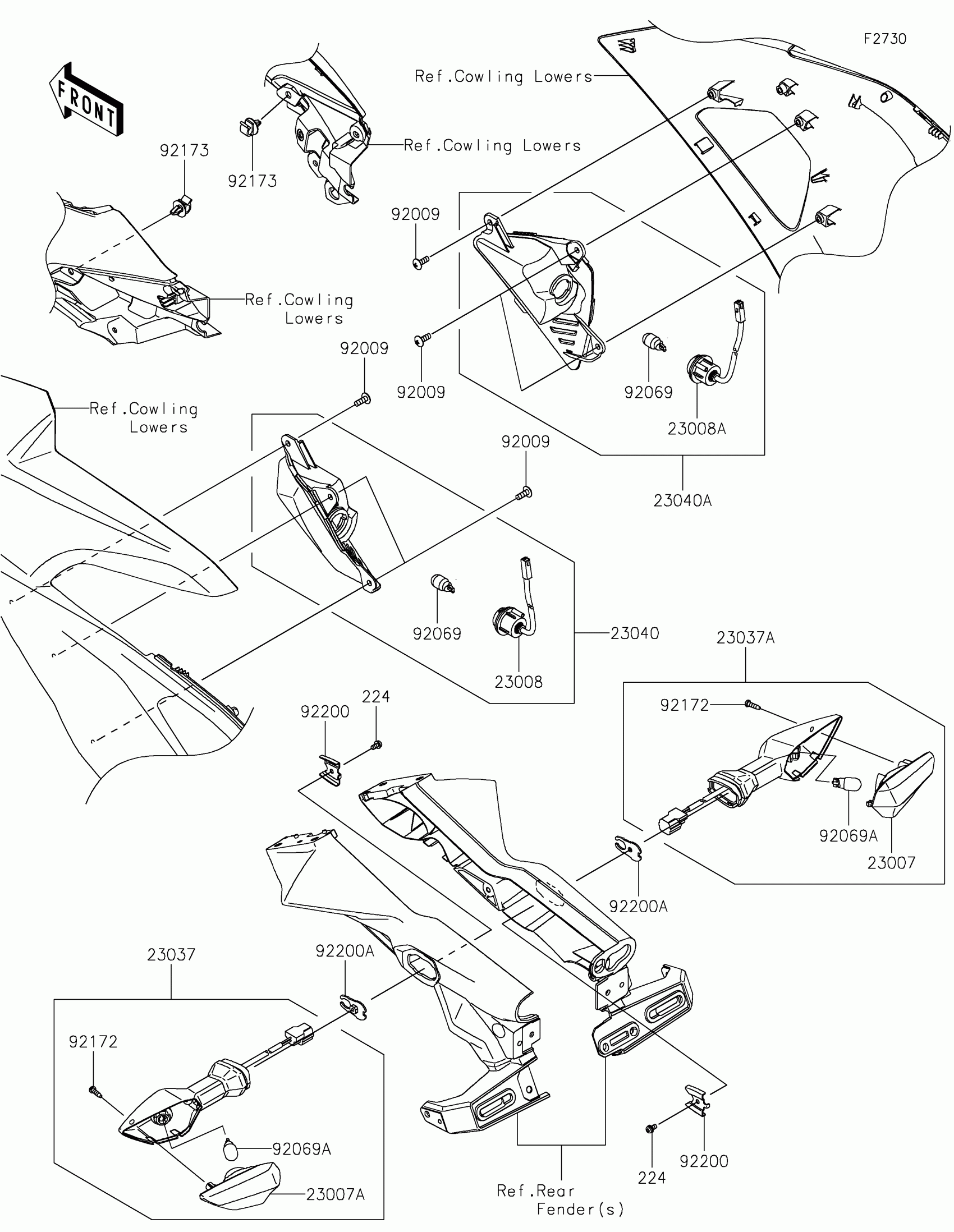

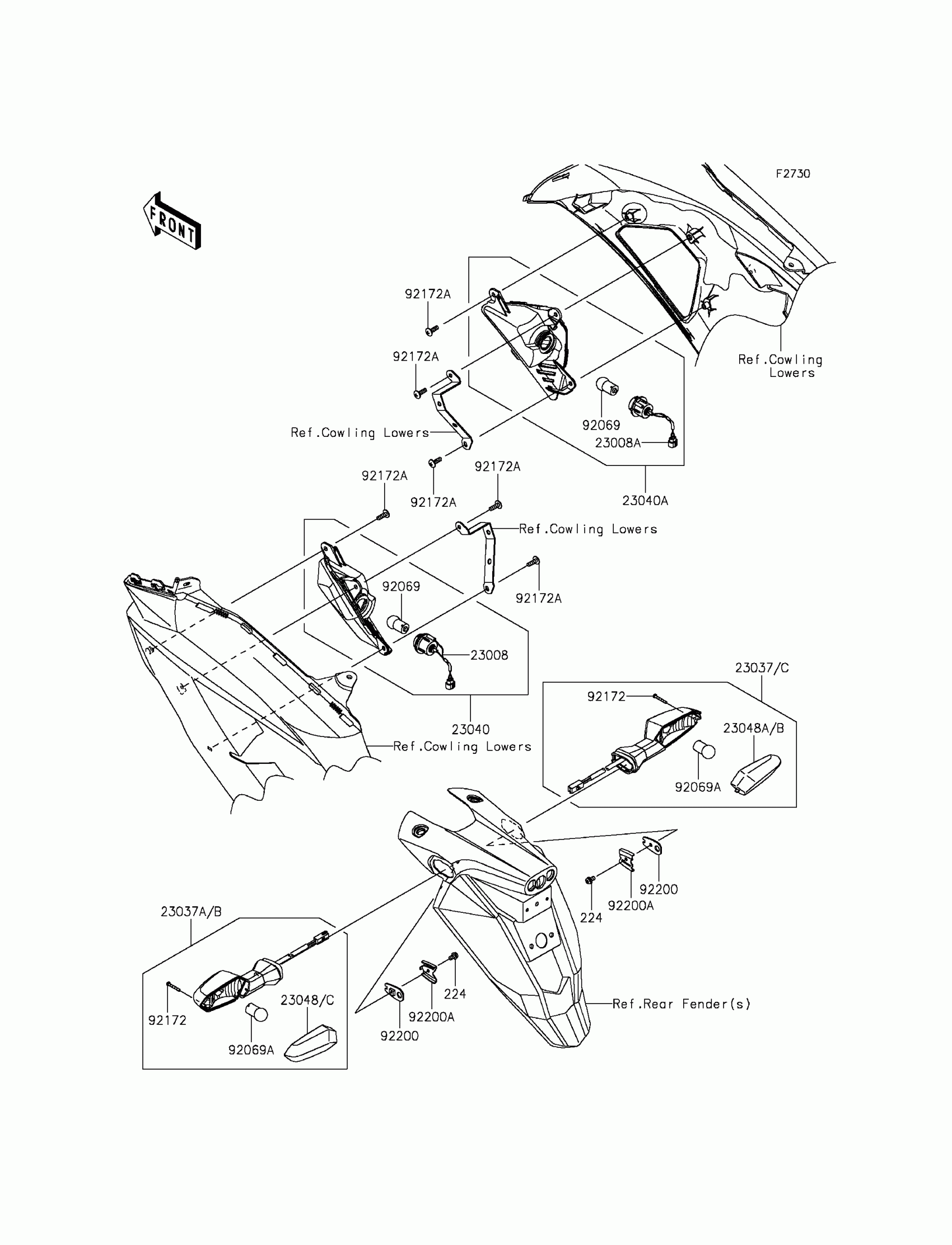

Kawasaki NINJA® 650 Turn Signals Diagram

Description

Price

23007

LENS-COMP

23007-0228

$25.57

23007A

LENS-COMP

23007-0229

$25.57

23008

SOCKET-ASSY,LH

23008-0167

$22.17

23008A

SOCKET-ASSY,RH

23008-0168

$22.17

23037

LAMP-ASSY-SIGNAL,RR,LH

23037-0535

$59.44

23037A

LAMP-ASSY-SIGNAL,RR,RH

23037-0536

$59.44

23040

LAMP-SIGNAL,FR,LH

23040-0135

$80.05

23040A

LAMP-SIGNAL,FR,RH

23040-0136

$80.05

92009

SCREW,TAPPING,5X14

92009-1197

$3.92

92069

BULB,12V 10W

92069-0058

$7.73

92069A

BULB,12V 10W

92069-0090

$5.75

92172

SCREW,4X14

92172-1117

$3.65

92173

CLAMP,CABLE CLIP

92173-1022

$1.63

92200

WASHER

92200-0855

$1.97

92200A

WASHER,SIGNAL LAMP

92200-2294

$1.83

224

SCREW-PAN-WP-CROS,4X8

224AB0408

$3.67
