Description

Price

13070

GUIDE,BRAKE PAD

13070-0077

$11.82

41080

DISC,BLACK+SIL

41080-0666-11I

$389.68

43044

HOLDER-COMP-CALIPER,FR,LH

43044-0078

$148.83

43044A

HOLDER-COMP-CALIPER,FR,RH

43044-0079

$144.35

43048

PISTON-CALIPER

43048-1068

$81.86

43049

PACKING,PISTON SEAL

43049-1060

$19.45

43049A

PACKING,PISTON SEAL

43049-1061

$10.56

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$4.91

43058

RING,STOPPER

43058-1100

$11.70

43080

CALIPER-SUB-ASSY,FR,LH,BLACK

43080-0177-DJ

$375.24

43080A

CALIPER-SUB-ASSY,FR,RH,BLACK

43080-0178-DJ

$375.24

43082

PAD-ASSY-BRAKE

43082-0165

$76.79

49006

BOOT,CALIPER

49006-1088

$11.61

49006A

BOOT,CALIPER

49006-1242

$5.46

92043

PIN,HANGER

92043-0820

$7.32

92145

SPRING,PAD

92145-0524

$11.82

92153

BOLT

92153-1872

$13.60

92154

BOLT,FLANGED,8X35

92154-1646

$4.69

92154A

BOLT,SOCKET,8X30

92154-1865

$4.69

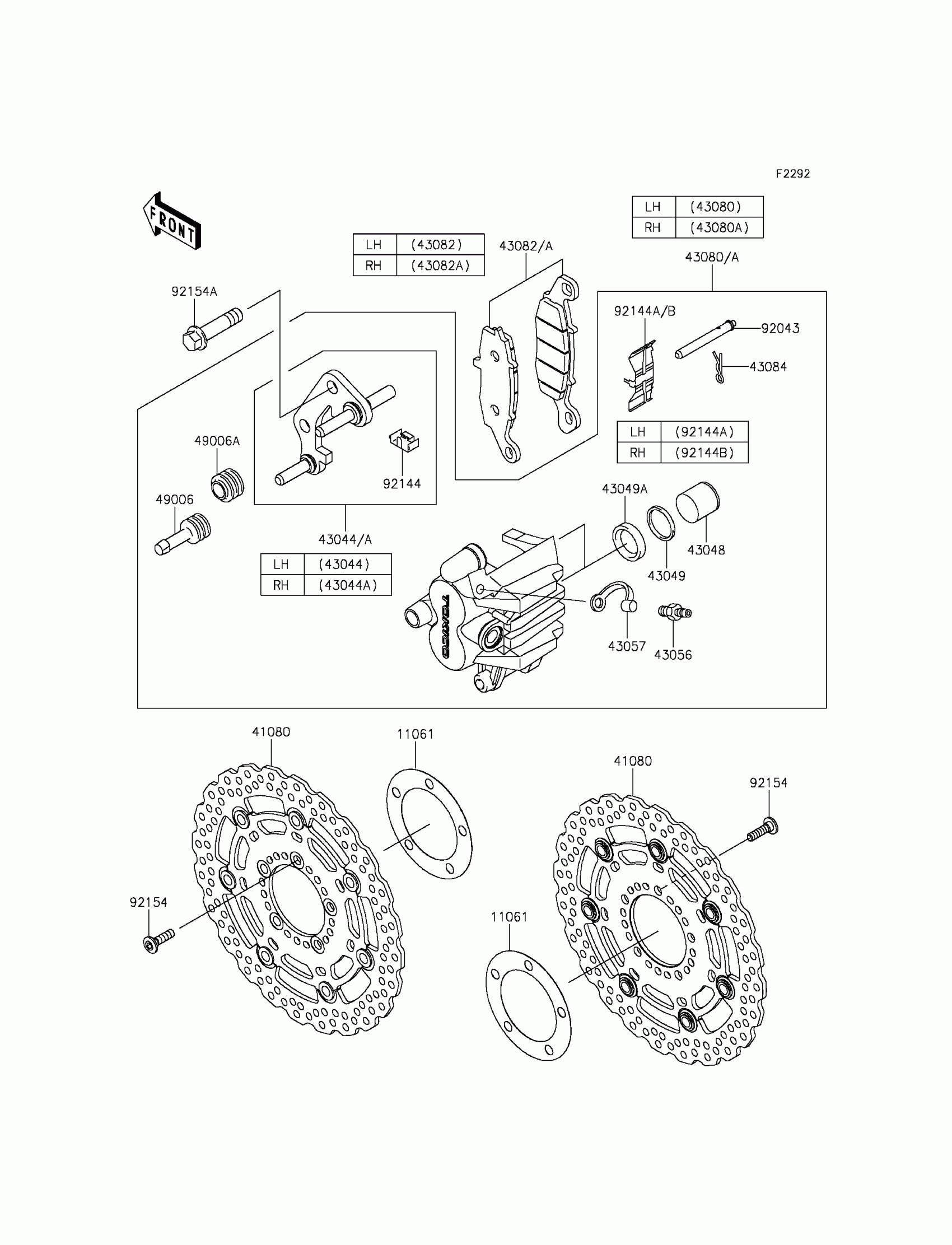

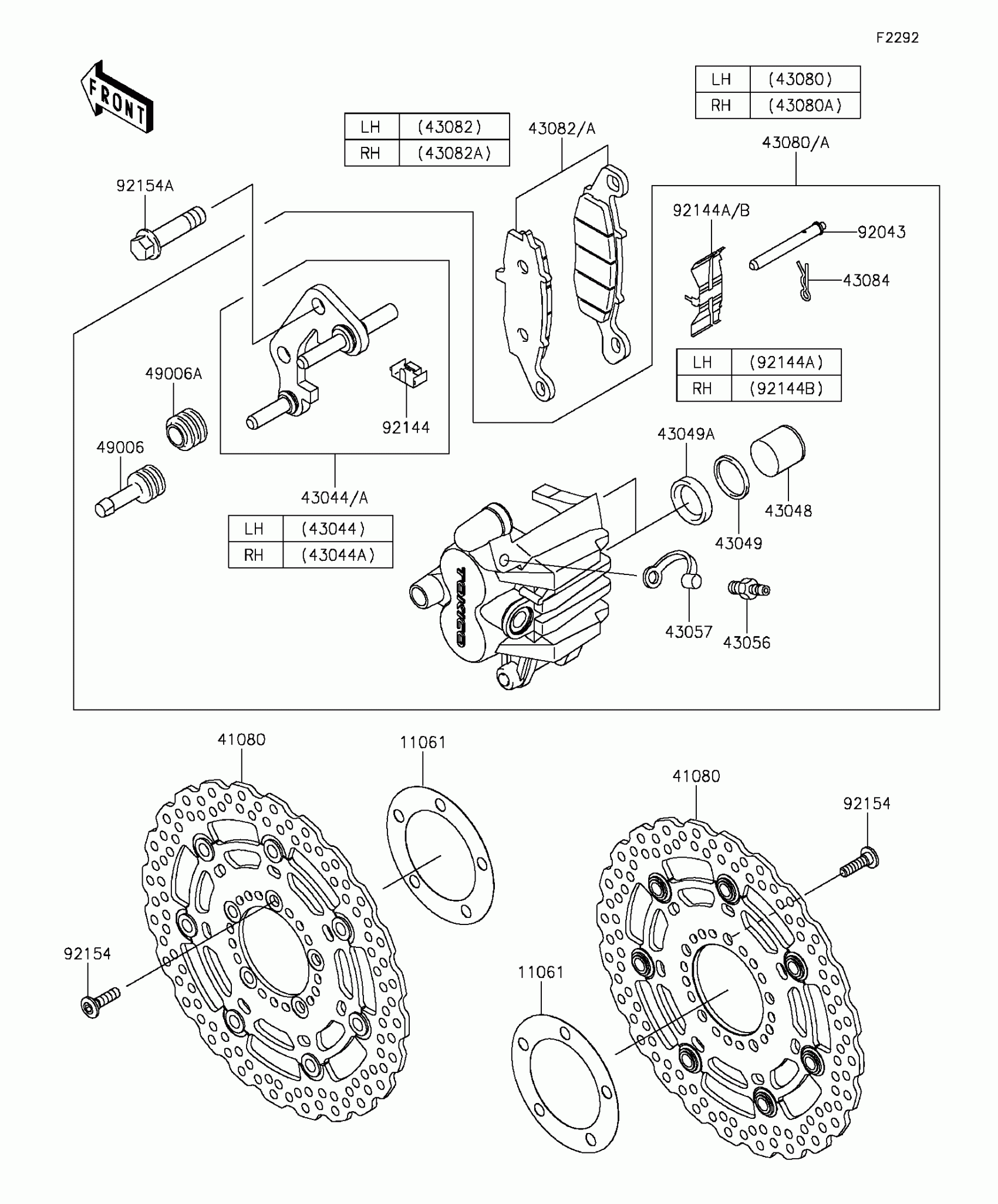

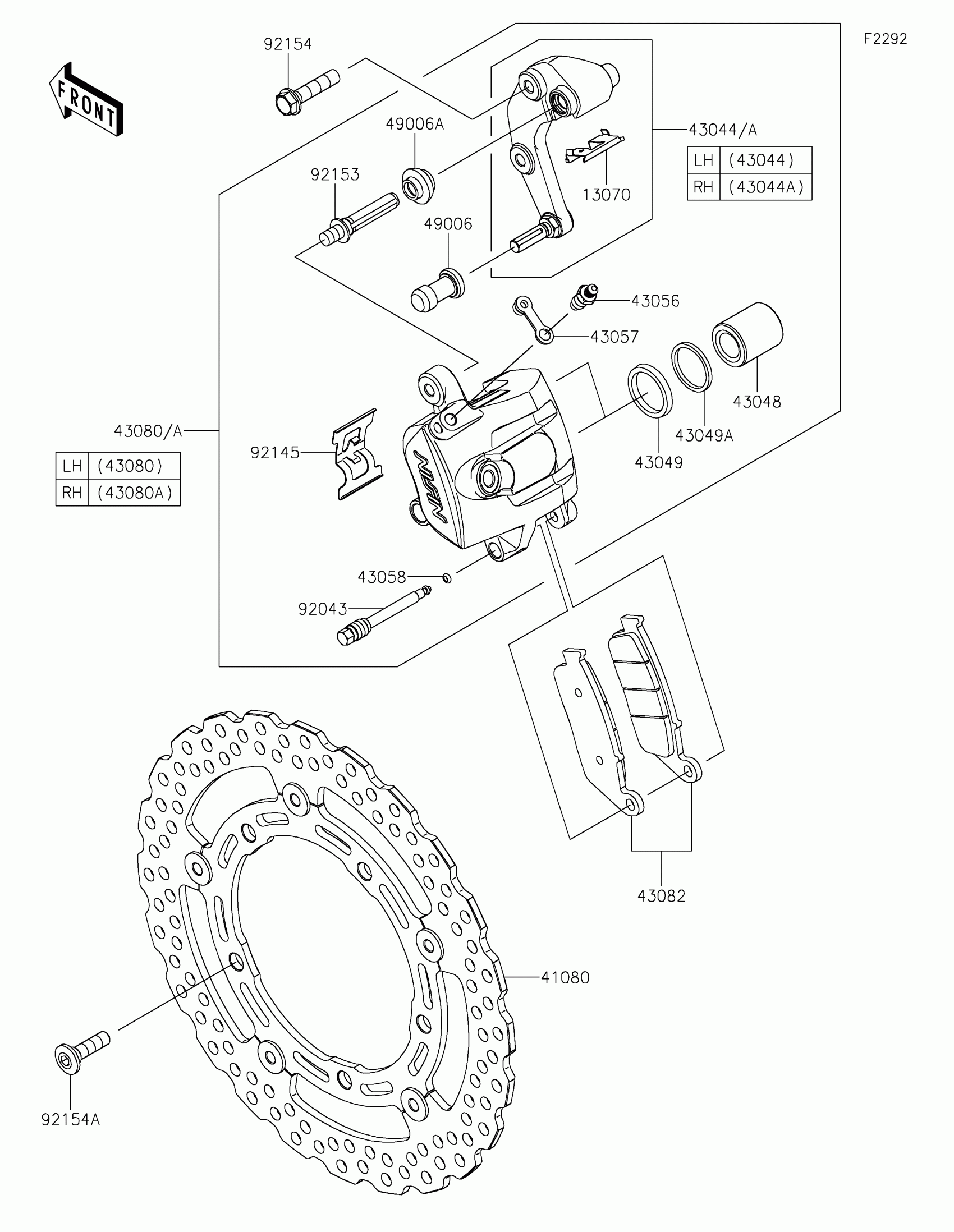

Kawasaki NINJA® 650 Front Brake Diagram

GUIDE,BRAKE PAD

DISC,BLACK+SIL

HOLDER-COMP-CALIPER,FR,LH

HOLDER-COMP-CALIPER,FR,RH

PISTON-CALIPER

PACKING,PISTON SEAL

PACKING,PISTON SEAL

BREATHER

CAP-BREATHER

RING,STOPPER

CALIPER-SUB-ASSY,FR,LH,BLACK

CALIPER-SUB-ASSY,FR,RH,BLACK

PAD-ASSY-BRAKE

BOOT,CALIPER

BOOT,CALIPER

PIN,HANGER

SPRING,PAD

BOLT

BOLT,FLANGED,8X35

BOLT,SOCKET,8X30
