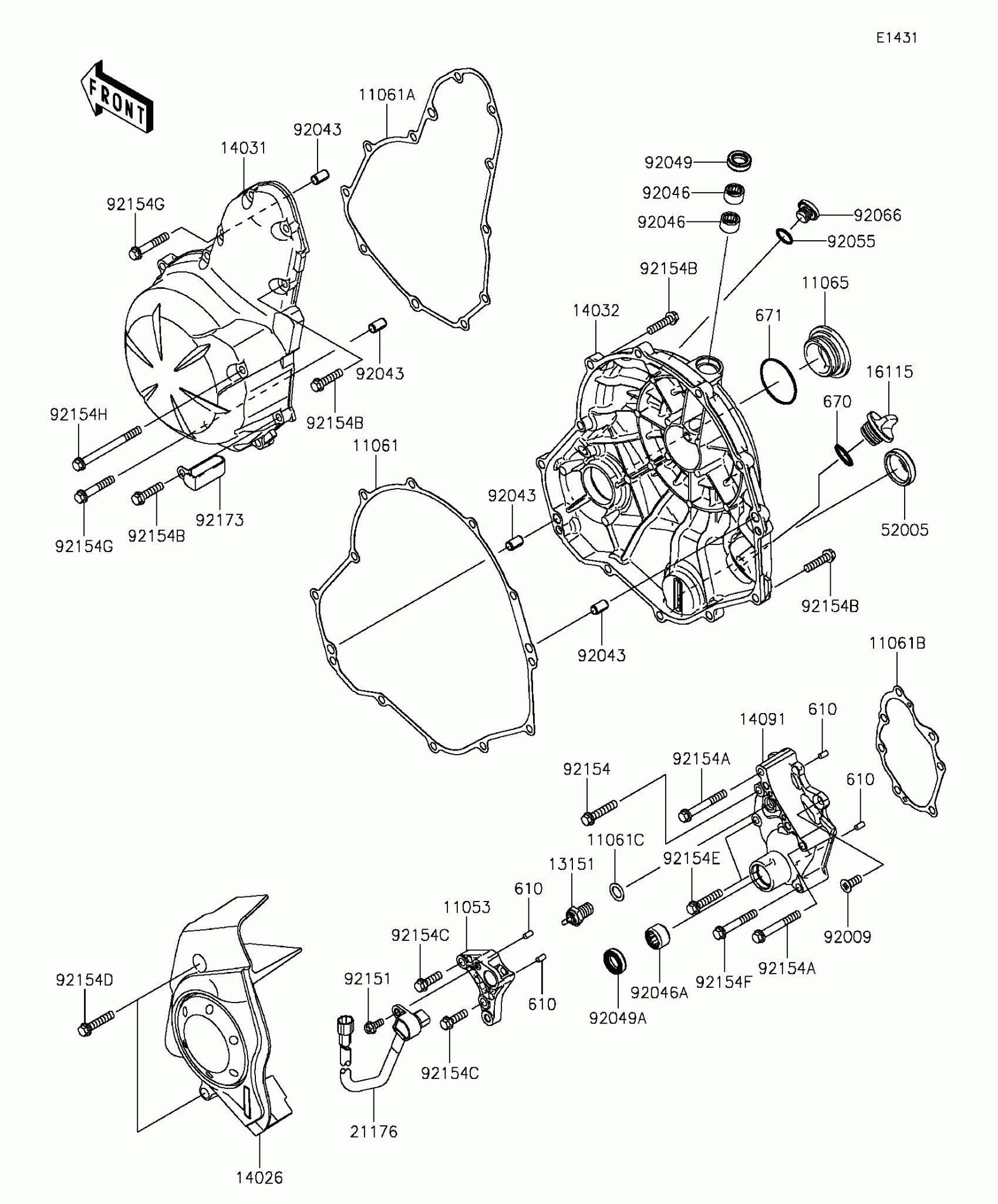

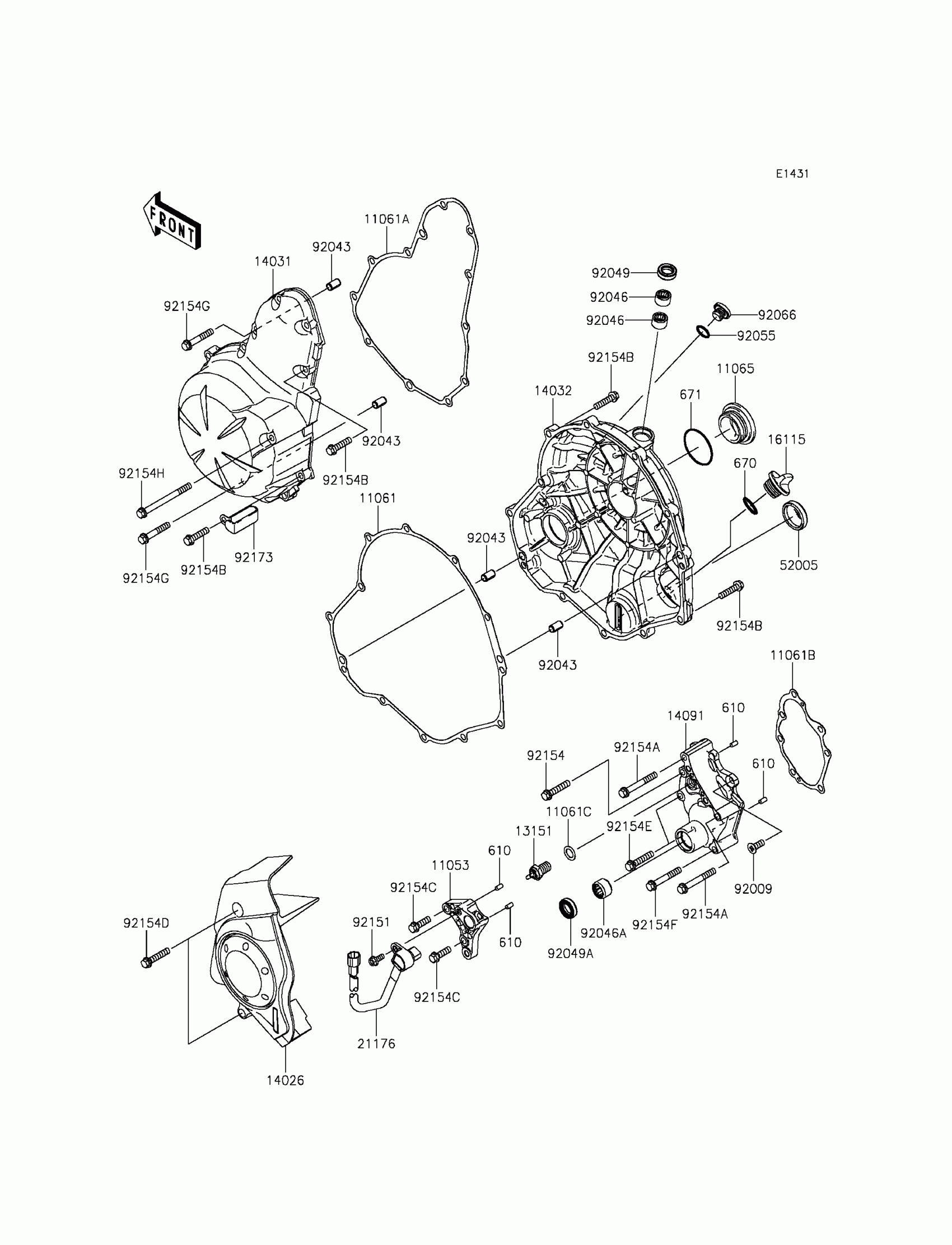

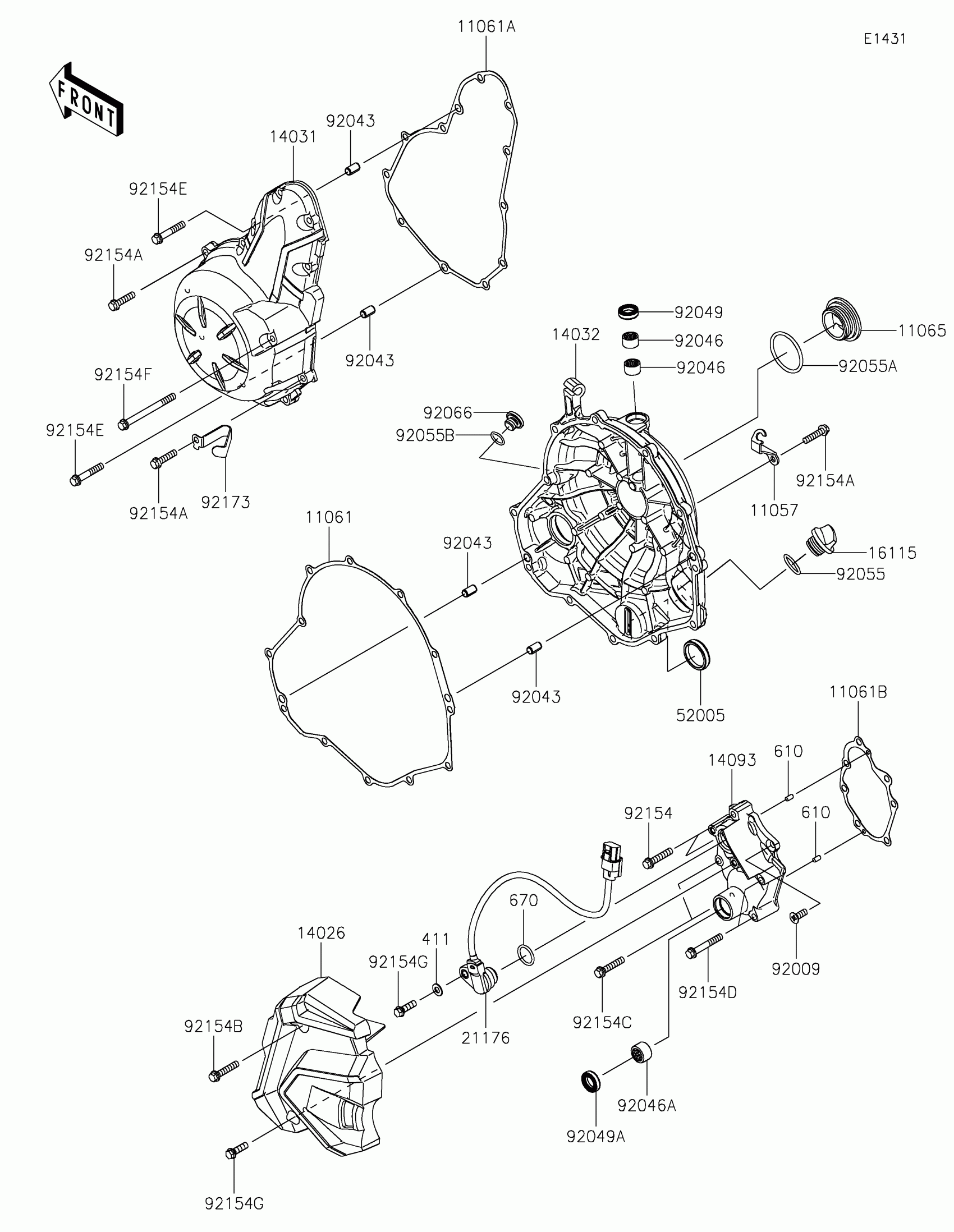

Kawasaki Ninja® 650 Engine Cover(s) Diagram

#

Description
Price

11053

BRACKET

11053-1739

$28.52

11061

GASKET,CLUTCH COVER

11061-0164

$21.49

11061A

GASKET,GENERATOR COVER

11061-0165

$12.86

11061B

GASKET,TRANSMISSION COVER

11061-0166

$6.68

11061C

GASKET,10.5X16X1

11061-0373

$3.67

11065

CAP

11065-0281

$36.52

13151

SWITCH-COMP,NEUTRAL

13151-1102

Unavailable

14026

COVER-CHAIN

14026-0092

$73.03

14031

COVER-GENERATOR

14031-0096

$119.34

14032

COVER-CLUTCH

14032-0115

$189.25

14091

COVER,TRANSMISSION

14091-1673

$78.10

16115

CAP-OIL FILLER

16115-1053

$12.20

21176

SENSOR,SPEED

21176-0065

$131.52

52005

GAUGE,OIL LEVEL

52005-0071

$25.24

92009

SCREW,6X16

92009-1360

$4.31

92043

PIN,6.2X8X14

92043-1263

$0.43

92046

BEARING-NEEDLE,HK1210FM

92046-0034

$15.63

92046A

BEARING-NEEDLE,HK1312

92046-1148

$18.74

92049

SEAL-OIL,CLUTCH RELEASE

92049-1475

$4.18

92049A

SEAL-OIL,TC13225.5

92049-1519

$13.55

92055

RING-O,13.0X1.9

92055-1011

$7.62

92066

PLUG,12X9.1

92066-0131

$14.94

92151

BOLT,FLANGED,5X12

92151-1305

$1.59

92154

BOLT,FLANGED,6X30

92154-0727

$3.02

92154A

BOLT,FLANGED,6X45

92154-0728

$3.39

92154B

BOLT,FLANGED,6X25

92154-0819

$2.32

92154C

BOLT,FLANGED,6X20

92154-1771

$0.63

92154D

BOLT,FLANGED,6X30

92154-1772

$1.19

92154E

BOLT,FLANGED,6X30

92154-1773

$1.19

92154F

BOLT,FLANGED,6X40

92154-1774

$1.48

92154G

BOLT,FLANGED,6X35

92154-1779

$1.71

92154H

BOLT,FLANGED,6X70

92154-1780

$2.26

92173

CLAMP

92173-0725

$4.13

610

ROLLER,4X8

610A0408

$4.31

670

O RING,20MM

670B2020

$1.22

671

O RING,40MM

671B2540

$6.22
