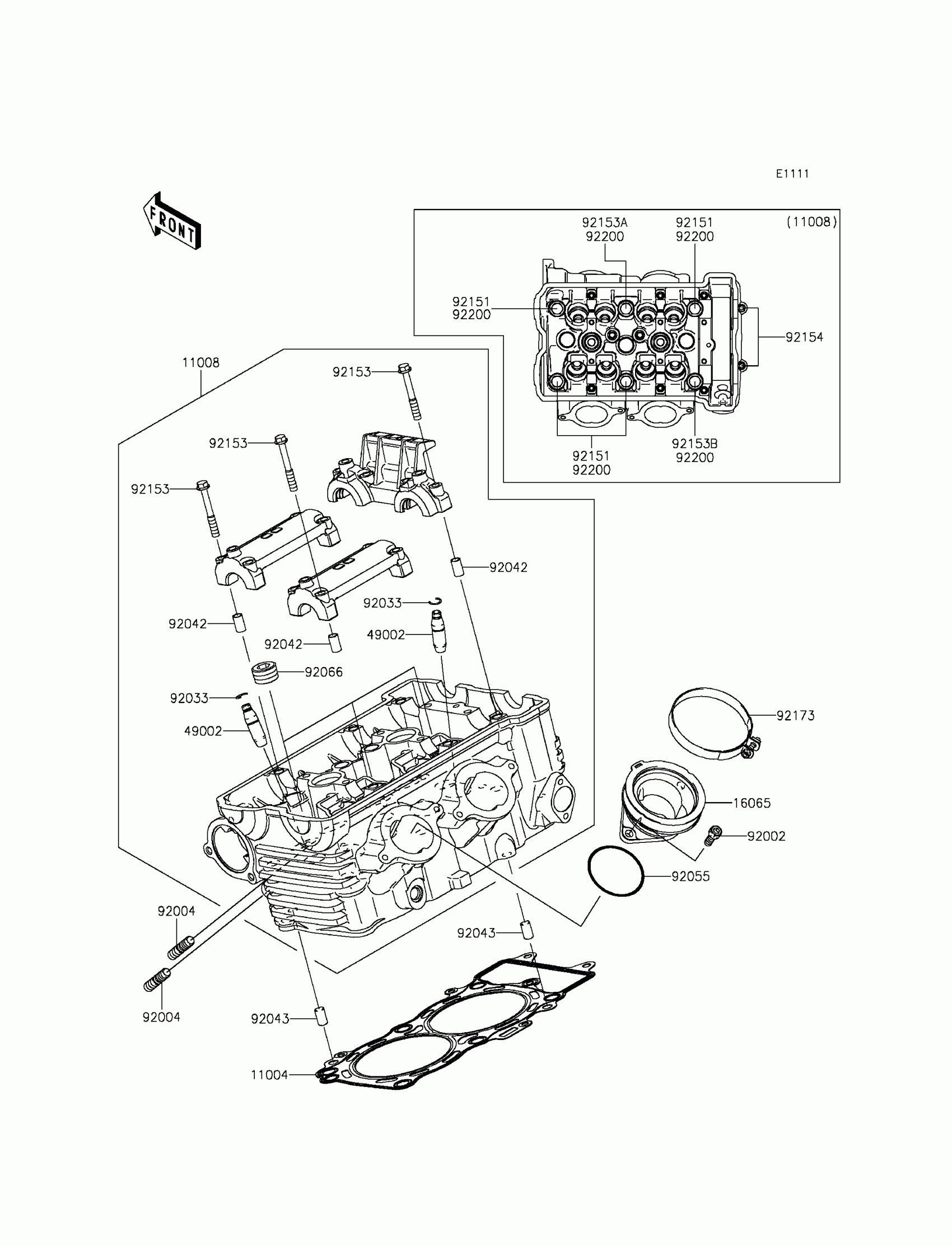

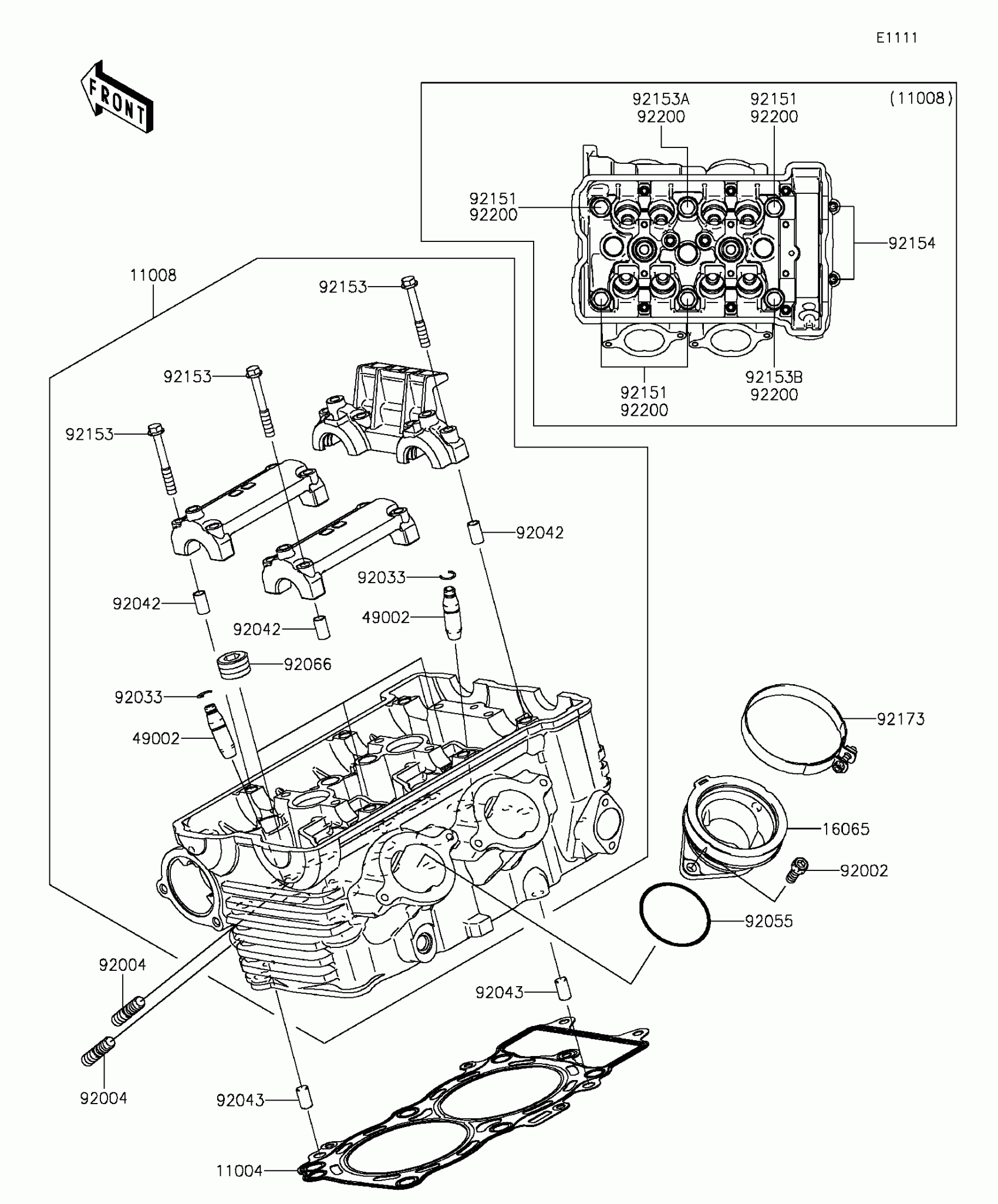

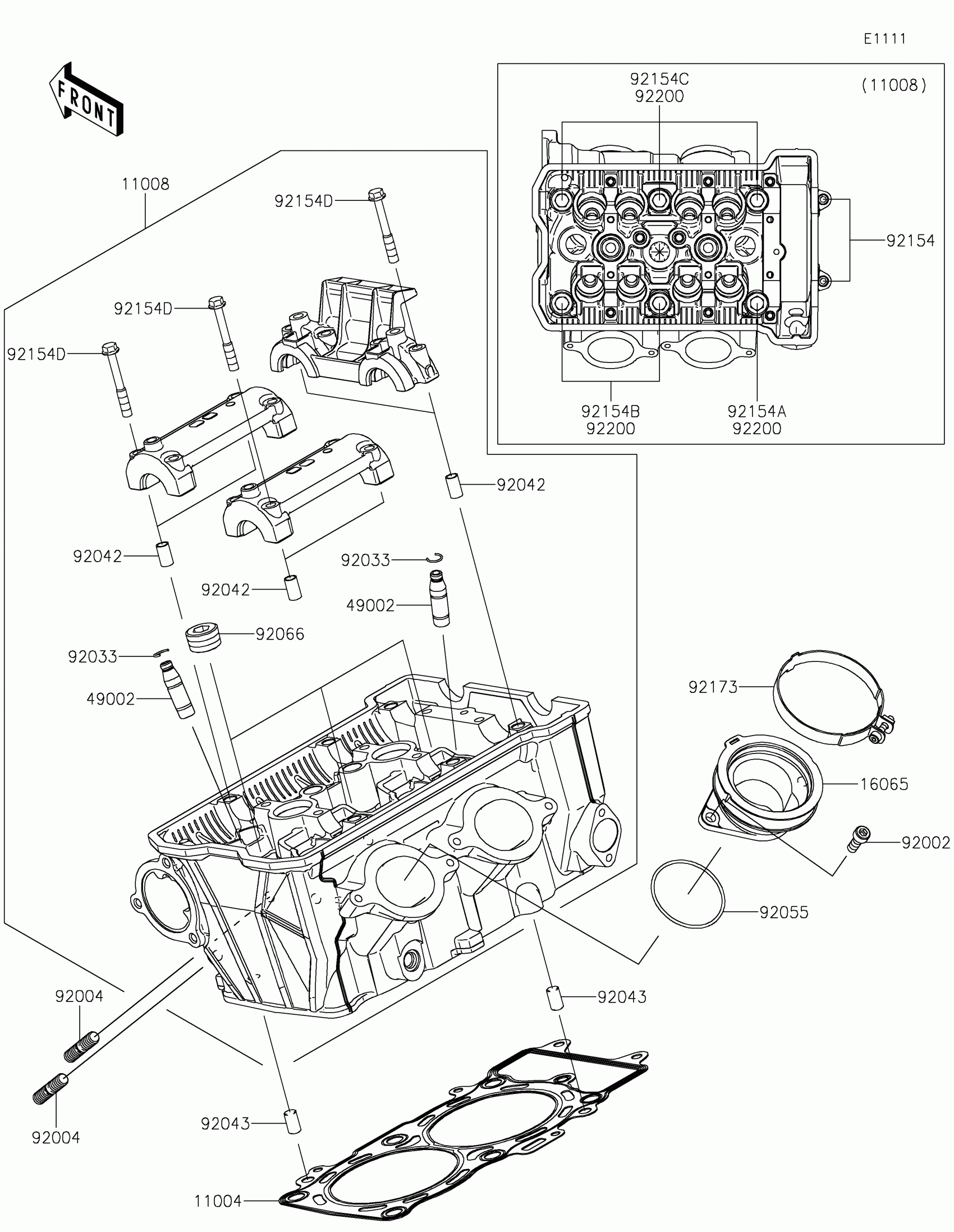

Kawasaki NINJA® 650 Cylinder Head Diagram

Description

Price

11004

GASKET-HEAD

11004-0763

$77.19

11008

HEAD-COMP-CYLINDER

11008-0976

$1,726.62

16065

HOLDER-CARBURETOR

16065-0131

$37.16

49002

GUIDE-VALVE

49002-0039

$32.48

92002

BOLT,6X16

92002-1143

$3.92

92004

STUD,8X22

92004-0025

$3.87

92033

RING-SNAP

92033-1247

$3.91

92042

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92043

PIN,8X14

92043-1567

$2.26

92055

RING-O,47X1.9

92055-1600

$9.19

92066

PLUG,PT1/2X12.5

92066-0002

$8.98

92154

BOLT,SOCKET,6X30

92154-0116

$2.95

92154A

BOLT,FLANGED,10X100

92154-2363

$21.84

92154B

BOLT,FLANGED,10X158

92154-2364

$27.19

92154C

BOLT,FLANGED,10X176

92154-2365

$28.56

92154D

BOLT,FLANGED,6X45

92154-3737

$1.42

92173

CLAMP

92173-0239

$13.49

92200

WASHER,10.5X19X2.3

92200-0257

$1.78
